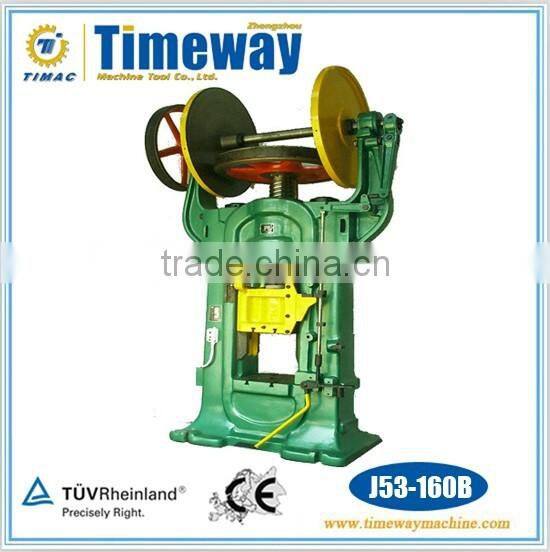

Mechanical Double Disc Friction Screw Press (Pedal Device)
- 700 Set / Sets per Month
- China Port
- T/T
- high quality Cr-V joint impact sockets
- 3/8" Dr Good quality socket wrench
- Flexible Packing Foil, Double Zero aluminum foil
- blister packaging pills foil, double light foil, 8011 aluminum foil
- gutkha paper, aluminum foil for distributors, pharmaceutical foil
- aluminum foil for distributors, pharmaceutical foil
Product Details
Condition: | New | Brand Name: | TIMAC | Model Number: | J53-160B |
Voltage: | 3 Phase 380V 10%/50-60Hz | Power(W): | 11kw | Dimension(L*W*H): | 1465*2240*3730mm |
Weight: | 8186kg | Certification: | CE ISO9001 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Pedal Device Mechanical Double Disc Friction Screw Press
J53-160B J53 Series
Performance and Feature
- The series friction screw press is suitable for die forging, extruding, cutting edge, bending of nonferrous and ferrous metal.
- The press, with simple in constructure, large energy, low noise, long life, safe and reliable in operation, convenient service etc.
- The machine tool can be widely used in aviation, auto, tractor, tool manufacturing, texitile machinery industries etc. Among them, model JA-53-300 has won the silver medal in china.
Model | Nominal capacity KN | Energy KJ | Slide stroke mm | Strokes per minute Min-1 | Space for installing die mm | Bed dimension mm | Bottom of slide mm | Overall dimensions mm | Main motor power kw | Total weight kg |
JA-53-63 | 630 | 2.25 | 200 | 35 | 235 | 315*270 | 275*227 | 1010*1141*2655 | 5.5 | 2490 |
J53-100 | 1000 | 5 | 310 | 19 | 220 | 500*450 | 390*280 | 1393*1884*3375 | 7.5 | 5743 |
J53-160B | 1600 | 10 | 360 | 17 | 260 | 560*510 | 440*444 | 1465*2240*3730 | 11 | 8186 |
J53-300B | 3000 | 20 | 400 | 15 | 300 | 650*570 | 520*485 | 1820*2581*4345 | 22 | 13921 |
J53-400B | 4000 | 40 | 500 | 14 | 400 | 820*730 | 636*636 | 3200*2812*5165 | 30 | 22000 |
J53-630B | 6300 | 80 | 600 | 11 | 470 | 920*820 | 760*700 | 4694*4320*6060 | 55 | 38513 |
J53-1000C | 10000 | 160 | 700 | 10 | 500 | 1200*1000 | 1190*800 | 4400*6062*7290 | 90 | 82000 |
J53-1000K | 10000 | 160 | 700 | 10 | 500 | 1200*1000 | 1190*800 | 4400*5240*7300 | 90 | 76155 |
J53-1600C | 16000 | 280 | 700 | 10 | 550 | 1250*1100 | 1000*900 | 4700*6120*8090 | 132 | 103386 |
J53-1600D | 16000 | 280 | 700 | 10 | 550 | 1250*1100 | 1000*900 | 4700*6120*8090 | 75*2 | 104850 |
J53-2500E | 25000 | 500 | 800 | 9 | 680 | 1560*1200 | 1560*1060 | 5360*7000*8190 | 110*2 | 213000 |
J53-3150A | 31500 | 700 | 800 | 9 | 800 | 2000*1300 | 1900*1110 | 7000*5400*10210 | 160*2 | 350000 |
J53-4000 | 40000 | 850 | 800 | 9 | 800 | 2350*1300 | 2200*1110 | 7961*5580*10210 | 185*2 | 380000 |
J53-6300 | 63000 | 1000 | 800 | 9 | 800 | 2350*1300 | 2200*1110 | 8366*5780*10490 | 185*2 | 420000 |
J53-8000 | 80000 | 1150 | 800 | 8 | 800 | 2350*1300 | 2200*1110 | 8366*5780*10490 | 185*2 | 450000 |
J53-10000 | 100000 | 1650 | 800 | 8 | 900 | 2600*1600 | 2500*1440 | 9410*6400*12750 | 280*2 | 600000 |
JA53-63 Manual double disk friction screw press, J53 series have the same structure and functions.
The machine tool adopts China famous brand 3Phase main motor, driving double disc transfer power to screw, then realize slide up and down moving. The base of motor is adjustable, low noise, running stable. As well as equipped with protection guard.
Slide and Screw
The press uses the connection of precision screw and copper nut, it has good performance, wear-resisting, long service life, etc, the handle operates flexible, equipped with mechanical brake device.
Worktable with knock-out device and Electrical box(380V/50HZ or according to customer's require)
Standard Operation instruction in English and Brand of Timeway
Standard accessories and easy-wear parts. Accessory case and Soft package of the machine tool, if you have special need, we can provide other accessories and package.
