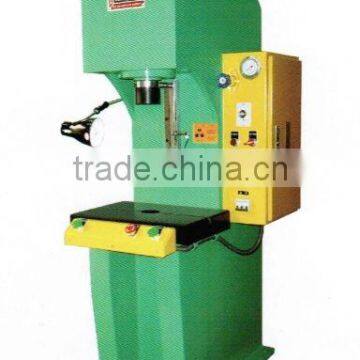

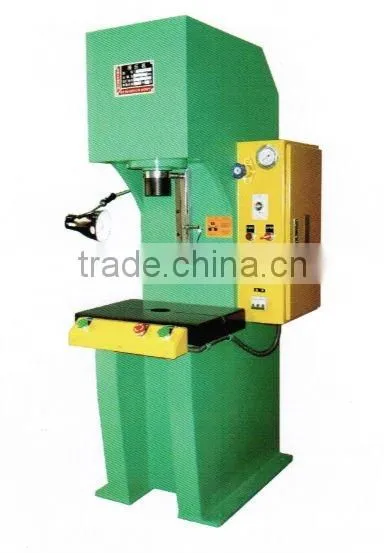

Hydraulic C-frame Press YC63T, YC80T

Name: Hydraulic C-frame Press YC63T, YC80T
Brand: TIMAC
SKU: 140797664
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 5,000 - 15,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Henan, China

Brand Name:

TIMAC

Model Number:

YC63T, YC80T, YC100T

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name TIMAC

Model Number YC63T, YC80T, YC100T

Condition New

Hydraulic C-frame Press

Single-column hydraulic press

Features:

1. The single-column hydraulic press machine is a kind of medium hydraulic press with multifuctions.

2. It suitable for the calibration of the parts like bearings and moulding materials, and for the arber of parts like bearings and sleeves.

3. It can complete the technology function of bending, marking and shelling of plate material parts, and the function of stretching of simple parts.

4. It can also be used to press powder and plastic products which the requirements are not strict.

Specifications		Unit	YC63T	YC80T	YC100T
Nominal force		KN	630	800	1000
The max. working pressure of the fluid		Mpa	24.3	25.8	25.8
The max. distance between the under surface of the slipperand the surface of the working table		mm	630	800	800
The max. stroke of the slipper		mm	500	500	500
Downlink velocity of the slipper		mm/s	50	36	36
Return velocity of the slipper		mm/s	90	90	90
Throat depth		mm	350	350	350
Thre size of the working stable	Front, Rear	mm	650	650	650
Thre size of the working stable	Left, Right	mm	700	800	800
The height of the working table to the surface of the floor		mm	650	730	730
The diameter for cutting hole		mm	140	140	140
The diameter of cylinder hole		mm	180	220	220
The diameter of the center of plunger bar( hole of cross handle)		mm	40	40	40
The depth of the center of plunger bar( hole of cross handle)		mm	60	65	65
The screw thread diameter of plunger bar		mm	100	150	150
Description of oil pump		Pressur equalization variable axial plunger pump
The power for motors		kw	7.5	7.5	7.5
The configuration size of the machine tool	Front, Rear	mm	1340	1450	1450
	Left, Right	mm	800	1000	1000
	The height above the floor	mm	2500	2800	2800
Total weight(approx)		T	4	5.2	5.5
