YPH-3044 CNC High-speed Hydraulic Turret Stamping Machine/Punching Machine for Sheet Metal

CNC High-speed Hydraulic Turret Punching Machine for Sheet Metal

YPH-3044/5044  YPH-3047/5047  YPH-3048/5048  YPH-3057/5057  YPH-3058/5058

Performance and Feature

1. O-frame design.
2. Thick turret with sleeve structure.
3. Keeping-touch index tool position, patented technology of Nisshinbo.
4. Rapid loading and unloading tools.
5. Main parts (turret parts, components of index tool and reducer box, etc.) supplied by Nisshinbo company.
6. Hydraulic punch head with high speed and hydraulic system of H+L from Germany, the maximum Frequency of punching with no load reaches 1000 times/min or 600 times/min.
7. Siemens 802D CNC system.
8. Rolling function (on YPI series), four axis linkage function.

Hydraulic Ram-head
H+L hydraulic ram head from Germany, stroke can be adjusted by CNC system, and pressure is stable during the whole stroke, with overload proceccion of oil pressure, stable performance and low noise. Multi-rings turret process ensures more flexibility.

Hydraulic System

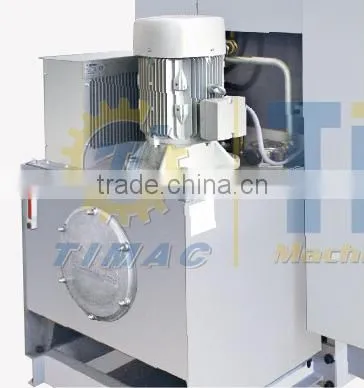

H+L hydraulic system completely from Germany, with cooling device oil temperature, low energy consumption and little volume.

Driving the Turret

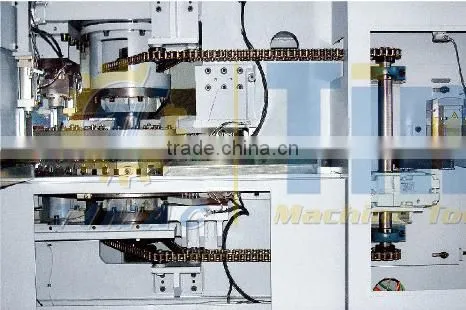

Compact structure, high precision of driving, reliable and stable.

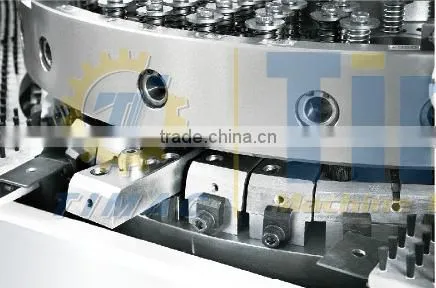

Turret and Index Tools

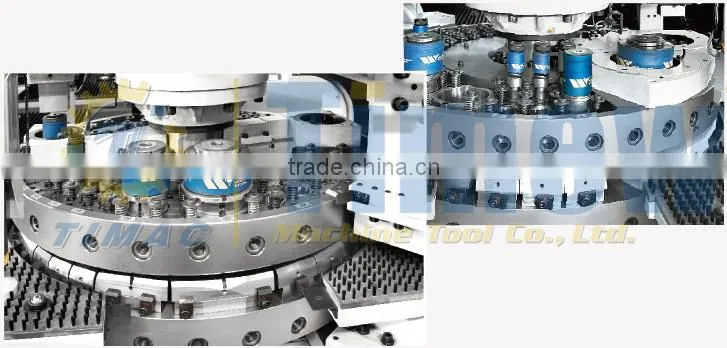

Nisshinbo supply components, thick turret structure, better guiding and higher precision. Keeping touch index tool position, higher precision and efficiency, driven bt worm and worm wheel, which is soaked in oil, less wore away and longer life.


Monitoring Device for Deformed Workpiece

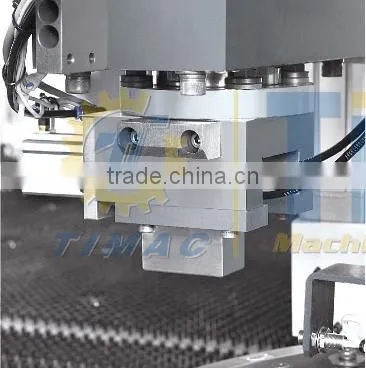

The sheet may Strike the turret if it deforms more than a certain limit. With two sides monitor switches of punching center, it will prevent striking in advance and protect both work piece and also machine.

Lower Die Rapid Unloading
Lower die rapid loading and unloading are accurate and convenient.

Material feeding structure and clamps
Long stroke precision ground ball screw, four guiding-slots linear guide, higher positioning precision, faster speed.

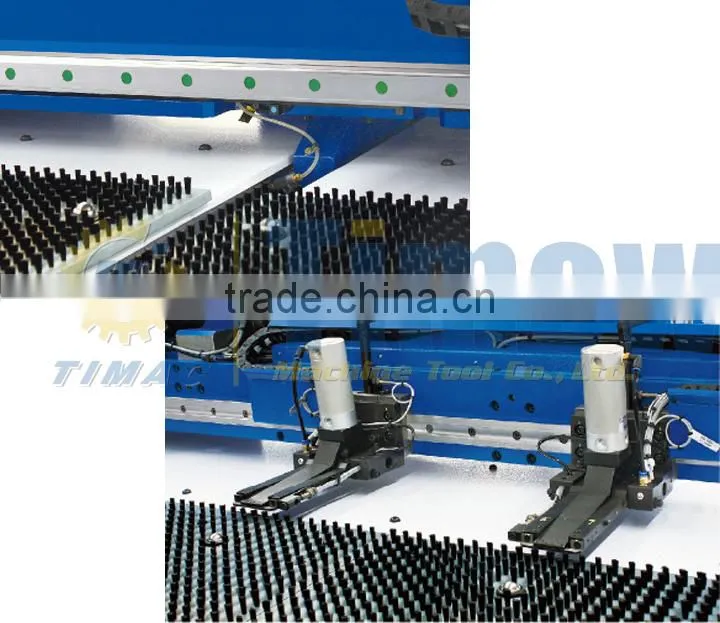

Adopt pneumatic floating clamps, high strength, stable and reliable. Equipped with lossening alarm to ensure safe process.

No-punching zone detection cells
Provides overall protection to the clamps. Protects the clamps from striking or being punched when manually moved to this critical area or in case of a software protection failure.

Standard brush worktable with steel balls

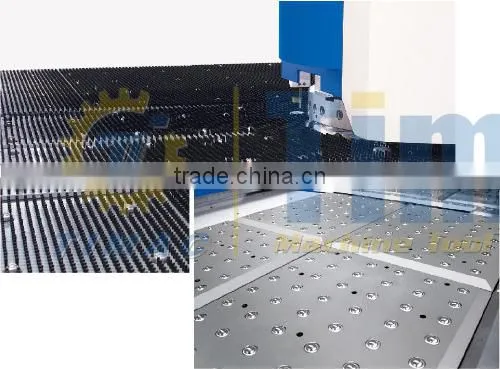

Adopt high density soft brush, ensure the material move stably, low moise, reduce scratching, equipped with steel balls, prolonging the service life.
Steel ball worktable is more suitable for steel plate thicker than 3.5mm(optional).

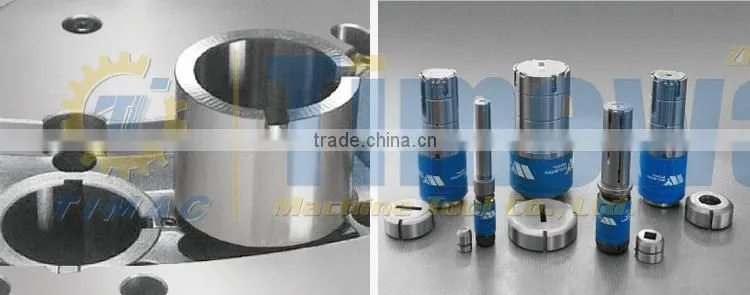

Hardened die bushings

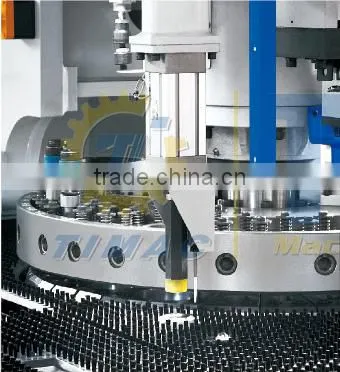

Turret head adopts a sleeve structure, prolonging the service life, the die bushings have a harder surface, guaranteeing better resistance to wear and easier interchange.

Tools
Thcik turret series tools have more guiding length. The tools also have a harder surface and better wear resistance. It can be used for several type of applications such as punching, overturning and edge knurling.

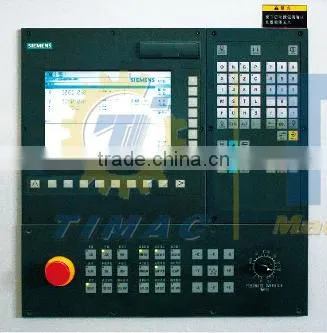

CNC system
World top-class Siemens CNC system. ensure precise control and smooth, reliable movement (Optional: Fanuc CNC system).
Main configuration and functions(Siemens CNC system):

· Display 10.4" true color, multi language.
· CPU 233MHZ/400MHZ
· Operating system: Linux/Windows
· I/O interface: RS232, 100M ethernet, USB interface, CF card slot.
· Ram 1 G/40 G
· Good expandability
· Efficient and flexible

Technical Parameters
