High Quality Oil Drill Pipe (Oil Tube)

High Quality Oil Drill Pipe (Oil Tube) thumbnail-1

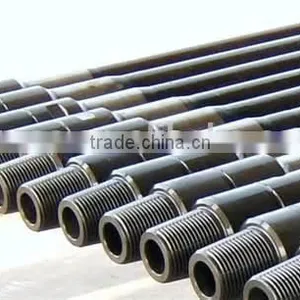

High Quality Oil Drill Pipe (Oil Tube) thumbnail-2
High Quality Oil Drill Pipe (Oil Tube) thumbnail-3

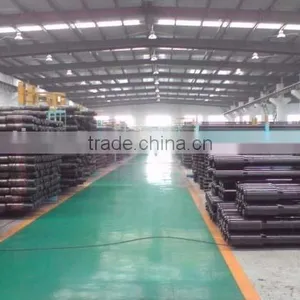

High Quality Oil Drill Pipe (Oil Tube) thumbnail-4
High Quality Oil Drill Pipe (Oil Tube) photo-1

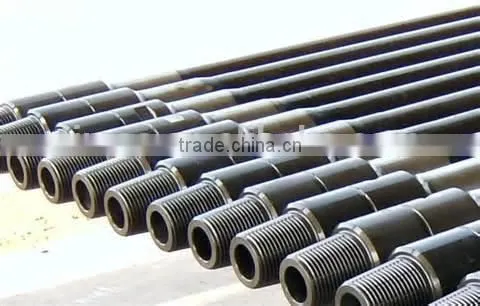

High Quality Oil Drill Pipe (Oil Tube) photo-2

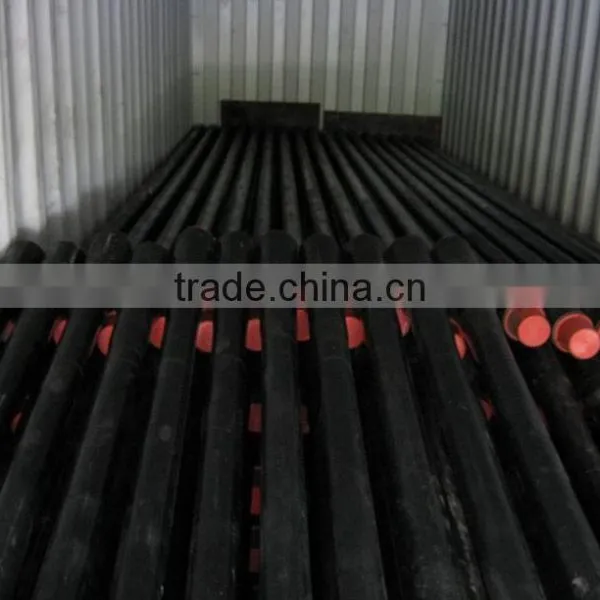

High Quality Oil Drill Pipe (Oil Tube) photo-3

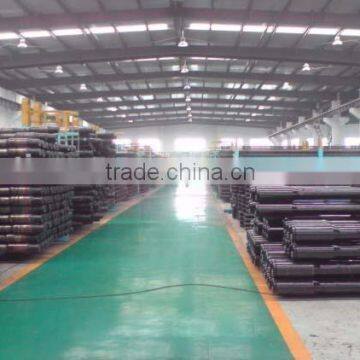

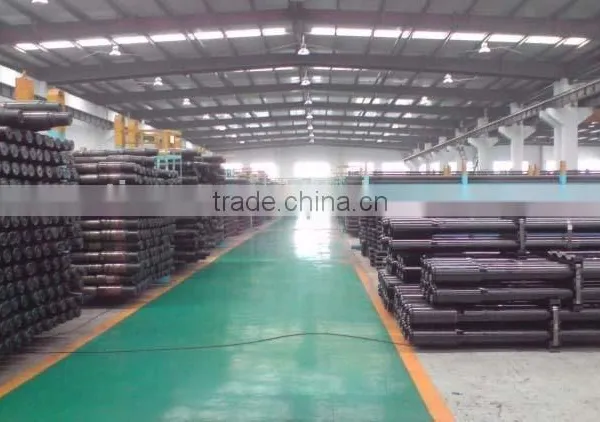

High Quality Oil Drill Pipe (Oil Tube) photo-4
US$ 1,000 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
TIMAC
Model Number:
Z09
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TIMAC
Model Number Z09

High Quality Drill Pipe For Oil-Field

Z09 Series

Main Outlook

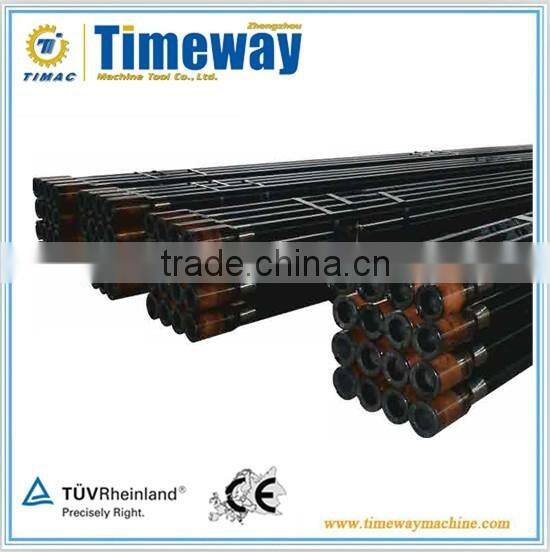

 High Quality Oil Drill Pipe (Oil Tube)



Summary



Summary

  • Our factory can provide a complete line of drill string products, including a full range of jointed drill pipe in nominal sizes from 2-3/8" to 6-5/8" and in a wide range of wall thicknesses.
  • The drill pipe with a strict quality control regimen from initial materials selection to final inspection, we ensure that each joint of drill pipe meets your needs for durability adn performance.
Specifications List



Specifications -- Drill Pipe

Size

Product Code

Weight

Designation

Plain-end

Weight(Wpe)

Outside Diameter(D)

Wall Thickness(T)

Grade

Upset Ends,

for weld-on tool joints

lb/ft

kg/m

in

mm

2 3/8

Z09-01000

6.65

6.27

9.33

2.375

60.3

0.28

7.11

E,X,G,S

Ext. Upset

2 7/8

Z09-02000

10.4

9.72

14.47

2.875

73

0.362

9.19

E,X,G,S

Int. Upset or Ext. Upset

3 1/2

Z09-03000

9.5

8.81

13.12

3.5

88.9

0.254

6.45

E

Int. Upset or Ext. Upset

3 1/2

Z09-03001

13.3

12.32

18.34

3.5

88.9

0.368

9.35

E,X,G,S

Int. Upset or Ext. Upset

3 1/2

Z09-03002

15.5

14.64

21.79

3.5

88.9

0.449

11.4

E

Int. Upset or Ext. Upset

3 1/2

Z09-03003

15.5

14.64

21.79

3.5

88.9

0.449

11.4

X,G,S

Ext. Upset or Int.-Ext. Upset

4

Z09-04000

14

12.95

19.27

4

101.6

0.33

8.38

E,X,G,S

Int. Upset or Ext. Upset

4 1/2

Z09-05000

13.75

12.25

18.23

4.5

114.3

0.271

6.88

E

Int. Upset or Ext. Upset

4 1/2

Z09-05001

16.6

15

22.32

4.5

114.3

0.337

8.56

E,X,G,S

Ext. Upset or Int.-Ext. Upset

4 1/2

Z09-05002

20

18.71

27.84

4.5

114.3

0.43

10.92

E,X,G,S

Ext. Upset or Int.-Ext Upset

5

Z09-06000

16.25

14.88

22.16

5

127

0.296

7.52

X,G,S

Int. Upset

5

Z09-06001

19.5

17.95

26.7

5

127

0.362

9.19

E

Int.-Ext. Upset

5

Z09-06002

19.5

17.95

26.7

5

127

0.362

9.19

X,G,S

Ext. Upset or Int.-Ext. Upset

5

Z09-06003

25.6

24.05

35.8

5

127

0.5

12.7

E

Int.-Ext. Upset

5

Z09-06004

25.6

24.05

35.8

5

127

0.5

12.7

X,G,S

Ext. Upset or Int.-Ext Upset

5 1/2

Z09-07000

21.9

19.83

29.52

5.5

139.7

0.361

9.17

E,X,G,S

Int.-Ext. Upset

5 1/2

Z09-07001

24.7

22.56

33.57

5.5

139.7

0.415

10.54

E,X,G,S

Int.-Ext. Upset

6 5/8

Z09-08000

25.2

22.21

33.04

6.625

168.3

0.33

8.38

E,X,G,S

Int.-Ext. Upset

6 5/8

Z09-08001

27.72

24.24

36.06

6.625

168.3

0.362

9.19

E,X,G,S

Int.-Ext. Upset



Detailed Images



In our factory, we can produce special-use machine tools for oil-field, Including CNC or Non-CNC Oil Country Lathe(Pipe Thread Lathe), CNC or Non-CNC Deep Hole Boring and Drilling Machine, CNC Deep Hole Honing Machine, etc.



Oil Pipe Thread Lathe

High Quality Oil Drill Pipe (Oil Tube)


Deep Hole Machine

High Quality Oil Drill Pipe (Oil Tube)

Company Information



High Quality Oil Drill Pipe (Oil Tube)High Quality Oil Drill Pipe (Oil Tube)

Certifications



High Quality Oil Drill Pipe (Oil Tube)
