Oil-Field Drilling Spiral Drill Collar

Zhengzhou Timeway Machine Tool Co., Ltd.
Oil-Field Drilling Spiral Drill Collar thumbnail-1
Oil-Field Drilling Spiral Drill Collar thumbnail-2
Oil-Field Drilling Spiral Drill Collar thumbnail-3
Oil-Field Drilling Spiral Drill Collar thumbnail-4
Oil-Field Drilling Spiral Drill Collar thumbnail-5
Oil-Field Drilling Spiral Drill Collar photo-1
Oil-Field Drilling Spiral Drill Collar photo-2
Oil-Field Drilling Spiral Drill Collar photo-3

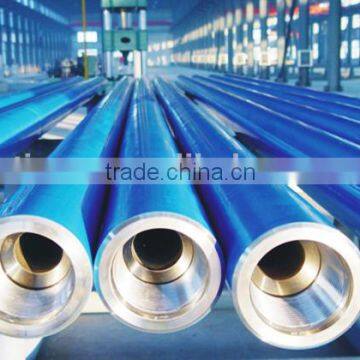

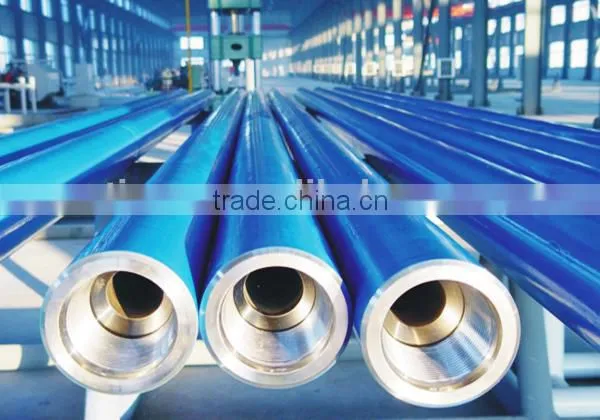

Oil-Field Drilling Spiral Drill Collar photo-4
Oil-Field Drilling Spiral Drill Collar photo-5
US$ 1,000 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
TIMAC
Model Number:
Z01 and Z02
Type:
Drill Collar
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TIMAC
Model Number Z01 and Z02
Type Drill Collar
Machine Type Drilling Equipment
Certification API
Material Other, Alloy steel
Processing Type Forging
Use Other, Oil Field

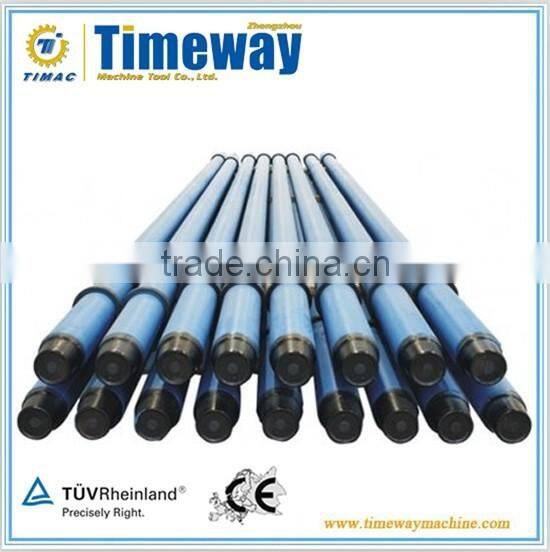

Oil-Field Drilling Spiral Drill Collar

Z01 Series    Z02 Series

Main Outlook



Oil-Field Drilling Spiral Drill Collar  Oil-Field Drilling Spiral Drill Collar

Summary



Summary

  • Drill collar is the basic component in the BHA which provides weight on the bit for drilling and keeps the drillsting in tension.
  • Drill collar has been approved by the NS-1 certification, it is manufactured from 4145H modified quenched and tempered steel, strict metallurgical specifications are followed to insure that full length heat treating produces a consistent maximum depth of hardness.
Product Description



Features and Benefits

  • A hardness range of 285 to 341 BHN and a charpy impact value of 40 ft-lbs are guaranteed at evently distributed 16 points in any sections at room temperature;
  • Connections are completed (phosphate coated) to protect them from the elements after machining and to help prevent galling upon initial make-up;
  • Thread roots are cold rolled on API and H-90 connections;
  • Pressed steel thread protectors are supplied for all drill collar that are equipped with standard connections.


When Ordering Please Specify:

  • Drill collar O.D. and I.D.
  • Overall length;
  • Connections required (size and type);
  • Special features desired, for example: Slick or Spiral; Stress Relief Features; Slip and/or Elevator Recess; Hardbanding.
Specifications List



Specifications -- Drill Collar

Number and

Connection Table

Product

Code

Outside

Diameter

Inside

Diameter

Length

Bevel

Diameter

Bending

Strength Ratio

mm

in

mm

in

mm

mm

NC23-31

Z01/Z02-01000

79.4

3 1/8

31.8

1 1/4

9150

76.2

2.57:1

NC26-35(2 3/8 IF)

Z01/Z02-02000

88.9

3 1/2

38.1

1 1/2

9150

84.5

2.42:1

NC31-41(2 7/8 IF)

Z01/Z02-04000

104.8

4 1/8

50.8

2

9150

101.6

2.43:1

NC35-47

Z01/Z02-06000

120.6

4 3/4

50.8

2

9150

114.7

2.58:1

NC38-50(31/2IF)

Z01/Z02-07000

127

5

57.2

2 1/4

9150

121

2.38:1

NC44-60

Z01/Z02-23000

152.4

6

57.2

2 1/4

9150 or 9450

144.5

2.49:1

NC44-60

Z01/Z02-23100

152.4

6

71.4

2 13/16

9150 or 9450

144.5

2.84:1

NC44-62

Z01/Z02-08000

158.8

6 1/4

57.2

2 1/4

9150 or 9450

149.2

2.91:1

NC46-62(4IF)

Z01/Z02-08100

158.8

6 1/4

71.4

2 13/16

9150 or 9450

150

2.63:1

NC46-65(4IF)

Z01/Z02-09000

165.1

6 1/2

57.2

2 1/4

9150 or 9450

154.8

2.76:1

NC46-65(4IF)

Z01/Z02-09100

165.1

6 1/2

71.4

2 13/16

9150 or 9450

154.8

3.05:1

NC46-67(4IF)

Z01/Z02-11000

171.4

6 3/4

57.2

2 1/4

9150 or 9450

159.5

3.18:1

NC50-67(41/2IF)

Z01/Z02-11100

171.4

6 3/4

71.4

2 13/16

9150 or 9450

159.5

2.37:1

NC50-70(41/2IF)

Z01/Z02-12000

177.8

7

57.2

2 1/4

9150 or 9450

164.7

2.54:1

NC50-70(41/2IF)

Z01/Z02-12100

177.8

7

71.4

2 13/16

9150 or 9450

164.7

2.73:1

NC50-72(41/2IF)

Z01/Z02-24000

184.2

7 1/4

71.4

2 13/16

9150 or 9450

169.5

3.12:1

NC56-77

Z01/Z02-13000

196.8

7 3/4

71.4

2 13/16

9150 or 9450

185.3

2.70:1

NC56-80

Z01/Z02-14000

203.2

8

71.4

2 13/16

9150 or 9450

190.1

3.02:1

6 5/8 REG

Z01/Z02-15000

209.6

8 1/4

71.4

2 13/16

9150 or 9450

195.7

2.93:1

NC61-90

Z01/Z02-16000

228.6

9

71.4

2 13/16

9150 or 9450

212.7

3.17:1

7 5/8 REG

Z01/Z02-17000

241.3

9 1/2

76.2

3

9150 or 9450

223.8

2.81:1

NC70-97

Z01/Z02-25000

247.6

9 3/4

76.2

3

9150 or 9450

232.6

2.57:1

NC70-100

Z01-Z02-18000

254

10

76.2

3

9150 or 9450

237.3

2.81:1

8 5/8 REG

Z01/Z02-19000

279.4

11

76.2

3

9150 or 9450

266.7

2.84:1



 Notes:Slips and elevator grooves can be produced upon the customers' requirement.



Detailed Images



In our factory, we can produce special-use machine tools for oil-field, Including CNC or Non-CNC Oil Country Lathe(Pipe Thread Lathe), CNC or Non-CNC Deep Hole Boring and Drilling Machine, CNC Deep Hole Honing Machine, etc.



Oil Pipe Thread Lathe

Oil-Field Drilling Spiral Drill Collar


Deep Hole Machine

Oil-Field Drilling Spiral Drill Collar
