ROTARY TABLE



Features:

1. TS..A series rotary table is one of the most important accessary of milling machine. It is widely used for index boring , milling ,circle cutting,circle curve plane and segment etc operation.
2. As a option ,different table supply different flange, flange will be packed separately .otherwise ,dividing plates which provides from the option can indexing all of the integer between 2 and 66 also can indexing the numbers between 67 and 132 which can be divided exactly by number 2 .3 and 5.



Main specification:

Specification TS160A TS200A TS250A TS320A TS400A TS500A TS630A TS800A TS1000A
Table diameter mm Φ200 Φ200 Φ250 Φ320 Φ400 Φ500 Φ630 Φ800 Φ1000
Morse taper of the center hole 2# 3# 4# 5# 6#
width of the T-slot mm 10 12 14 18 22
Adjacent angle of table T-slot 90° 60° 45°
Width of the locating key mm 12 14 18 -- -- -- --
Graduation of the table 360°
Minimum value of vernier 10"
Indexing accuracy 80" 60"
Max workload kg 100 150 200 250 300 550 700 1200 2000
Net weight Kg 16.5 22.5 33.5 65 125 215 345 800 1300
Gross weight Kg 21.5 31 44.5 76 145 238 377 855 1400
Case dimensions mm 400×330 400×360 500×400 580×480 750×616 850×730 995×900 1175×1090 1430×1224
×200 ×208 ×210 ×238 ×280 ×302 ×326 ×391 ×550



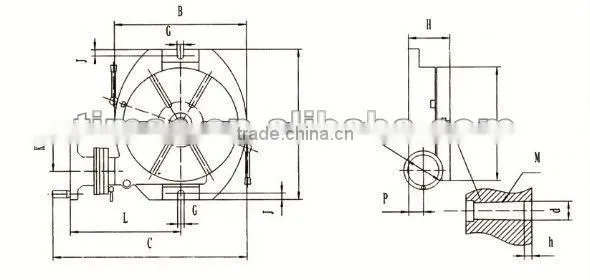

DIMENSIONAL SKETCH:

ROTARY TABLE



Installation sketch and dimensions:

Model TS160A TS200A TS250A TS320A TS400A TS500A TS630A TS800A TS1000A
A 260 290 330 410 530 640 820 1000 1170
B 196 238 286 360 450 560 700 890 1080
C 332 368 422 493 612 753 898 1080 1295
D Φ160 Φ200 Φ250 Φ320 Φ400 Φ500 Φ630 Φ800 Φ1000
G 12 14 18 22 22 --
H 75 80 90 110 140 158.5 160 215 250
J 12 14 18 22 30 --
K 76 91.25 102.5 128.5 180 230 295 364 364
L 194 211 241 273 337 383 488 535 654
M MT2 MT3 MT4 MT5 MT6
P 27 27 30.5 44 60 65 60 78 108
Q 125 160 180 220 250
d Φ25 Φ30 Φ40 Φ50 Φ50
h 6 10 12 14



Optional
Dividing plate 1 set
