Oil-Field Non-Magnetic Drill Collar

Main Outlook



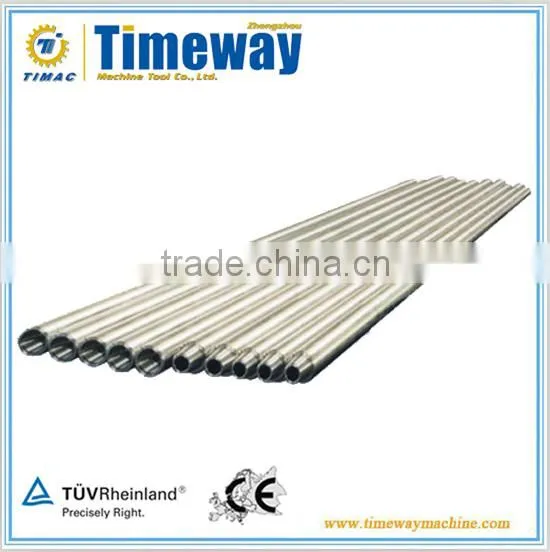

Non-Magnetic Drill Collar for Oil-Field

Summary



Summary

  • The Non-magnetic drill collars are made from non-magnetic steel bars with low-strength by combining a proprietary chemical analysis and a rotary hammer forging process with low magnetic permeability excellent machine ability, it will not interfere with the specialized directional equipment and will enhance the performance of the drilling operation.
  • Non-magnetic drill collars function as housing for the MWD tools, while at the same time provide the weight for drillstring. The non-magnetic drill collars are suitable for all types of drilling including straight and directional applications.
  • Each drill collar is fully inspected by internal inspection dept. All data obtained are recorded on the inspection certificate furnished with each drill collar. API monogram, serial number, O.D, I.D type and size of connections are stamped on recessed mill flats.

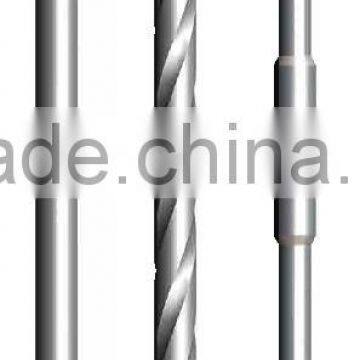

  • We can provide three type of non magnetic drill collar according to the customer's order, include slick, spiral, and flex non-mag drill collar.
Product Description



Slick Non-Mag. Drill Collar

  • The slick non-magnetic drill collar provide the required weight on bit, and will not interfere with the directional drilling ability.

Spiral Non-Mag. Drill Collar

  • The spiral non-magnetic drill collar is designed to allow greater flow area for drilling fluids, while providing the benefits of non-mag steel for complex drilling programs.

Flex Non-Mag. Drill Collar

  • The flex non-magnetic drill collar is thinner and more flexible than standard drill collar. Their ability to make short radius turns, bend for high build angles, and pass through severe doglegs makes them ideal for use in directional and horizontal applications. Manufactured with non-magnetic steel, this drill collar is well suited for housing MWD equipment.
Specifications List



Specifications -- Drill Collar

Number and

Connection Table

Product

Code

Outside

Diameter

Inside

Diameter

Length

Bevel

Diameter

Bending

Strength Ratio

mm

in

mm

in

mm

mm

NC23-31

Z01/Z02-01000

79.4

3 1/8

31.8

1 1/4

9150

76.2

2.57:1

NC26-35(2 3/8 IF)

Z01/Z02-02000

88.9

3 1/2

38.1

1 1/2

9150

84.5

2.42:1

NC31-41(2 7/8 IF)

Z01/Z02-04000

104.8

4 1/8

50.8

2

9150

101.6

2.43:1

NC35-47

Z01/Z02-06000

120.6

4 3/4

50.8

2

9150

114.7

2.58:1

NC38-50(31/2IF)

Z01/Z02-07000

127

5

57.2

2 1/4

9150

121

2.38:1

NC44-60

Z01/Z02-23000

152.4

6

57.2

2 1/4

9150 or 9450

144.5

2.49:1

NC44-60

Z01/Z02-23100

152.4

6

71.4

2 13/16

9150 or 9450

144.5

2.84:1

NC44-62

Z01/Z02-08000

158.8

6 1/4

57.2

2 1/4

9150 or 9450

149.2

2.91:1

NC46-62(4IF)

Z01/Z02-08100

158.8

6 1/4

71.4

2 13/16

9150 or 9450

150

2.63:1

NC46-65(4IF)

Z01/Z02-09000

165.1

6 1/2

57.2

2 1/4

9150 or 9450

154.8

2.76:1

NC46-65(4IF)

Z01/Z02-09100

165.1

6 1/2

71.4

2 13/16

9150 or 9450

154.8

3.05:1

NC46-67(4IF)

Z01/Z02-11000

171.4

6 3/4

57.2

2 1/4

9150 or 9450

159.5

3.18:1

NC50-67(41/2IF)

Z01/Z02-11100

171.4

6 3/4

71.4

2 13/16

9150 or 9450

159.5

2.37:1

NC50-70(41/2IF)

Z01/Z02-12000

177.8

7

57.2

2 1/4

9150 or 9450

164.7

2.54:1

NC50-70(41/2IF)

Z01/Z02-12100

177.8

7

71.4

2 13/16

9150 or 9450

164.7

2.73:1

NC50-72(41/2IF)

Z01/Z02-24000

184.2

7 1/4

71.4

2 13/16

9150 or 9450

169.5

3.12:1

NC56-77

Z01/Z02-13000

196.8

7 3/4

71.4

2 13/16

9150 or 9450

185.3

2.70:1

NC56-80

Z01/Z02-14000

203.2

8

71.4

2 13/16

9150 or 9450

190.1

3.02:1

6 5/8 REG

Z01/Z02-15000

209.6

8 1/4

71.4

2 13/16

9150 or 9450

195.7

2.93:1

NC61-90

Z01/Z02-16000

228.6

9

71.4

2 13/16

9150 or 9450

212.7

3.17:1

7 5/8 REG

Z01/Z02-17000

241.3

9 1/2

76.2

3

9150 or 9450

223.8

2.81:1

NC70-97

Z01/Z02-25000

247.6

9 3/4

76.2

3

9150 or 9450

232.6

2.57:1

NC70-100

Z01-Z02-18000

254

10

76.2

3

9150 or 9450

237.3

2.81:1

8 5/8 REG

Z01/Z02-19000

279.4

11

76.2

3

9150 or 9450

266.7

2.84:1



 Notes:Slips and elevator grooves can be produced upon the customers' requirement.



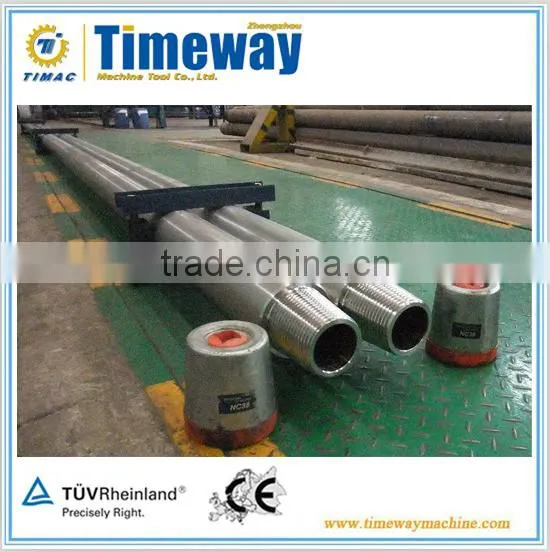

Detailed Images

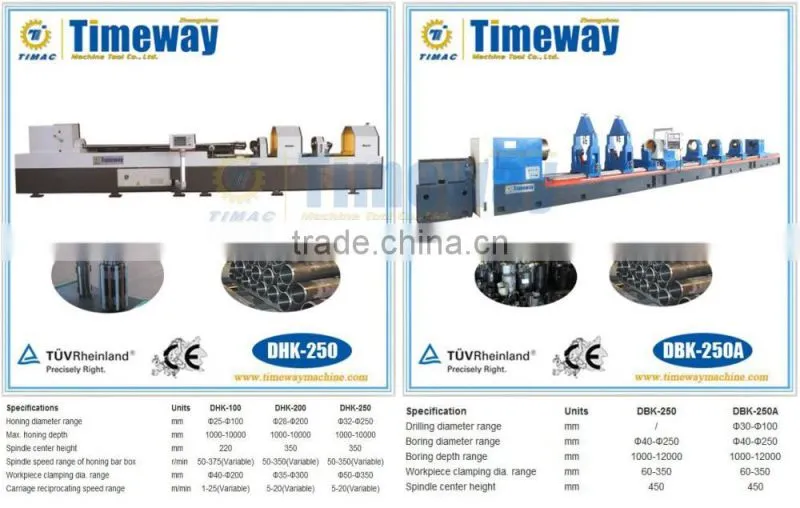

In our factory, we can produce special-use machine tools for oil-field, Including CNC or Non-CNC Oil Country Lathe(Pipe Thread Lathe), CNC or Non-CNC Deep Hole Boring and Drilling Machine, CNC Deep Hole Honing Machine, etc.

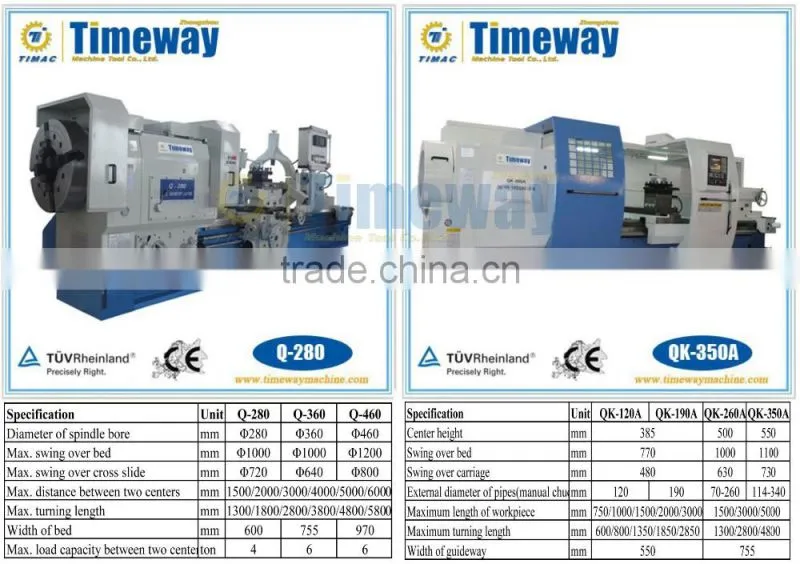

Oil Pipe Thread Lathe
