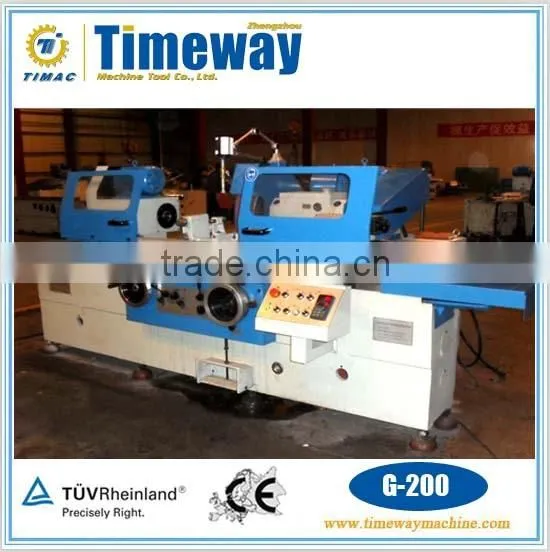

Rectificadora / Small Cylindrical Grinder / Cylindrical Grinding Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Cylindrical Grinding Machine
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Camshaft Grinding Machine ( Special-use Crankshaft Grinder Machine)US$ 10,000 - 50,000MOQ: 1 Set -
Oilstone Super Finishing MachineUS$ 1,000 - 20,000MOQ: 1 Set
-
High Precision Abrasive Belt Polishing Machine for Cam ShaftUS$ 1,000 - 20,000MOQ: 1 Set
-
CNC Horizontal Shaft Round Worktable Surface GrinderUS$ 10,000 - 100,000MOQ: 1 Set
-
Cam Shaft Belt Polishing Machine (Metal Burnishing Machine)US$ 1,000 - 20,000MOQ: 1 Set
Condition
New
Type
Cylindrical Grinding Machine
CNC or Not
Normal
Max. Grinding Diameter
320mm
Max. Grinding Length
500-3000mm
Brand Name
TIMAC
Model Number
G-200,G-320,G-320A
Voltage
as customer's request
Power(W)
5.5KW
Dimension(L*W*H)
260/300*203*205
Weight
4000KG
Certification
CE & ISO
After-sales Service Provided
Engineers available to service machinery overseas
"5-320mm" Small External Cylindrical Grinder/Grinding Machine
Product Description
Standard Accessories:
Coolant tank, wheel periphery dresser base(without diamond pen), flange and wheel extractor, Standard grinding wheel, Balancing arbor, Working lamb, Leveling edge, Open steady rest, Operation manual(English edution).
Optional Accessories:
Balance stand, Magnetic separator apparatus, Paper filter appparatus, Center grinding attachment, Close steady rest, End wheel dresser, Radius wheel dresser.
Parameter:
| Specification | Unit | G-200 | G-320 |
| *General capacity | |||
| Distance between centers | mm | 500, 750 | 1000, 1500, 2000, 3000 |
| Center height | mm | 135 | 180 |
| Dia.Ground (O.D) | mm | 5-200 | 8-320 |
| Max.Length ground(O.D) | mm | 500, 750 | 1000, 1500, 2000, 3000 |
| Max.Weight of workpiee | kg | 100 | 150 |
| * Work head | |||
| Center taper (MT) | MT | 4 | 5 |
| Spindle speed | r/min | 50HZ:25-380 Stepless | 26, 52, 90, 130, 180, 260 |
| * Wheel head | |||
| Wheel spindle speed | r/min | 1335 | 1100 |
| Wheelhead rapid travel | mm | 50 | 50 |
| Max. travel | mm | 205 | 235 |
| Hand feed per.rev | mm | rough:2, fine:0.5 | rough:2, fine:0.5 |
| Hand feed per.gra | mm | rough:0.01, fine:0.0025 | rough:0.01, fine:0.0025 |
| Wheel size (ODXWXID) | mm | 500x50x203 | 600x63x305 |
| Peripheral velocity | m/s | 35 | 35 |
| * Table | |||
| Hand feed per.rev | mm | 6 | 6 |
| Longitudinal speed range of table | m/min | 0.1-4 | 0.1-4 |
| * Tailstock | |||
| Center taper (MT) | MT | 4 | 4 |
| Quill travel | mm | 30 | 30 |
| * Motor | |||
| Wheelhead motor power | kw | 5.5 | 11 |
| Workhead motor power | kw | 0.75 | 0.75/1.5 |
| * Machine | |||
| Gross weight | T | 4 (500), 4.2 (750) | 5.3 (1000), 6.1 (1500), 7.9 (2000), 9.9 (3000) |
