Surface Grinding Machine

Name: Surface Grinding Machine
Brand: TIMAC
SKU: 140797438
Availability: InStock

US$ 1,200 - 3,500 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Surface Grinding Machine

CNC or Not:

Normal

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Surface Grinding Machine

CNC or Not Normal

Brand Name TIMAC

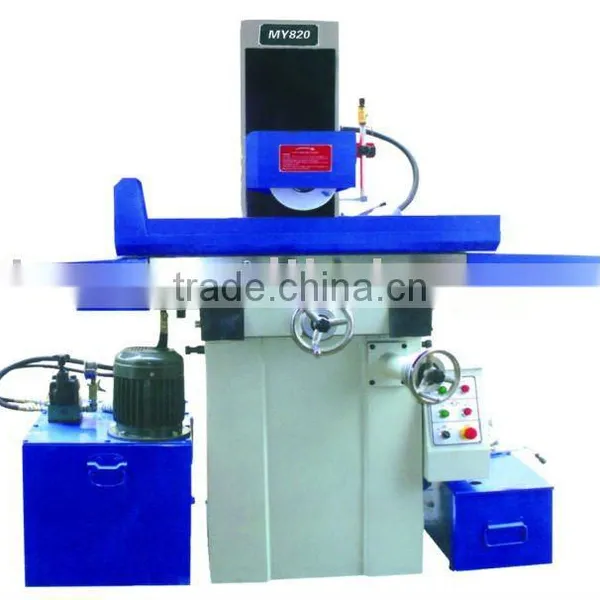

Model Number M618A, M820, MY820, M250, MY250, MY300, MY300A

Surface Grinding machine

Model	Unit	M618A	M820/MY820	M250/MY250	MY300	MY300A
Table Size(L×W)	mm	460x180	480x200	540x250	600×300	750×300
Max. table travel	mm	500x190	530x220	560x240	630×320	780×320
Max. workpiece to be ground	mm	500x190	520x220	540x240	630×310	780×310
Max. distance of table to spindle center	mm	335	490	490	550	550
Table slide-way		V-type rail with steel ball	Double V-type rail	Double V-type rail	V-type rail with steel ball	Double V-type rail
Cross feed on handwheel per revolution	mm	2.5	2.5	2.5	2.5	2.5
per graduation	mm	0.02	0.02	0.02	0.02	0.02
Vertical feed on handwheel per revolution	mm	1.25	1.25	1.25	1.25	2
per graduation	mm	0.01	0.01	0.01	0.01	0.01
Wheel speed	r.p.m	2850	2850	2850	2850	1450
Wheel size(dia.×width×bore )	mm	200×16×31.75	200×16×31.75	200×20×31.75	200×20×31.75	250×25×76
Spindle motor	w	1100	1100	1500	2200	2200
Hydraulic station motor	w		Null/1500	Null/1500	1500	2250
Working pressure	mpa		Null/3	Null/3	3	4
Max. flow	l/min		Null/18	Null/18	20	18
Fuel tank capacity	l		Null/80	Null/80	80	80
Coolant pump	w	40	40	40	40	40
Net weight	kg	650	750	900	1200	1300
Gross weight	kg	750	800/850	950/1000	1330	1430
Overall dimension(L×W×H)	m	1.55x1.06x1.59	1.68x1.14x1.80	1.80x1.40x1.80	1.90×1.53×1.83	1.88×1.48×1.85
Packing size(L×W×H)	m	1.06x1.17x1.87	1.14x1.24x1.96	1.30x1.63x1.96	1.98×1.53×2.03	1.91×1.50×2.03
