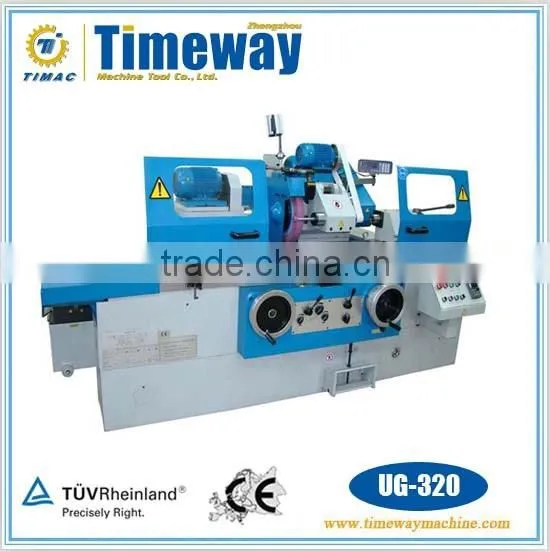

Small Universal Cylindrical Grinder / Internal and External Grinding Machine
Standard Accessories:
Coolant tank, Wheel periphery dresser base (without diamond pen),Flange and wheel extractor, Standard grinding wheel, Balancing arbor, Working lamp, Leveling wedge, Open steady rest, Operation manual(English edition).
Optional Accessories:
Balance stand, Magnetic separator apparatus, Paper filter apparatus, Center grinding attachment, Close steady rest, End wheel dresser, Radius wheel dresser
Parameter:
Specification |
Unit |
UG-200 |
UG-320 |
|
* General capacity | ||||
Distance between centers |
mm |
500,750 |
1000/1500/2000/3000 |
|
Center height |
mm |
135 |
180 |
|
Dia.ground(O.D) |
mm |
5-200 |
8-320 |
|
DIa.ground(I.D) |
mm |
25-100 |
30-100 |
|
Max.length to be ground(O.D) |
mm |
500,750 |
1000 1500 2000 3000 |
|
Max.length to be ground(I.D) |
mm |
125 |
||
Max.weight of workpiece |
kg |
100 |
150 |
|
* Workhead | ||||
Swiveling angle |
º |
+ 90 º |
||
Center taper(MT) |
MT |
4 |
||
Spindle speed |
r/min |
50HZ:25-380 stepless |
50HZ:25-220 stepless |
|
* Wheel head | ||||
Spindle speed of wheelhead |
r/min |
1670 |
||
Rapid travel of wheelhead |
mm |
50 |
||
Max.travel |
mm |
205 |
246 |
|
Swiveling angle |
º |
±10º |
±30º |
|
Hand feed per.rev |
mm |
rough:2 fine:0.5 |
||
Hand feed per.gra |
mm |
rough:0.01 fine:0.0025 |
||
Wheel size(ODXWXID) |
mm |
400×50×203 |
||
Peripheral velocity |
m/s |
35 |
||
* Internal grinding device | ||||
Spindle speed |
r/min |
10000 15000 |
||
Dimension of wheel |
mm |
Max.(50×25×13) Min.(17×20×6) |
||
* Table | ||||
Hand feed per.rev |
mm |
6 |
||
Max.. swiveling |
Clockwise |
º |
3º |
3º(1000 1500),2º(2000,3000) |
Anticlockwise |
º |
9º(500), 8º(750) |
7º(1000),6º(1500),5º(2000),3º(3000) |
|
Longitudinal speed range of table |
m/min |
0.1-4 |
||
* Tailstock | ||||
Center taper(MT) |
MT |
4 |
||
Quill travel |
mm |
30 |
||
* Motor | ||||
Wheelhead motor power |
|
kw |
4 |
5.5 |
Internal grinding motor power |
|
kw |
1.1 |
|
Workhead motor power |
|
kw |
1.1 |
1.5 |
* Machine | ||||
Gross weight |
T |
4.1(500),4.3(750) |
5.3(1000),6.1(1500),7.9(2000),9.9(3000) |
|
Packing size(L*W*H) |
cm |
|
322×200×205(1000) |
|
235×203×205(500) |
422×200×205(1500) |
|||
275×203×205(750) |
540×200×205(2000) |
|||
|
739×200×205(3000) |
|||

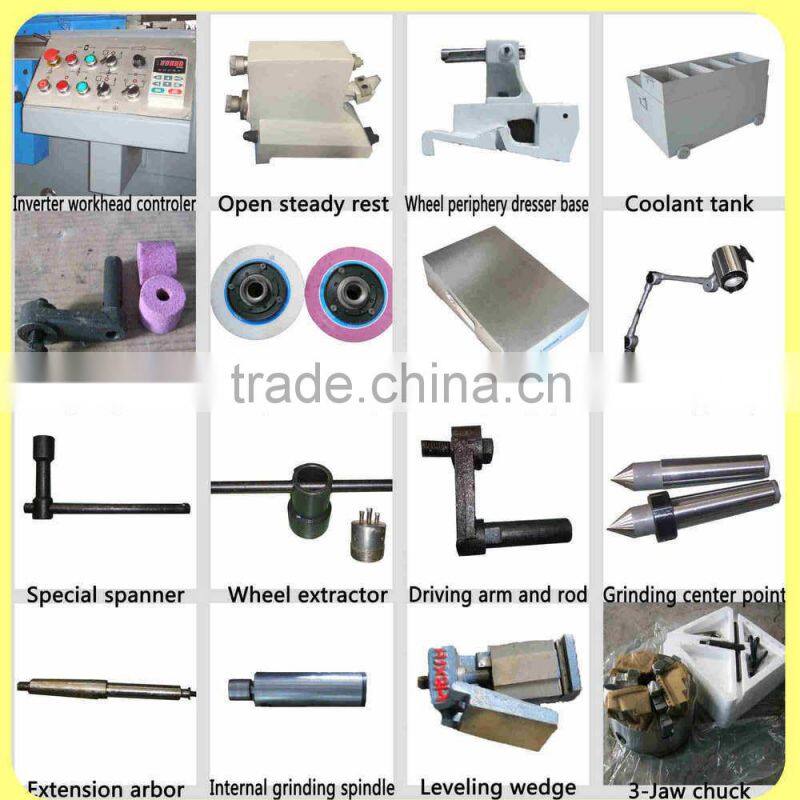

Details of Accessories:
