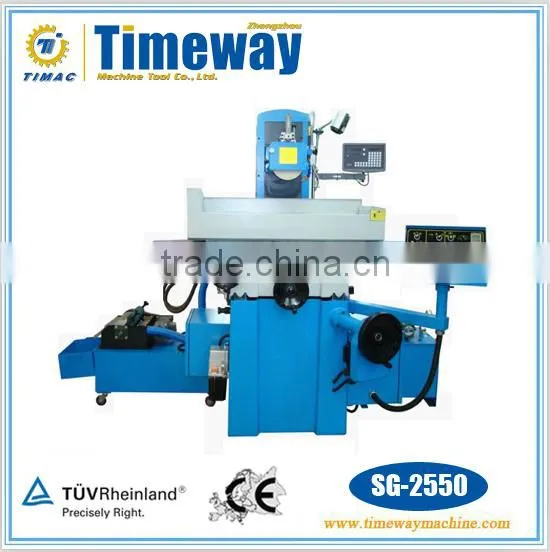

Small-sized Saddle Moving Surface Grinding Machine /Surface Grinder, amoladora
Standard Accessories:
Wheel chuck, Wheel balancing arbor, Wheel extracting units, Coolant tank, Work light, Tool box & tools, Wheel dresser(without diamond pen), Standard wheel, Leveling wedges and foundation, Electric magnetic chuck, PLC auto. grinding controller(only for AHD model), Operation manual(English edtion).
Optional Accessories:
Wheel balancing stand, Parallel dresser, Cooling system with paper filter, Cooling system with magnetic separator, Cooling system with magnetic separator & paper filter.
Parameter:
Specification | Unit | SG-2050AH | SG-2550AH | |
SG-2050AHR | SG-2550AHR | |||
SG-2050AHD | SG-2550AHD | |||
Table size (W×L) | mm | 200x460 | 250x500 | |
Longitudinal travel | mm | 510 | 560 | |
Cross travel | mm | 238 | 275 | |
Max. distance from spindle to table | mm | 450 | 450 | |
Electro magnetic chuck size | mm | 200x460 | 250x500 | |
Speed of table longitudinal move | m/min | 7~23 | ||
Table cross | Auto feed | mm | 0.1~8 | |
Rapid feed | mm/min | 990 | ||
Handwheel feed | mm/div | 0.02 | ||
Wheelhead | Auto feed | mm | 0.005/0.01/0.02/0.03/0.04/0.05 (Only for AHD series) | |
Rapid feed | mm/min | 460 (Only for AHR/AHD series) | ||
Handwheel feed | mm/div | 0.005 | ||
Grinding | Spindle speed | rpm | 50HZ: 2850 / 60HZ: 3450 | |
Wheel size | mm | 200x 20 x31.75 | ||
Spindle motor | kw | 1.5 | 2.2 | |
Hydraulic pump | kw | 0.75 | ||
Cooling pump | kw | 0.04 | ||
Elevating motor | kw | 0.25 (AHR model) / 0.5 (AHD model, Servo motor) | ||
Cross feed motor | kw | 0.04 | ||
Total rated power | kw | 3 | 3.7 | |
Max. loading capacity (include chuck) | kg | 120 | 180 | |
Height of the machine | mm | 1675 | ||
Floor space (L×W) | mm | 2050x1400 | 2300x1650 | |
Gross weight | kg | 1600 | 1800 | |
Package size (L×W×H) | cm | 190x172x218 | 200x210x218 | |
Tips:
AH: auto feed on transverse, hydraulic transmission on longitudinal, manual on vertical.
AHR: auto feed on transverse, hydraulic transmission on longitudinal, rapid movement on vertical
AHD: auto feed on transverse, hydraulic transmission on longitudinal, auto feed on vertical.
