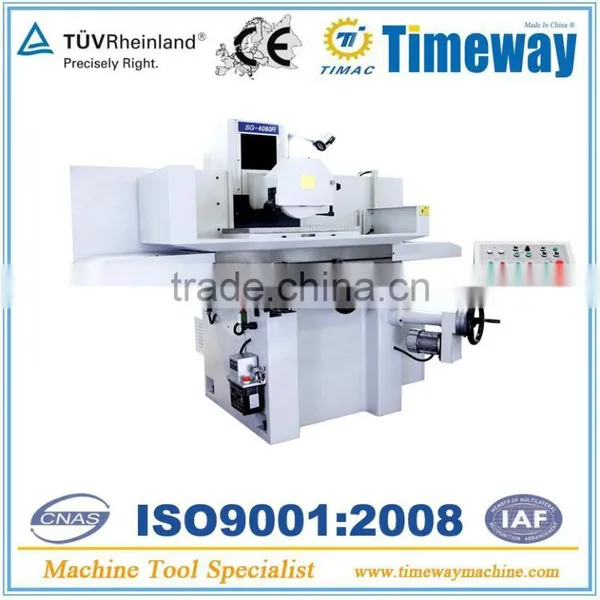

Rectificadora , Small Saddle Moving Surface Grinding Machine / Surface Grinder
US$ 5,000 - 92,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Surface Grinding Machine
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rectificadora / Small Sized Saddle Moving Surface Grinding Machine / Surface GrinderNegotiableMOQ: 1 Set -
Small Universal Cylindrical Grinder / Grinding Machine / RectificadoraNegotiableMOQ: 1 Set
-
Surface Grinding MachineUS$ 1,200 - 3,500MOQ: 1 Set
-
Rectificadora / Small Cylindrical Grinder / Cylindrical Grinding MachineNegotiableMOQ: 1 Set
-
CNC Camshaft Grinding Machine ( Special-use Crankshaft Grinder Machine)US$ 10,000 - 50,000MOQ: 1 Set
Condition
New
Type
Surface Grinding Machine
CNC or Not
Normal
Max. Grinding Diameter
as model
Max. Grinding Length
Effective Length
Brand Name
TIMAC
Model Number
SG-2050M/R/A,SG-3063M/R/A,SG-4080M/R/A
Voltage
as customer's request
Power(W)
3.7-7.5kw
Dimension(L*W*H)
2000mm*2100mm*2230mm
Weight
as model
Certification
CE & ISO
After-sales Service Provided
Engineers available to service machinery overseas
Small "Double walled column"Saddle Moving Surface Grinding Machine /Surface Grinder
Product Description
Standard Accessories:
Coolant tank, Standard electro magnetic chuck, Balancing arbor,Wheel flange, Wheel extractor, Leveling wedge and bolt,Tool box & tools, Standard grinding wheel, Working lamp,
Wheel dresser stand (Not including diamond pen), Built in electro magnetic chuck controlller,
PLC auto grinding controller (Only for A models).
Optional Accessories:
Digital readout, Parallel wheel dresser, Wheel balance stand, Coolant tank with magnetic separator, Coolant tank with paper filter, Coolant tank with magnetic separator and paper filter.
Parameter:
| Specification | Unit | SG-2050M | SG-2550M | SG-3063M | SG-30100M | SG-4080M | SG-40100M | |
| SG-2050R | SG-2550R | SG-3063R | SG-30100R | SG-4080R | SG-40100R | |||
| SG-2050A | SG-2550A | SG-3063A | SG-30100A | SG-40480A | SG-40100A | |||
| Table size(W×L) | mm | 200×508 | 254×508 | 305×635 | 305×1020 | 406×813 | 406×1020 | |
| Max.longitudinal travel | mm | 560 | 765 | 1130 | 910 | 1130 | ||
| Max. cross travel | mm | 240 | 275 | 340 | 450 | |||
| Max.distance from spindle center to table surface | mm | 450 | 580 | |||||
| Magnetic chuck size | mm | 200×460 | 250×500 | 300×600 | 300×1000 | 400×800 | 400×1000 | |
| Speed of table longitudinal movement | mm | 7-23 | ||||||
| Table transverse movement | Auto feed | mm/stroke | 0.1-8 | |||||
| Rapid speed | mm/min | 990 | ||||||
| Feed of handwheel | mm/div | 0.02 | ||||||
| Wheelhead vertical movement | Auto feed | mm/stroke | 0.005/0.01/0.02/0.03/0.04/0.05(only for a model) | |||||
| Rapid speed | mm/min | 610(only for R model), 480(only for A model) | ||||||
| Feed of handwheel | mm/div | 0.005 | ||||||
| Grinding wheel | Speed | rpm | 2850(50HZ),3450(60HZ) | 1450(50HZ),1750(60HZ) | ||||
| Size(O.D×W×I.D) | mm | 200×20×31.75 | 350×40×127 | |||||
| Spindle motor | kw | 2.2 | 5.5 | |||||
| Hydraulic motor | kw | 0.75 | 2.2 | |||||
| Cooling pump motor | kw | 0.04 | 0.125 | |||||
| Elevating motor | mm | 0.25(R model), 0.5(A model, servo motor) | ||||||
| Cross feed motor | μm | 0.04 | ||||||
| Max. loading capacity of table (including magnetic chuck) | kg | 180 | 270 | 400 | 500 | 600 | ||
| Total rated power | kw | 3.7 | 7.5/9 | |||||
| Height of machine | mm | 1675 | 1890 | |||||
| Floor space(L×W) | mm | 2300×1600 | 2900×2200 | 4400×2200 | 3600×2400 | 4400×2400 | ||
| Gross weight | kg | 1650 | 1800 | 2800 | 3200 | 3400 | 3900 | |
| Packing dimensions(L×W×H) | mm | 2000×2100×2175 | 2350×2200×2150 | 2950×2220×2210 | 2850×2270×2180 | 2950×2270×2210 | ||
