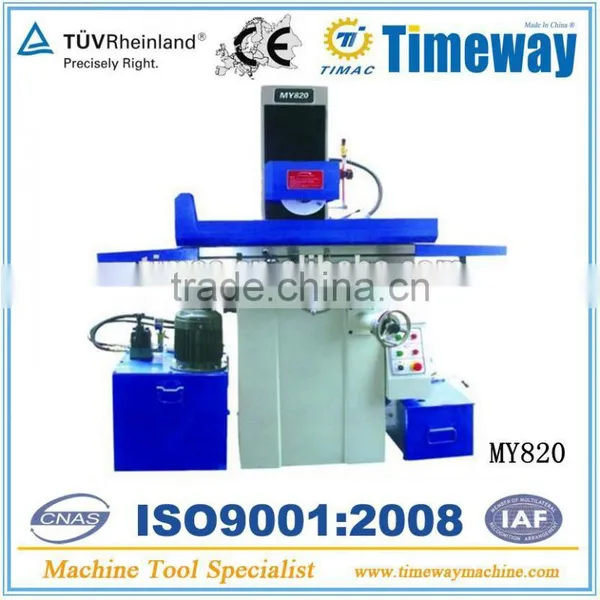

" 750mm*350mm "Hydraulic Surface Grinding Machine
Features:
*The manual surface grinding machine adopt the V-type guide,bring transmission by synchronous belt. *Meanwhile, the machine adopt the exceeding precise P4 level ball bearing for spindle, having complete attachment
with electromagnetic chuck or the dense chuck of permanent magnetism.
*The machine have the simple and convenient operation, low noise,high precision for processing, steady mechanical
performance, reliable hydraulic system of table longitudinal movement
Standard Accessories:
Tool box, Balancing stand/balancing bar, Handwheel nut, Flange wrench, Screwdriver, Balancing screw,
Open-end wrench, Inner hexagon spanner, Wheel dresser holder, Machine stand pad, Wheel flange,
Wheel dresser, Chuck.
Optional Accessories:
Tiltable permanent chuck, Demagnetizer, Overhead parallel dresser, Angle dresser, Radius dresser, Precision vice, Dust suction device, Digital readout system, Working light, Wheel flange.
Parameter:
| Model | Unit | MY820 | MY250 | MY300 | MY300A |
| Table size | mm | 480×200 | 540×250 | 600×300 | 750×300 |
| Max.table travel | mm | 530×220 | 560×240 | 630×320 | 780×320 |
| piece to be ground | mm | 520×220 | 540×240 | 630×310 | 780×310 |
| Max.distance from table to spindle center | mm | 490 | 550 | ||
| Table slide-way | Double V-type rail | V-type rail with steel ball | Double V-type rail | ||
| Cross feed on handwheel per revolution | mm | 2.5 | |||
| Cross feed on handwheel per graduation | mm | 0.02 | |||
| Vertical feed on handwheel per revolution | mm | 1.25 | 2 | ||
| Vertical feed on handwheel per graduation | mm | 0.01 | |||
| Wheel speed | rpm | 2850 | 1450 | ||
| Wheel size(dia.×width×bore) | mm | 200×16×31.75 | 200×20×31.75 | 250×25×76 | |
| Spindle motor | w | 1100 | 1500 | 2200 | |
| Hydraulic station motor | w | 1500 | 2250 | ||
| Working pressure | mpa | 3 | 4 | ||
| Max. flow | l/min | 18 | 20 | 18 | |
| Fuel tank capacity | l | 80 | |||
| coolant pump | w | 40 | |||
| Net weight | kg | 750 | 900 | 1200 | 1300 |
| Gross weight | kg | 850 | 1000 | 1330 | 1430 |
| Overall dimension(L×W×H) | m | 1.68×1.14×1.80 | 1.80×1.40×1.80 | 1.90×1.53×1.83 | 1.88×1.48×1.85 |
| Packing size(L×W×H) | m | 1.14×1.24×1.96 | 1.30×1.63×1.96 | 1.98×1.53×2.03 | 1.91×1.50×2.03 |
