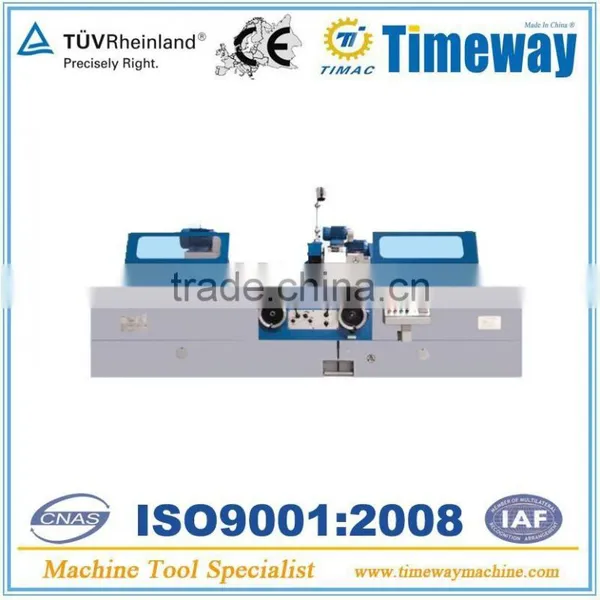

Rectificadora / Universal Cylindrical Grinder / Cylindrical Grinding Machine

Name: Rectificadora / Universal Cylindrical Grinder / Cylindrical Grinding Machine
Brand: TIMAC
SKU: 140797426
Availability: InStock

Rectificadora / Universal Cylindrical Grinder / Cylindrical Grinding Machine thumbnail-1

Rectificadora / Universal Cylindrical Grinder / Cylindrical Grinding Machine photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Universal

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Universal

CNC or Not Normal

Max. Grinding Diameter 630mm

Max. Grinding Length 1500-5000mm(O.D)

Brand Name TIMAC

Model Number UG-500(500A),UG-630

Voltage as customer's request

Power(W) 5KW

Dimension(L*W*H) 5100mm*2280mm*2100mm

Weight 11T-26T

Certification CE & ISO

After-sales Service Provided Engineers available to service machinery overseas

Universal Cylindrical Grinder / Internal and External Grinding Machine

Product Description

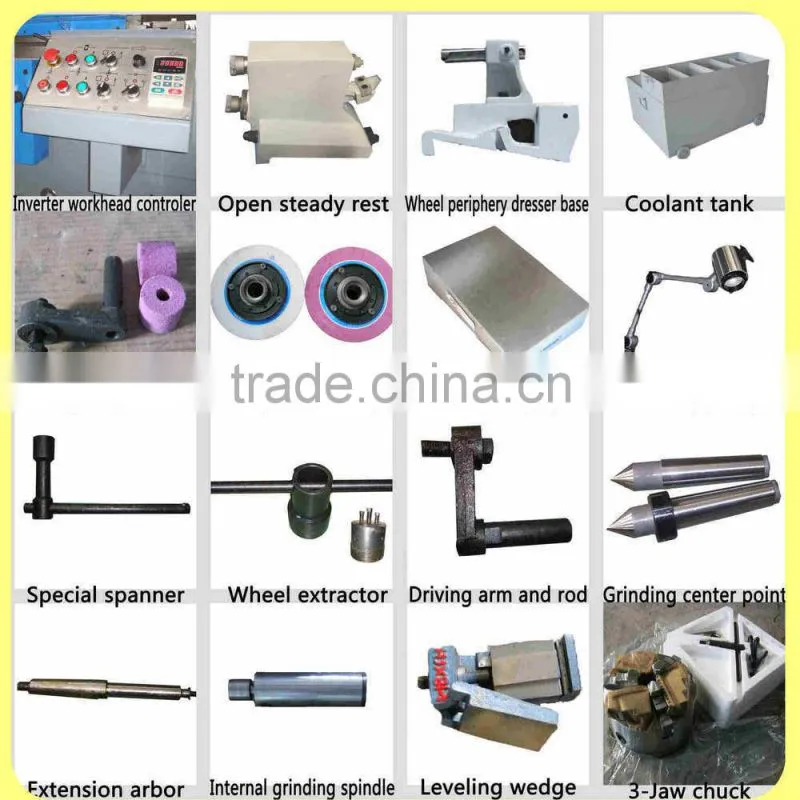

Standard Accessories:

Cooolant tank, Wheel periphery dresser base (without diamond pen), Flange and wheel extractor,Standard grinding wheel, Balancing arbor, Working lamp, Leveling wedge, Open steady rest,Operation manual (English edition)

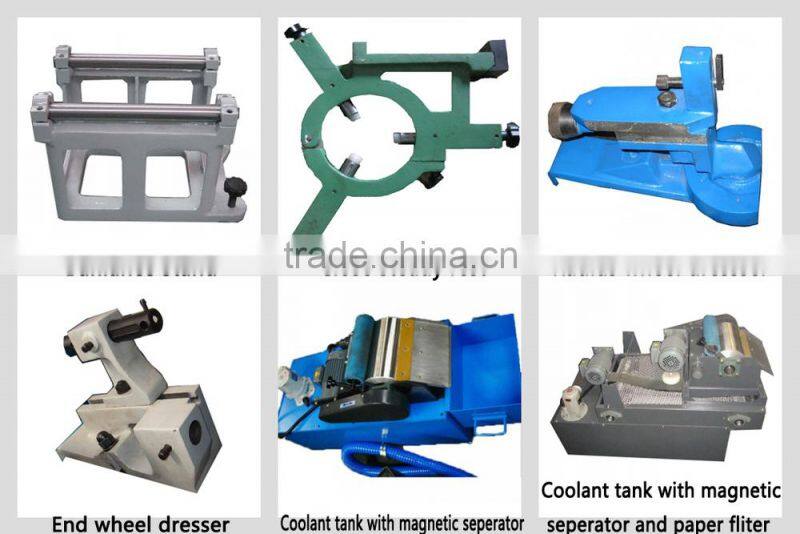

Optional Accessories:

Balance stand, Magnetic separator apparatus, Paper filter apparatus, Center grinding attachment, Close steady rest,

End wheel dresser, Radius wheel dresser.

Parameter:

Specification		Unit	UG-500(UG500A)	UG-630
* General capacity
Distance between centers		mm	1500/2000/3000/4000	2000/3000/4000/5000
Center height		mm	270	370
Dia.ground(O.D)		mm	25-500	30-630
DIa.ground(I.D)		mm	30-200	30-250
Max.length to be ground(O.D)		mm	1500/2000/3000/4000	2000/3000/4000/5000
Max.length to be ground(I.D)		mm	320
Max.weight of workpiece		kg	1000(2000)	3000
* Workhead
Swiveling angle		º	+90 º
Center taper(MT)		MT	6
Spindle speed		r/min	50HZ:20-224 stepless	50HZ:14-140 stepless
* Wheel head
Spindle speed of wheelhead		r/min	1330/665	1100/550
Rapid travel of wheelhead		mm	100
Max.travel		mm	370	450
Swiveling angle		º	±30º
Hand feed per.rev		mm	rough:4 fine:0.5
Hand feed per.gra		mm	rough:0.02 fine:0.0025
Wheel size(ODXWXID)		mm	500×75×305	600×75×305
Peripheral velocity		m/s	35/17.5
* Internal grinding device
Spindle speed		r/min	10000
Dimension of wheel		mm	Max.(175×32×32) Min.(30×25×10)
* Table
Hand feed per.rev		mm	5
Max.. swiveling angle of table	Clockwise	º	3º(1500), 2º(2000/3000), 1º(4000)	2º(2000), 1º(3000/4000/5000)
	Anticlockwise	º	6º(1500), 5º(2000), 3º(3000), 2º(4000)	4º(2000), 3º(3000), 2.5º(4000), 1.5º(5000)
Longitudinal speed range of table		m/min	0.1-3	0.1-2.5
* Tailstock
Center taper(MT)		MT	6	metric 80#
Quill travel		mm	70
* Motor
Wheelhead motor power		kw	5/7.5	7/11
Internal grinding motor power		kw	1.5
Workhead motor power		kw	4(7.5)	15
* Machine
Gross weight		T	11(1500), 12(2000), 15(3000), 17(4000)	20(2000), 22(3000), 24(4000), 26(5000)
Packing size(LWH)		cm	510×228×210(1500)	695×242×226(2000)
			585×228×210(2000)	890×242×226(3000)
			785×228×210(3000)	1100×242×226(4000)
			1000×228×210(4000)	Dividing packing length 1250(5000)
