Large CNC Surface Profile Grinder

Name: Large CNC Surface Profile Grinder
Brand: TIMAC
SKU: 140797388
Availability: InStock

US$ 50,000 - 300,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, CNC profile surface grinder

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, CNC profile surface grinder

CNC or Not CNC

Max. Grinding Diameter 350mm(Height)

Max. Grinding Length 6100mm

Brand Name TIMAC

Model Number PGKL-40610

Voltage 380V 50Hz

Power(W) 18kw

Dimension(L*W*H) 95000*1600mm(Floor-area)

Weight 15000kg

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

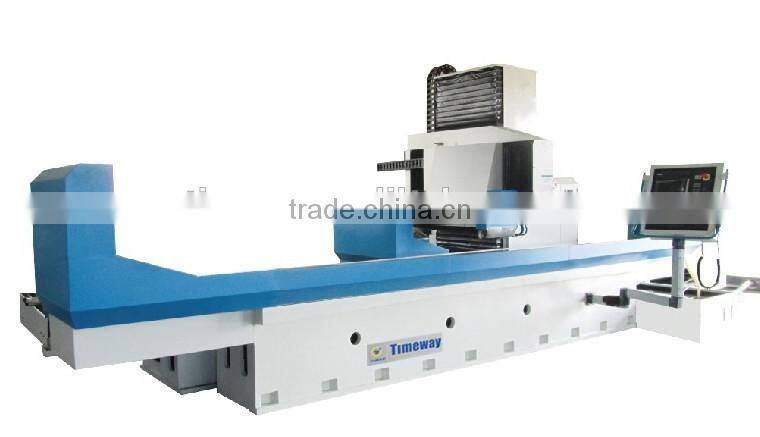

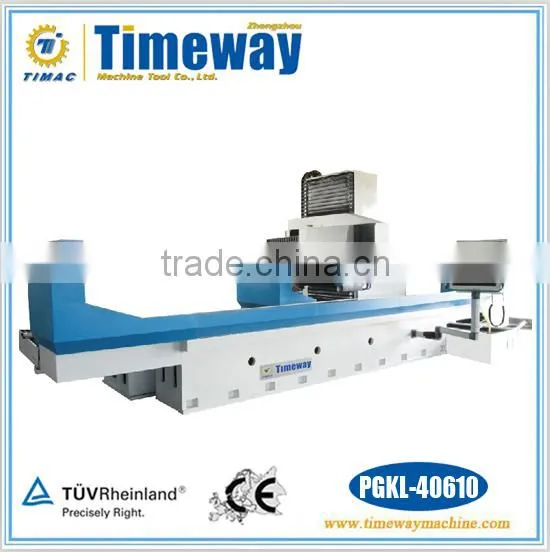

Large CNC Surface Profile Grinding Machine

PGKL-40Series PGKL-60Series PGK-80Series

Main Outlook

Specifications List

Technical Parameters

PGKL-40 Series

Model	Unit	PGKL-40410	PGKL-40610
Travel (X/Y/Z)	mm	4100x420x450	6100x420x450
Table size	mm	4100x400	6100x400
Max. grinding height	mm	350	350
Max. workpiece loading (overall length)	kg	4000	6000
T-slot quantity		3	3
Parallelism (overall length)	mm	0.02	0.04
Surface roughness		Ra0.63	Ra0.63
Min. vertical feed	mm	0.001	0.001
Min. cross feed	mm	0.002	0.002
Run-out of the spindle	mm	0.003	0.003
Spindle power	kw	11	15
Spindle speed	rpm	1440	1440
Grinding wheel size	mm	350x127x40	400x127x40
Power consumption	kw	15	18
Floor space (LxW)	mm	7500x1600	9500x1600
Net weight	kg	11000	15000

PGKL-60 Series

Model	Unit	PGKL-60410	PGKL-60610	PGKL-60810
Travel (X/Y/Z)	mm	4100x620x550	6100x620x550	8100x620x550
Table size	mm	4100x600	6100x600	8100x600
Max. grinding height	mm	500	500	600
Max. workpiece loading (overall length)	kg	6000	8000	10000
T-slot quantity		3	3	3
Parallelism (overall length)	mm	0.03	0.04	0.05
Surface roughness		Ra0.63	Ra0.63	Ra0.63
Min. vertical feed	mm	0.001	0.001	0.001
Min. cross feed	mm	0.002	0.002	0.002
Run-out of the spindle	mm	0.003	0.003	0.003
Spindle power	kw	15	18.5	18.5
Spindle speed	rpm	1440	1440	1440
Grinding wheel size	mm	500x203x63	500x203x80	500x203x100
Power consumption	kw	19	23	23
Floor space (LxW)	mm	7900x200	9900x200	11900x2000
Net weight	kg	15000	24000	27000

PGKL-80 Series

Model	Unit	PGKL-80410	PGKL-80810	PGKL-801000	PGKL-801200
Travel (X/Y/Z)	mm	4100x820x650	8100x820x650	10100x820x650	12100x820x650
Table size	mm	4100x800	8100x800	10100x800	12100x800
Max. grinding height	mm	600	600	600	600
Max. workpiece loading (overall length)	kg	8000	12000	15000	18000
T-slot quantity		3	3	3	3
Parallelism (overall length)	mm	0.03	0.05	0.06	0.08
Surface roughness		Ra0.63	Ra0.63	Ra0.63	Ra0.63
Min. vertical feed	mm	0.001	0.001	0.001	0.001
Min. cross feed	mm	0.002	0.002	0.002	0.002
Run-out of the spindle	mm	0.003	0.003	0.003	0.003
Spindle power	kw	18.5	22	22	22
Spindle speed	rpm	1440	1440	1440	1440
Grinding wheel size	mm	500x203x100	500x203x100	500x203x100	500x203x100
Power consumption	kw	25	29	23	23
Floor space (LxW)	mm	7900x2300	11900x2300	13900x2000	15900x2000
Net weight	kg	20000	32000	36000	41000

Notes:

Model	Remarks
Travel (X/Y/Z)	Length can be changed according to the specific order, the max. length could reach 18m
Max. grinding height	It can be raised 100/200mm according to the specific requests
Max. workpiece loading (overall length)	Loading of the whole table area
Parallelism (overall length)	Electro-permanent magnetic chuck is optional for high precision
Surface roughness	Roughness could change according to the workpiece material or grinding wheel model
Min. cross feed	Optional item
Run-out of the spindle	Less than 0.003mm
Spindle power	Power cna be changed according to the specific order
Spindle speed	Varaible frequency motor is optional
Power consumption	Excluding magnetic chuck power

Detailed Images

Working Workpiece of Large Profile Surface Grinder

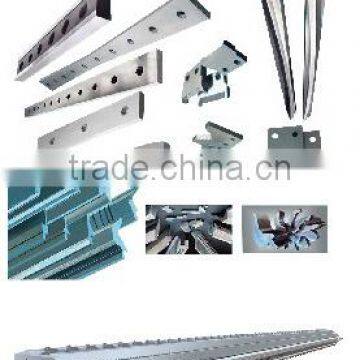

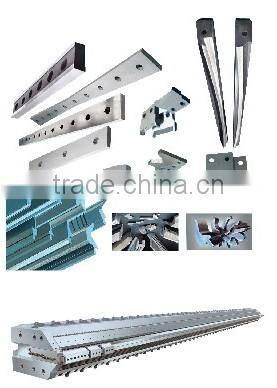

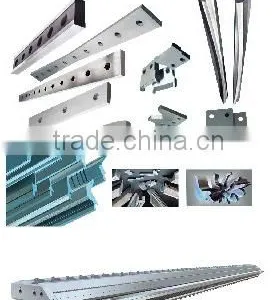

In addition to the machine tools, and we are processing other special purpose machine tools, such as CNC surface profile grinder, CNC guideway grinder, CNC linear guideway grinder, CNC corrugated roller grinder, CNC blade grinder, etc. The machine tool by using special grinding wheel can process following special parts. As well as can be customized according to customer's requirements.
