CNC Surface Profile Grinding Machine

Name: CNC Surface Profile Grinding Machine
Brand: TIMAC
SKU: 140797392
Availability: InStock

US$ 50,000 - 200,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, CNC profile surface grinder

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, CNC profile surface grinder

CNC or Not CNC

Max. Grinding Diameter 350mm(Height)

Max. Grinding Length 1300mm

Brand Name TIMAC

Model Number PGK-40130

Voltage 380V 50Hz

Power(W) 17kw

Dimension(L*W*H) 2400*4100mm(Floor-area)

Weight 6000kg

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

CNC Surface Profile Grinding Machine

PGK-40130 PGK-50150 PGK-50230 PGK-60150 PGK-60230 PGK80150

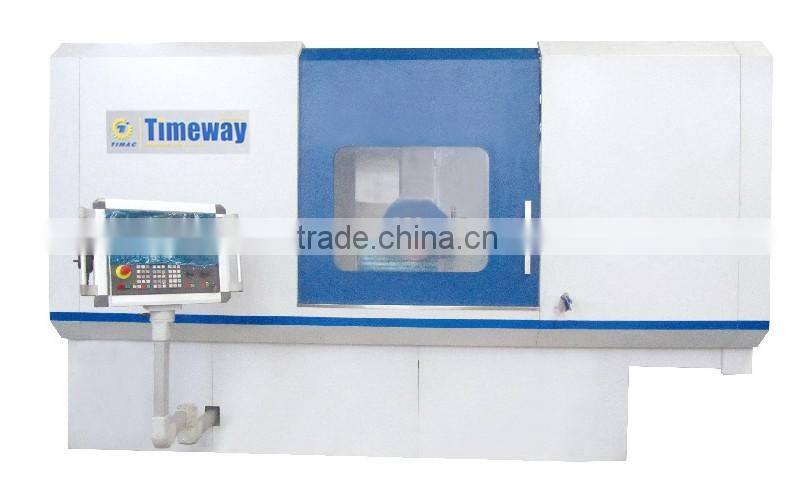

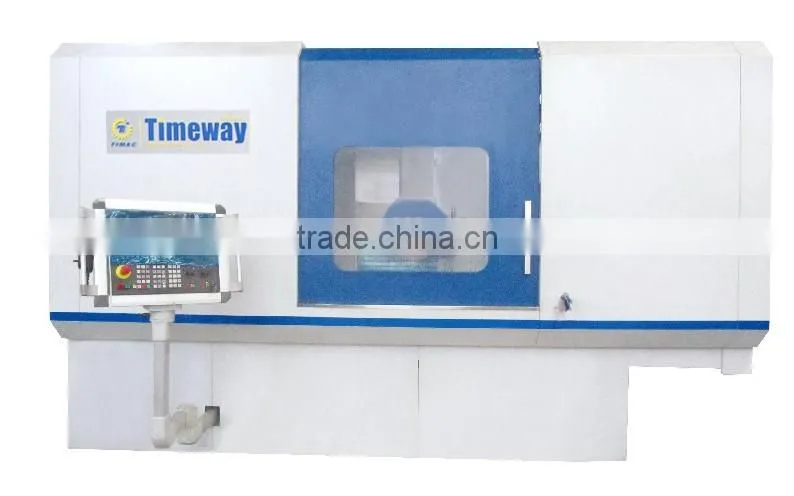

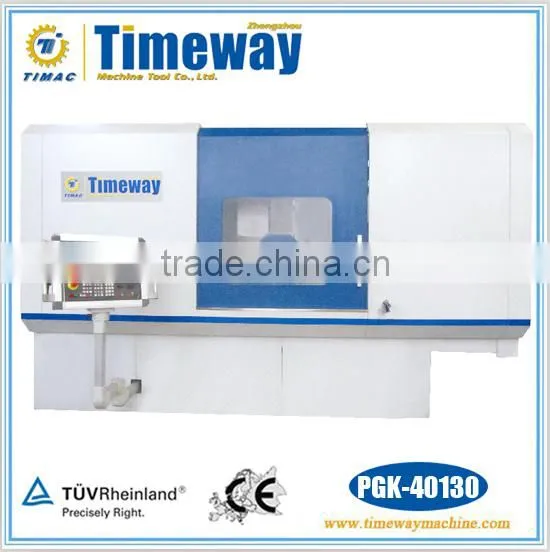

Main Outlook

Specifications List

Technical Parameters

PGK-40130 PGK-50150 PGK-50230 PGK-60150

Model	Unit	PGK-40130	PGK-50150	PGK-50230	PGK-60150
Travel (X/Y/Z)	mm	1300x420x400	1500x520x400	2300x520x400	1500x620x550
Table size	mm	1300x400	1500x500	2300x500	1500x600
Max. grinding height	mm	350	400	400	500
Max. workpiece loading (overall length)	kg	400	500	800	600
Workpiece equal thickness (overall length)	mm	0.005	0.006	0.006	0.008
Surface roughness		Ra0.4	Ra0.4	Ra0.4	Ra0.4
Min. vertical feed	mm	0.001	0.001	0.001	0.001
Min. cross feed	mm	0.002	0.002	0.002	0.002
Run-out of the spindle	mm	0.003	0.003	0.003	0.003
Spindle power	kw	11	15	15	15
Spindle speed	rpm	1440/2880	1440/2880	1440/2880	1440/2880
Grinding wheel size	mm	350x127x40	400x203x63	400x203x63	400x203x63
Power consumption	kw	17	21	22	21
Floor space (LxW)	mm	2400x4100	2400x4500	2400x6200	2500x4500
Net weight	kg	6000	7500	8500	9000

PGK-60230 PGK-80150 PGK-80230

Model	Unit	PGK-60230	PGK-80150	PGK-80230
Travel (X/Y/Z)	mm	2300x620x550	1500x620x550	2300x620x550
Table size	mm	2300x600	1500x800	2300x800
Max. grinding height	mm	500	600	600
Max. workpiece loading (overall length)	kg	900	800	1200
Workpiece equal thickness (overall length)	mm	0.008	0.01	0.01
Surface roughness		Ra0.4	Ra0.4	Ra0.4
Min. vertical feed	mm	0.001	0.001	0.001
Min. cross feed	mm	0.002	0.002	0.002
Run-out of the spindle	mm	0.003	0.003	0.003
Spindle power	kw	15	18.5	18.5
Spindle speed	rpm	1440/2880	1440/2880	1440/2880
Grinding wheel size	mm	400x203x63	500x203x80	500x203x80
Power consumption	kw	22	25	26
Floor space (LxW)	mm	2500x6200	2700x4500	2700x6200
Net weight	kg	10000	12000	15000

Notes:

Model	Remarks
Travel (X/Y/Z)	According to the different dressing systems, the travel of X-axis need make some change
Max. grinding height	It can be raised 100mm according to the specifical requests
Max. workpiece loading (overall length)	Loading of the whole table area
Workpiece equal thickness (overall length)	Standard equipment is electro-permanent magnetic chuck.-Choosing ordinary magnetic chuck would reduce this accuracy.
Surface roughness	Choosing ordinary magnetic chuck would reduce this accuracy
Min. vertical feed	Controlled by the electric handwheel
Min. cross feed	Controlled by the electric handwheel
Run-out of the spindle	Hydrodynamic-hydrostatic spindle unit is optional
Spindle power	It could change according to the specific requests
Spindle speed	Varaible frequency motor or servo motor is optional
Grinding wheel size	The width could be raised to 80-120mm according to the specific requests
Power consumption	It could change according to the different accessories

Detailed Images

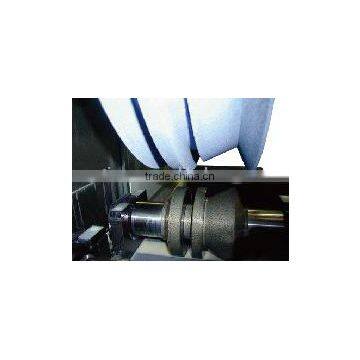

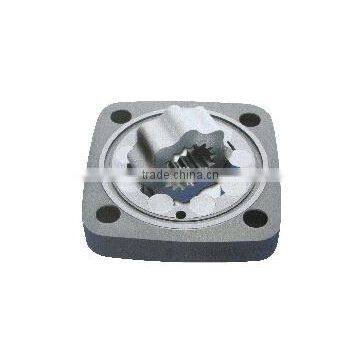

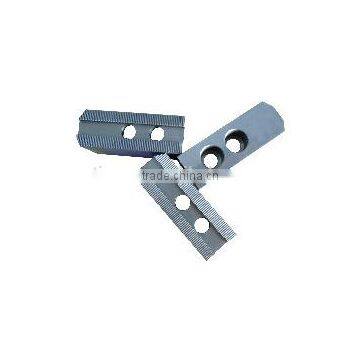

Working Workpiece of Profile Surface Grinder
