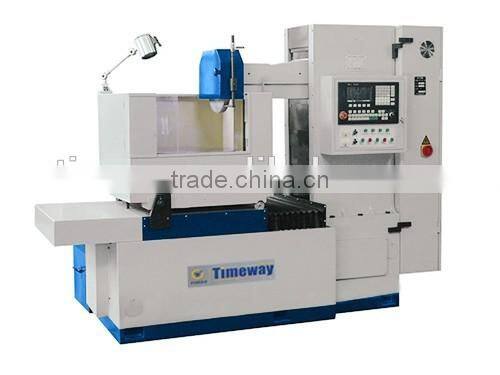

CNC Surface Grinding Machine With Horizontal Spindle and Round Table

Name: CNC Surface Grinding Machine With Horizontal Spindle and Round Table
Brand: TIMAC
SKU: 140797384
Availability: InStock

CNC Surface Grinding Machine With Horizontal Spindle and Round Table thumbnail-1

CNC Surface Grinding Machine With Horizontal Spindle and Round Table photo-1

US$ 10,000 - 100,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Surface Grinding Machine

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Surface Grinding Machine

CNC or Not CNC

Max. Grinding Diameter 630mm

Max. Grinding Length 100mm

Brand Name TIMAC

Model Number RSGK-630

Voltage 380V 50Hz

Power(W) 11.79kw

Dimension(L*W*H) As actual situation

Weight 3500kg

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

CNC Surface Grinding Machine With Horizontal Shaft and Round Table

RSGK-630

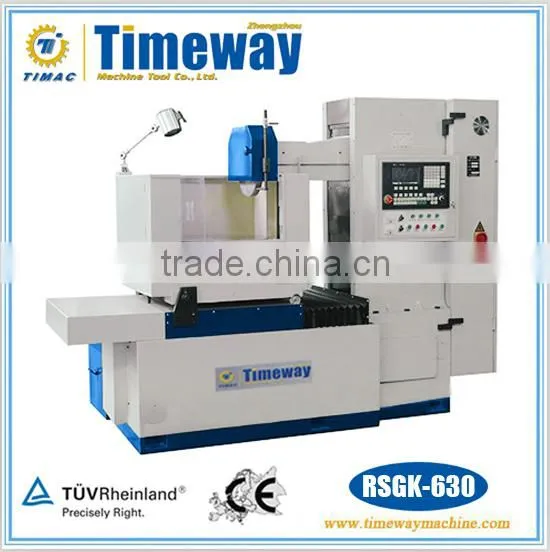

Main Outlook

Product Description

Performance and Feature

This surface-grinding machine applies to grind and process the general metals,superhard meterials,moulds and bearing in the field of saw blade,automobile parts,semi- conductor and opticals.
This surface-grinding machine adopts mainly the grinding wheel to grind the surface of workpiece; where its operating bench is designed to grind the internal and external conical surface,groove and step of workpiece,even make the compound grinding for workpiece by rotating along the horizontal spindle.
The body and the vertical column of column of surface-grinding machine are made of the HT250 cast iron;in order to avoid deformation and guarantee the long-term grinding accuracy,both are relieved the internal stress by making annealing treatment and the naturally actual effect treatment.
The axis Y adoptd the precision spherical guide and is provided with the Grade C3 ball screw and servo motor to drive and achieve the perfect feed accuracy.
The vertical axis adopts the cellular design and the mechanics principle to ensure the grinding stability and guarantee the heavy duty grinding.
The grinding head's vertical feed shaft(X) adopts the precision spherical guide and is provided with the Grade 3 ball screw and servo motor to drive and achieve the perfect feed accuracy; where the gap is relieved by the pretightening force.
The main axis adopts the dynamic/static-pressure grinding head and the constant-temperature hydraulic drill;both of which have high accuracy and long life,and can ensure to withstand the heavy duty grinding.
The workbench,on which the constant-speed cutting device is designed,is driven to rotate by the dynamic-static pressure.As the excircle of the workbench moves and becomes its inner circle,the reciprocating mition speed of workbench's carriage and the rotating speed of workbench increase accordingly and long life ,and can ensure to realize the consistent surface machining quality and higher surface roughness
The workable diameter is 630mm or less; however for the workpiece having higher requirements on surface flatness and roughness,the surface flatness of 0.003mm and the surface roughness of 0.8µm(Ra value)can be achieved.
The simple and concise dialogue operation and control system can let operator select grinding mode easily and enter the grinding cycled automatically,but also can shorten working hours,improve working efficiency and realize consistent machining accuracy.This machine does not need any senior grinding technology or high academic qualifications;even for an operator who does not need any senior grinding technology or high academic qualifications;even for an operator who does know who to operate the grinding machine,he/she can easily learn and seize an extraordinary precision grinding technique from this machine.
The operator of the machine shall enjoy the low-labor intensity and can operator multiple grinding machines concurrently;thence the grinding machine can improve the working efficiency hugely.

Specifications List

Technical Parameter

Specification	RSGK-630
Diameter of worktable	630mm
Max.diamension of allowable workpiece (Diameter x height)	630mm*100mm
Rotating speed of worktable	40-450r/min(stepless)
Max.load of worktable	250kg
Reciprocating motion speed of worktable's carriage	5m/min
Reciprocating motion Stroke of worktable's carriage	360mm
Rotating speed of main axis of grinding wheel	1450r/min
Dimension of grinding wheel(external dimeter x width x inner diameter)	350x40x127mm
Vertical rapid lift	300mm/min
Min.vertical feed	0.001
Machining flatness	0.003
Power of motor of main axis of grinding wheel	7.5kw
Vertical lift's servo motor	1KW 6NM
Reciprocating servo motor of worktable	1KW 6NM
Motor of water pump	90W
Ratating motor of worktable	2.2KW
Net weight of grinding machine	3500kg
