Normal Horizontal Axis Rotary Table Surface Grinder
- 500 Set / Sets per Month
- China Port
- T/T Credit Card
- Second-hand sweeper second-hand mobile phone curved glass sweeper tablet computer curved glass sweeper
- Automatic Ultrafine Powder Grinder with Ceramic Mortar
- Automatic Powder Grinder with Ceramic Mortar
- Pneumatically-lifted Laboratory Grinder (Special grinding equipment for scientific research in Colleges and Universities)
- Pneumatically-lifted Grinder with Double Pestle and Ceramic Mortar (manual discharging)
- Pneumatically-lifted Grinder with Ceramic Mortar (Large grinder for chemical material and new material)
Product Details
Condition: | New | Type: | Surface Grinding Machine | CNC or Not: | Normal |
Max. Grinding Diameter: | 630mm | Max. Grinding Length: | 255mm | Brand Name: | TIMAC |
Model Number: | RSG-630 | Voltage: | 380V 50Hz | Power(W): | 13kw |
Dimension(L*W*H): | 2560*1600*2250mm | Weight: | 4400kg | Certification: | CE ISO |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

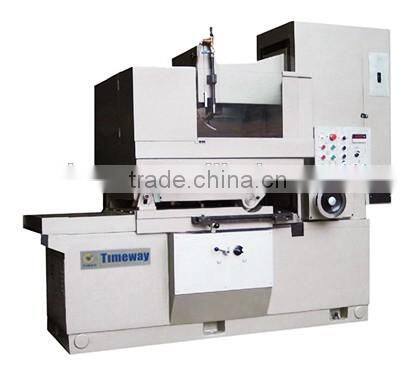

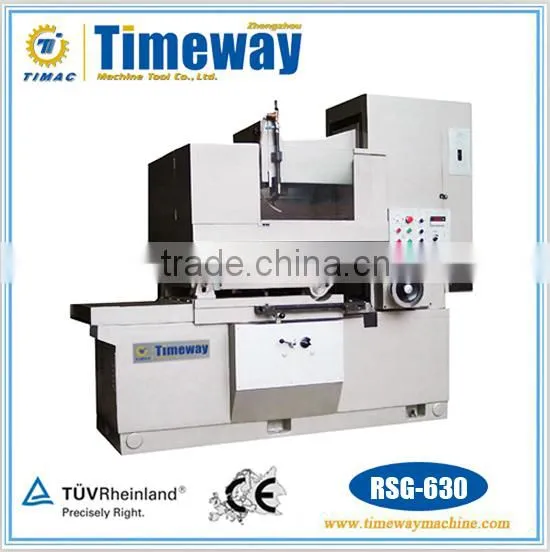

Normal Horizontal Axis Rotary Table Surface Grinder
RSG-400 RSG-500 RSG-630
Performance and Feature
- This grinder is mainly applicable for grounding processing of disc-shaped parts,circular cutter,bearing collar.piston ring,index palte,circilar guide rail,firction palte.saw baldes,valves,gears
- and other circular cutters and gauges and it can be widely used by the manufactures of tools,bearings,values,gears,auto parts.semi-conductors,optical elements and other engineering works for grinding processing of precision components.
- The horizontal shaft circular table surface grinder is made into,pillar-carriage structure and realizes grinding through the grinding wheel rim.Thanks to this fesign,high machining precision can be realized; especially that the disc-shaped parts processed may have the same concentric circle palnarity and relatively high surface roughness can be realized.
- Designed with compact structure and rational layout,the grinder takes up small land area.The grinder body is made into double-layer-wall structure,with consistent temperature rise at the four sides so that to avoid thermal seformation and thus enhance the rigidity and rigity and realize good stability.
- Guide rail of the grinder body is designed into open static pressure one-flat-one-V structure which guarantees stable running ,high shock absorption,less mechanical wear and long service life.The table moves stably on the guide rail,with uniform stress and high movement precision.
- At the time of machining,the round table rotates and starts reciprocating feed movement in the vertical direction along with th carriage with the machining efficiency times higher than that of the rectangular surface grinder.The circular table may revolve along the horizontal shaft for ±3°,so that grinds the internal and external cones.
- The circular table is designed with open static pressure guide rail and the AC motor VVVF speed control system for rotation driving.The grinding head feeds vertically through the quill roller steel guide to adjust pertension force,which guarantees the easy movement of guide ad zero gap fit and finally guarantrrs the precision and stablility of grinding feed.In addition,the grinder is equipped with quick lifting device.
- The main shaft of the grinding head is made into dynamic-static-pressure bearing bush supporting structure and is driven directly by the built-in motor,together with a stand-alone forced cooling oil tank,which may realize low temperature rise and high precision of rotation.
- The feed system of the grinder is designed with functions including automatic feed ,zero stop ,sparking out,automatic stop and automatic demagnetization grinding and the automatic circulating device.Magnetic force of the electromagnetic chuck is adjustable,so that to make convenient to grind thin-wall auenched parts with weak magnefic force.Movement of the table is drivem by the hydraulic cylinder,with step-less speed regulation and stable running.
Technical Parameter
Specification | RSG-400 | RSG-500 | RSG-630 |
Size of grinding pieces(Diameter x height) | Φ400x140mm | Φ500x255mm | Φ630x255mm |
Table diameter | Φ400mm | Φ500 | Φ630 |
Adjustable angle of table | ±3° | ±3° | ±3° |
Rotary speed of table (stepless speed control) | 0-180r/min | 0-70r/min | 0-70r/min |
Longitudinal movement speed of carriage (hydraulic stepless) | 0.1-2.5M/min | 0.1-2.0M/min | 0.1-2.0M/min |
Longitudinal shift motion of carriage | 240mm | 310mm | 345mm |
Roughness | Ra≤0.4 μ m | Ra≤0.4 μ m | Ra≤0.4 μ m |
Flatness | 1000:0.010 | 1000:0.010 | 1000:0.010 |
Quick lifting speed of grinding head | 175mm/min | 175mm/min | 175mm/min |
Automatic feeding of grinding head grade 6 | 0.0025 0.005 0.0075 | 0.0025 0.005 0.0075 | 0.0025 0.005 0.0075 |
0.01 0.015 0.02 | 0.01 0.015 0.02 | 0.01 0.015 0.02 | |
Vertical travel of grinding head | 170mm | 325mm | 325mm |
Power of head | 5.5kw/4.5kw(double speed motor) | 7.5kw | 7.5kw |
RPM grinding head | 2800r/min/1450r/min ( at top/low speed) | 1450r/min | 1450r/min |
Size of grinding wheel | Φ400x40xΦ203mm | Φ400x40xΦ203mm | Φ400x40xΦ203mm |
Total power of grinder | 11kw | 13kw | 13kw |
Overall dimension of grinder(mm) | 1623x986x1730 | 2100x1365x1863 | 2100x1365x1863 |
Packing size of grinder(mm) | 2620x1340x2170 | 2560x16000x2250 | 2560x16000x2250 |
Net weight/gross weight (kg) (approximate) | 2600/2800 | 4000/4300 | 4100/4400 |
