VERTICAL CYLINDER BORING MACHINE
US$ 1,000 - 1,500
MOQ: 10 Sets
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Brand Name:
TIMAC
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
VERTICAL CYLINDER BORING MACHINEUS$ 1,000 - 1,500MOQ: 10 Sets -
VERTICAL CYLINDER HONING MACHINEUS$ 4,500 - 6,000MOQ: 1 Set
-
Line Boring Machine for Cylinder Heads and Blocks T8108US$ 2,000 - 6,000MOQ: 1 Set
-
Cylinder Body Bushing Boring Machine T8115 & T8120NegotiableMOQ: 1 Set
-
Brake Lathe C9370C / Brake Drum Lathe / Brake Disk LatheNegotiableMOQ: 1 Set
Condition
New
CNC or Not
Normal
Brand Name
TIMAC
Model Number
T8014A
Specifications
1. Cylinder boring;2. Boring dia.: 65-140mm;
3. Boring depth: 300mm;
4. Spindle reset: 636mm;
5. Spindle speed: 250/380rpm

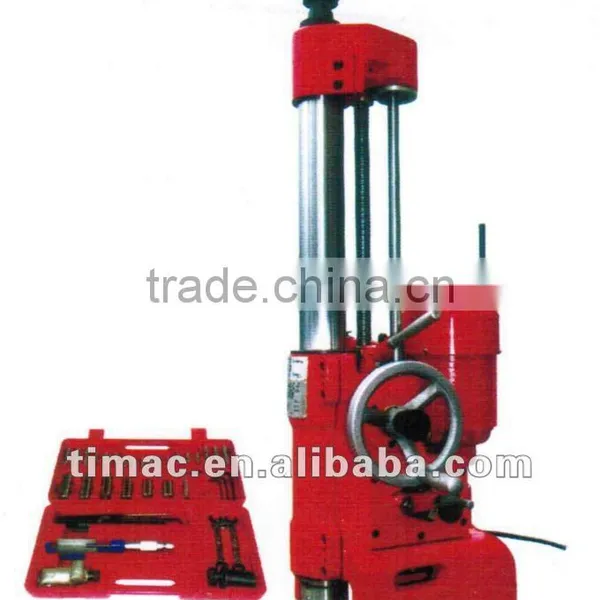

VERTICAL CYLINDER BORING MACHINE
Features:
The boring machine is mainly used for reboring engine cylinders of automobiles motor cycles and middle & small tractors.
* Reliable performance, widely use, processing accuracy high productivity.
* Easy and flexible operation.
* Good rigidity, amount of cutting.
| Specification | Unit | T8014A | |
| Boring diameter | mm | Φ65-Φ140 | |
| Max. boring depth | mm | 300 | |
| Spindle speed | r/min | 250, 380 | |
| Spindle feed | mm/r | 0.11 | |
| Spindle quick reset | mm/min | 636 | |
| Voltage | v | 220 | 380 |
| Motor power | kw | 0.25 | 0.37 |
| Motor speed | r/min | 1440 | |
| Overall dimensions | mm | 320x330x850 | |
| Machine weight | kg | 62 | |
