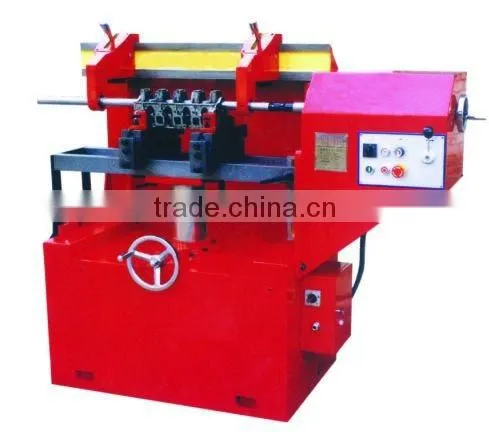

Line Boring machine for Cylinder heads & blocks
Features:
1. Line boring machine T8108 is a small size machine which, however, has a wide range of application. 2. Though it has been specially designed for reconditioning the seat of cylinder head camshafts with through of blind axis.
3. It can also be used for reconditioning the seat of cylinder block crankshafts in cars and light-weight trucks.
4. The machine is sturdy, compact and allows accurate machining.
Specification |
T8108 |
Boring range |
Φ24-Φ85 mm |
Max.travel of shaft |
100 mm |
Max.boring length |
Φ20 x 900 mm |
Φ32 x 980 mm | |
Main shaft rotating speed |
245, 380 rpm |
Boring shaft feed |
Stepless |
Distance between cylinder fixture and boring shaft center |
45-295mm |
Motor power |
0.55/0.75 Kw |
Overall dimensions ( L×W×H) |
1620×700×1370 mm |
Packing dimensions (L×W×H) |
1740×920×1700 mm |
N.W./G.W. |
600/750 kg |
