VERTICAL CYLINDER HONING MACHINE
US$ 4,500 - 6,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Honing machine
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Line Boring Machine for Cylinder Heads and Blocks T8108US$ 2,000 - 6,000MOQ: 1 Set -
Cylinder Body Bushing Boring Machine T8115 & T8120NegotiableMOQ: 1 Set
-
Brake Lathe C9370C / Brake Drum Lathe / Brake Disk LatheNegotiableMOQ: 1 Set
-
20~90mm Boring Dia./ Gas Valve Seat Boring Machine / T8590AUS$ 3,500 - 15,980MOQ: 1 Set
-
170mm Honing Dia./ Vertical Cylinder Honing Machine / THM170US$ 3,500 - 15,980MOQ: 1 Set
Condition
New
Type
Other, Honing machine
CNC or Not
Normal
Brand Name
TIMAC
Model Number
3MB9817

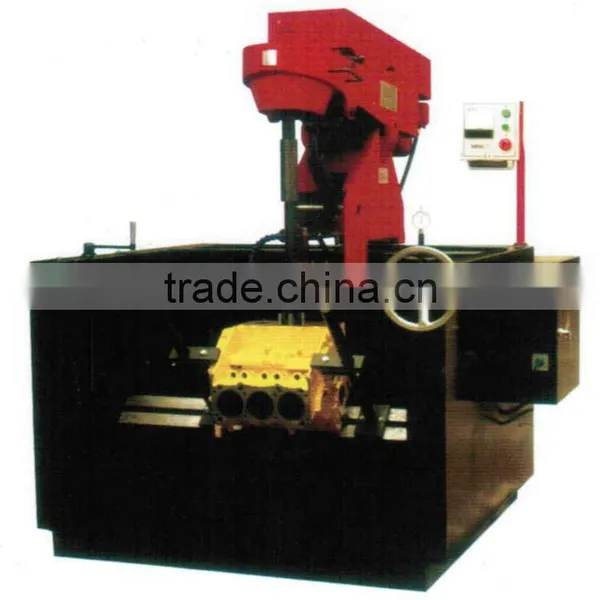

VERTICAL CYLINDER HONING MACHINE
Features:
The machine is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles motor cycles and tractors and also for making other element holes.
* The machine table can shift of the fixture change 0°, 30°, 45°.
* The machine table is easily up and down manually 0-180mm.
* Reverse precision 0-0.4mm.
* Select mesh-wire degree 0°-90° or non-mesh-wire.
* Reciprocating speed of up and down 0-30m/min.
* The machine is reliable performance widely use honing, easy operation and high productivity.
* Good rigidity, amount of cutting.
| Specification | Unit | 3MB9817 |
| Diameter of hole honed | mm | 25-170 |
| Max. depth of hole honed | mm | 320 |
| Spindle speed (2 steps) | rpm | 120, 160, 225, 290 |
| Spindle stork (2 steps) | s/min | 35, 44, 65 |
| Power of main motor | kw | 1.5 |
| Power of cooling pump motor | kw | 0.125 |
| Machine working table dimensions (LXW) | mm | 1400x870 |
| Overall dimensions (LXWXH) | mm | 1640x1670x1920 |
| Machine weight | kg | 1000 |
