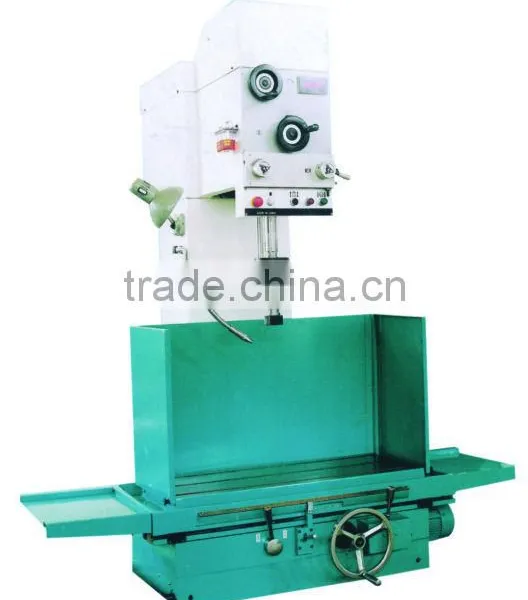

Vertical Cylinder Honing Machine 2M2217A
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
TIMAC
Payment & Shipping
Payment Methods:
Port of Shipment:
China port.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Con-Rod Boring and Grinding Machine TM8216NegotiableMOQ: 1 Set -
T8210D,T8216 Con-rod Bushing Boring MachineNegotiableMOQ: 1 Set
-
Cylinder Body Bushing Boring MachineNegotiableMOQ: 1 Set
-
Line Boring Machine For Cylinder Heads And BlocksNegotiableMOQ: 1 Set
-
Cylinder Boring Machine T8018A,T8018B,T8018C/High QualityNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Henan, China
Brand Name
TIMAC
Model Number
2M2217A
Specifications
1.Honing dia. range 40-170mm;2.Honing depth 300mm.
| Specification | 2M2217A | |
| Honing diameter range | 40-170mm | |
| Max. honing depth | 300mm | |
| Telescopic length spindle connecting rod | 120mm | |
| Spindle speed (4 steps) | 130, 180, 240, 365mm/min | |
| Spindle reciprocation speed (stepless) | 3-18m/min | |
| Max. spindle travel | 270mm | |
| Distance from spindle axis to column vertical plane | 300mm | |
| Table dimensions | 400×1000mm | |
| Table longitudinal travel | 800mm | |
| Machining accuracy | Roundness | 0.003mm |
| Cylindricity | 0.005mm | |
| Surface roughness | Ra0.4 | |
| Overall dimensions (L×W ×H) | 1900×1176×2169mm | |
| Packing Dimension (L×W×H) | 1440×1770×2225mm | |
| N.W./G.W. | 2500/3000kg | |
The machine is mainly used for honing cylinder body holes and sleeves holes for various engines and other sccurate holes.
* Stepless of spindle turning, reciprocating;
* The short stroke machine can be used for making the workpiece conveniently.
* The diameter of the honing head can be varied in the honing process according to the user need.
