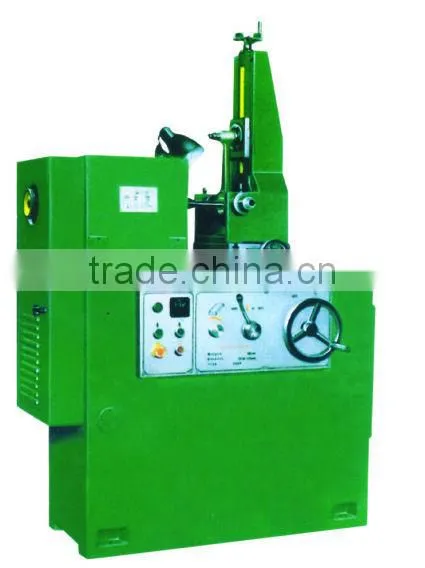

T8210D,T8216 Con-rod Bushing Boring Machine

T8210D,T8216 Con-rod Bushing Boring Machine thumbnail-1
T8210D,T8216 Con-rod Bushing Boring Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Place of Origin Henan, China
Brand Name TIMAC
Model Number T8210D,T8216

Specifications

1.Boring dia. range 16-100mm/15-150mm;
2. Fine boring rod bushing hole;
3. Easy operation;

Specification

T8210D

T8216

Diameter range of boring hole

16-100 mm

15-150 mm

Centre distance of link two hole

100-425 mm

85-600 mm

Longitudinal travel of worktable

220 mm

320 m

Spindle speed

350, 530, 780, 1180 rpm

140, 215, 355, 550, 785, 1200 rpm

Transverse adjusting amount of fixture

80 mm

80 mm

Feeding speed of worktable

16-250 mm/min

16-250 mm/min

Traveling speed of working

1800 mm/min

1800 mm/min

Diameter of boring bar (4 class)

14, 16, 24, 40 mm

14, 29, 38, 59 mm

Main motor power

0.65/0.85 Kw

0.85/1.1 Kw

Motor power of oil pump

0.55 Kw

0.55 Kw

Overall dimensions(L×W×H)

1150×570×1710 mm

1300×860×1760 mm

Packing dimensions(L×W×H)

1700×950×1450 mm

1850×1100×1700 mm

N.W/G.W

700/900 kg

900/1100 kg



Features:

1. Con-rod boring machine has good performance, better structure, easy operation and high accuracy and can meet customer’s demand.

2. The machine is mainly used in boring rod bushing hole (rod bushing and copper bush) of diesel and gasoline engine of automobiles and tractors.

3. In case of necessity, rod bushing seat hole can be fine-bored.

4. The rough and fine boring processing for the holes on other parts can be also completed after changing the corresponding clamps.

5. Besides, it has the accessories for centering sectifying tools, boring tools and micro-adjustment tools holder etc.
