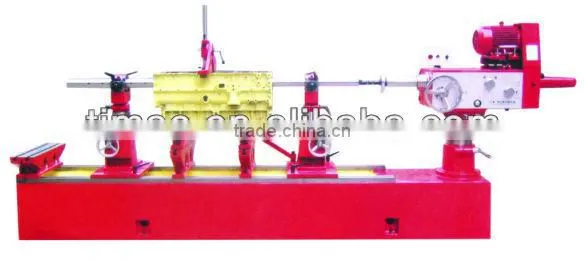

Help CenterCylinder Body Bushing Boring Machine
Related Products
-
Line Boring Machine For Cylinder Heads And BlocksNegotiableMOQ: 1 Set -
Cylinder Boring Machine T8018A,T8018B,T8018C/High QualityNegotiableMOQ: 1 Set
-
Cylinder Boring MachineNegotiableMOQ: 1 Set
-
Vertical Boring Machine T7240NegotiableMOQ: 1 Set
-
Vertical Boring Machine T716A,T7220B,T7220CNegotiableMOQ: 2 Sets
Specifications
1.Boring dia. 36-120mm;2. Max. boring length 2000mm;
Specification |
T8115 |
T8120 |
Range of hole diameter to be bored |
φ36-Φ150mm |
φ36-φ200mm |
Max. length of cylinder body to be bored |
1600mm |
2000mm |
Main shaft max. elongation |
300mm |
300mm |
Main shaft rotating speed(6 steps) |
210-945rpm |
210-945rpm |
Boring shat feed |
0.044, 0.167mm/r |
0.044, 0.167mm/r |
Motor power |
0.75/1.1kw |
0.75/1.1kw |
Overall diemension(LxWxH) |
3500x800x1500mm |
3900x800x1500mm |
Packing diemension(LxWxH) |
3650x1000x1600mm |
4040x1020x1600mm |
N.W/G.W |
1900/2200kg |
2200/2500kg |
Features:
1. This machine is used for boring master bushing and bushing of engine & generator's cylinder bodier in automobiles, tractors and ships etc.
2. With long travel of tool feeding, which can improve the work efficiency and coaxial of bored bushing.
3. The boring bar is special heat treatment, which can improve the rigidity and hardness of the boring bar and working precision availably.
4. The auto-feeding system adopts stepless adjusting, suits for processing all kinds of materials and hole diameter of the bushing.
5. With special measuring device, it is easily to measure the work piece.
