Home > Manufacturing & Processing Machinery > Machine Tools > Boring Machine > Vertical Fine Boring-Milling Machine T7240

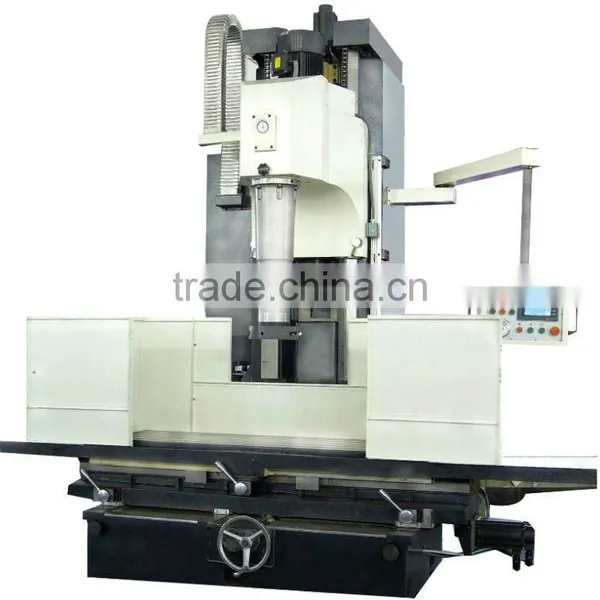

Vertical Fine Boring-Milling Machine T7240

Name: Vertical Fine Boring-Milling Machine T7240
Brand: TIMAC
SKU: 140797114
Availability: InStock

Vertical Fine Boring-Milling Machine T7240 thumbnail-1

Vertical Fine Boring-Milling Machine T7240 photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

Normal

Place of Origin:

Henan, China

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port.

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not Normal

Place of Origin Henan, China

Brand Name TIMAC

Model Number T7240

Certification CE, ISO Standard

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Big vertical boring machine;
2. Boring dia. 400mm;
3. PLC control;
4. Stepless speed change regulating;

Features:

1. The machine is mainly use for boring large and deep holes(such as cylinder body of locomotive, steamship, car), also can milling the surface of the cylinder.

2. Servo-motor control the table longitudinal move and the spindle up and down, Spindle rotation adopts variable-frequency motor to adjust the speed, so it can achieve the stepless speed change regulating.

3. Electricity of the machine are designed for PLC and man-machine interaction.

Specifications	T7240
Max.boring diameter	Φ400mm
Max. boring depth	750mm
Spindle carriage travel	1000mm
Spindle speed(stepless speed change for frequency conversion)	50~1000r/min
Spindle feed travel speed	6~3000mm/min
Distance from spindle axis to carriagevertical plan	500mm
Distance from spindle end-face to table surface	25~ 840 mm
Table dimensions L x W	500X1600 mm
Table working slot	5
Table longitudinal travel	1600mm
Table longitudinal travle speed	6~3000mm/min
Table latirudinal travel	300mm
Main motor ( Variable-frequency motor)	33HZ,5.5KW
Table ongirudinal travel motor(Serve motor)	15Nm
Travel motor of spindle(Serve motor)	15Nm
Boring dimension accuracy	IT7
Milling dimension accuracy	IT8
Rundness	0.008mm
Clingricity	0.02mm
Boring roughness	Ra1.6
Milling roughness	Ra1.6-Ra3.2
Overall dimensions	2281X2063X3140mm
