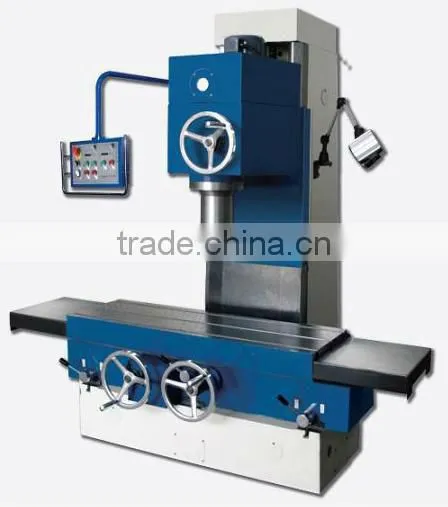

Vertical Fine Boring Machine T170S

Zhengzhou Timeway Machine Tool Co., Ltd.
Vertical Fine Boring Machine T170S thumbnail-1
Vertical Fine Boring Machine T170S photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Vertical
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China port.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Vertical
CNC or Not Normal
Place of Origin Henan, China
Brand Name TIMAC
Model Number T170S
Power(W) 3kw
Certification CE, ISO Standard
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Vertical boring machine;
2. Boring diameter 170mm;
3. Boring accurate holes;

Features:

The machine can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors, as well as various high precision holes boring.







SpecificationT170S
Max. boring diameterΦ170 mm
Max. boring depth400 mm
Max. drilling & reaming diameterΦ30 mm
Spindle speed80-860 r/min
Feeding of the spindle14-810 mm/min
Rapid moving speed of the spindle810 mm
Spindle travel590 mm
Distance between spindle end face and table0-500 mm
Distance between spindle axis and carriage vertical plane330 mm
Max. longitudinal travel of working table1100 mm
Max. cross travel of the working table80 mm
Working table size (W×L)400×1250 mm
Quantity of “T” Slot3 qua.
Main motor3 Kw
Boring precisionDimension PrecisionH7
Boring roughnessRa 2.5
Overall dimensions (L×W×H)2100×1430×2010 mm
Packing dimensions (L×W×H)1820×1770×2190 mm
N.W./G.W.2500/2800 kg
