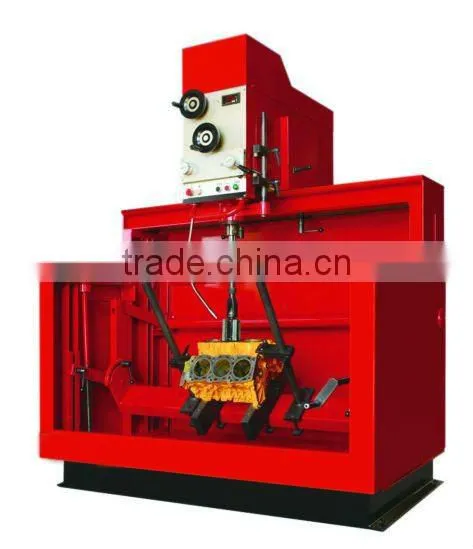

Help CenterVertical Fine Honing Machine THM170
Related Products
-
"TXM Series"Vertical Fine Boring & Grinding-milling MachineNegotiableMOQ: 1 Set -
Vertical Fine Boring-milling Machine TX170A/TX200A/TX250ANegotiableMOQ: 1 Set
-
Vertical Fine Boring-Milling Machine T7240NegotiableMOQ: 1 Set
-
Vertical Fine Boring Machine T170SNegotiableMOQ: 1 Set
-
Brake Drum Lathe/Disc Cutting MachineNegotiableMOQ: 1 Set
Specifications
1. Vertical cylinder honing machine;2. Max. honing dia. 170mm;
3. Max. honing depth 360mm;
Features:
1. Hydraulic vertical honing machine with head provided with pneumatic system for an easy honing spindle longitudinal and transversal positioning on the workpiece.
2. The block supporting base is adjustable in the height and inclination to allow the assembling of flat and "V"blocks.
3. Honing spindle with steplessly variable ratation speed visualized on the control panel.
Specification |
Unit |
THM170 |
Max. dia. of the hole honed |
mm |
φ170 |
Max. depth of the hole honed |
mm |
360 |
Spindle speed(stepless) |
r.p.m |
100-300 |
Roundness |
mm |
0.0025 |
Cylindricity |
mm |
0.005 |
Surface roughness |
Ra0.2 |
|
Table longitudinal travel |
mm |
1100 |
Table cross travel |
mm |
80 |
Table max. loading |
kg |
200 |
Main motor |
kw |
1.1 |
Hydraulic station motor |
kw |
1.5 |
Coolant pump motor |
w |
90 |
Spindle reciprocation speed(stepless) |
m/min |
0-18 |
Overall dimensions(LxWxH) |
mm |
1820x1440x2170 |
Packing dimensions(LxWxH) |
mm |
2210x1610x2270 |
N.W/G.W |
kg |
1200/1400 |
