Brake Drum Lathe C9350 C9350C

Zhengzhou Timeway Machine Tool Co., Ltd.

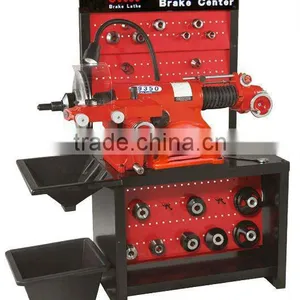

Brake Drum Lathe C9350 C9350C thumbnail-1

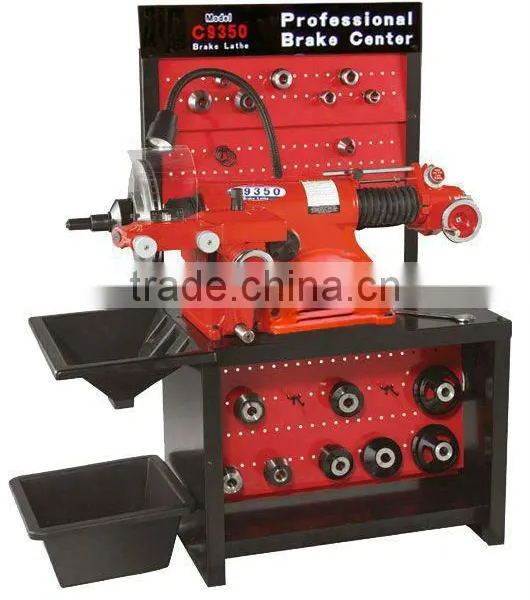

Brake Drum Lathe C9350 C9350C photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
TIMAC
Model Number:
C9350 C9350C C9370 C9370C C9372
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China port.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name TIMAC
Model Number C9350 C9350C C9370 C9370C C9372
Condition New
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Brake lathe;
2. Cutting drum & rotor;
3. 3kinds of spindle speed;
4. Spindle travel 175mm.

SpecificationC9350C9350CC9370C9370CC9372
Spindle travel6-7/8″/175mm9.875″/251mm9″/229mm
Spindle speed70,88,118RPM70,88,118 RPM70-320RPM
Spindle feed speed0.002″/0.05mm-0.02″/0.5mm Rev0.002″/0.05mm-0.02″/0.5mm RevRotor and drum feed rates 0-0.66mm
Cross feed speed0.002″/0.05mm-0.02″/0.5mm Rev0.002″/0.05mm-0.01″/0.25mm Rev
Handwheel graduations0.002″/0.05mm0.002″/0.05mm
Rotor diameter7″/180mm-15″/381mm7″/180mm-18″/457mm4″/102mm-24″/610mm
Rotor thickness1-7/8″/48mm4″/102mm2.85"/73mm
Drum diameter6″/152mm-28″/711mm6″/152mm-28″/711mm6″/152mm-28″/711mm
Drum depth6-7/8″/175mm9.875″/251mm9″/229mm
Motor1P/220V/50HZ ,1P/110V/60HZ,3P/380V/50HZ1P/220V/50HZ ,1P/110V/60HZ,3P/380V/50HZ110V/220V, 50/60HZ
Gross weight290kg400kg300kg
Dimension (L×W×H)970×920×1140mm1100×1070×1140mm1130×720×750mm



Features:
1. Quickly, accurately and efficiently to cutting rotor.
2. Fast and slow setting allow cutting rotor.
3. Quickly, accurately and efficiently to cutting drum.
4. Finitely adjustably setting allow cutting drum.
5. Three kinds of speed 70,88,118 rpm to choose for spindle speed.
6. A convenient design allows to quickly change from rotor to drum, with cross feed extension plate will be increase the maximum rotor diameter to 22’/588mm.
7. Position of stop make the lathe stop automatically after cutting.
8. Fully equipped with adapter package.
