Home > Manufacturing & Processing Machinery > Machine Tools > Boring Machine > Valve Seat Boring Machine TQZ8560

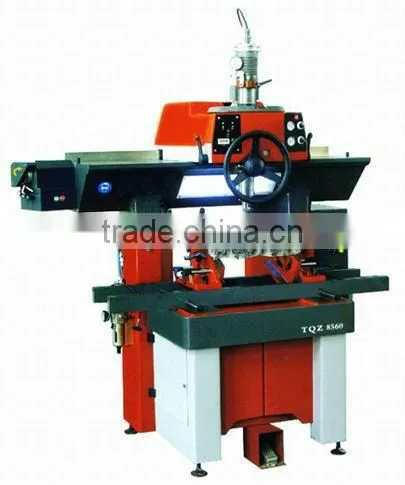

Valve Seat Boring Machine TQZ8560

Name: Valve Seat Boring Machine TQZ8560
Brand: TIMAC
SKU: 140797098
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

Valve Seat Boring Machine TQZ8560 thumbnail-1

Valve Seat Boring Machine TQZ8560 photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Henan, China

Brand Name:

TIMAC

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China port.

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Henan, China

Brand Name TIMAC

Model Number TQZ8560

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Air float auto centering gas valve seat boring machine
2. Straight and V valve seats

Specification	TQZ8560
Spindle travel	200 mm
Spindle speeds	30~750/1000rpm
Boring range	Φ14~Φ60 mm
Spindle swing angle	5°
Spindle cross travel	950 mm
Spindle longitudinal travel	35 mm
Ball seat move	5 mm
Angle of clamping device swing	+50°; -45°
Spindle motor power	0.4KW
Air supply	0.6~0.7Mpa; 300L/min
Max. size of cylinder cap for repairing	1200x500x300mm
Machine weight	1050/1200kg
Overall dimension	1600x1050x2170mm

Features:
*Model TQZ8560 valve seat boring machine is suitable for repairing the valve seat of automobiles, motorcycle, tractor and other engines. It also can be used to drilling and boring etc.
*The machine features are airfloating, vacuum clamping, high positing precision, easy operation. *The machine is set with grinder for cutter and vacuum check device for workpiece.

1. Moden technic, new design;
2. Air floating, air vacuum clamping, auto-centering, high, positing precision;
3. Straight and V valve seats;
4. 30°, 45°, 60°and multy-angle cutter;
5. Central operation, quick clamping;
6. Spindle frequency coverter, unstep speeds;
7. High quality surface, different clour paint;
