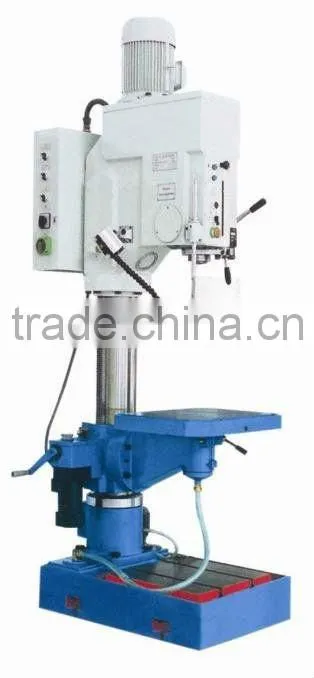

50mm Max.drilling Dia Vertical Drilling Machine Z-50A

Name: 50mm Max.drilling Dia Vertical Drilling Machine Z-50A
Brand: TIMAC
SKU: 140797004
Availability: InStock

US$ 1,000 - 5,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Brand Name:

TIMAC

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Brand Name TIMAC

Model Number Z-50A

Specifications

1.Z-50A vertical drilling machine
2.Drilling capacity:50mm
3.Table travel:420mm

Vertical Drilling Machine Z-50A

Technical Parameter

Model	Z-30A	ZB-32A	Z-32A	Z-35A	Z-40	Z-50A	Z-50C
Max. Drilling capacity(mm)	30	32	32	35	40	50	50
Max.Tapping capacity(mm)	M20	M20	M20	M24	M27	M30	M30
Diameter of column(mm)	120	120	120	140	160	160	160
Spindle travel(mm)	135	160	160	200	180	240	180
Distance Spindle axis to column(mm)	320	350	350	330	360	360	360
Max.Distance spindle nose to table(mm)	550		630	630	600	600(580)	600(580)
Max.Distance spindle nose to base(mm)	1100	750	1200	1200	1200	1200	1200
Spindle taper	MT3	MT4	MT4	MT4	MT4	MT4	MT4
Spindle speed rang(r/min)	65~2600	65~2600	65~2600	65~2600	42~2050	42~2050	48~1500
Spindle speeds series	12	12	12	12	12	12	stepless
Spindle feeds(mm/r)	0.1, 0.2, 0.3	0.1, 0.2, 0.3	0.1, 0.2, 0.3	0.1, 0.2, 0.3	0.1, 0.2, 0.3, 0.4	0.1, 0.2, 0.3, 0.4	0.08, 0.16, 0.27, 0.35
Dimension of worktable surface(mm)	500×450		500×450	450×390	510×380	510×380	510×380
Max. travel of worktable (mm)	480		550	520	420	420	320
Dimension of base(mm)	400×360	42×400	480×450	405×395	450×440	450×440	450×440
Worktable and base T-slot(mm)	2-14; 2-18	2-18	2-14; 2-18	2-14; 2-18	2-14; 2-18	2-14; 2-18	2-14; 2-18
Power of Main motor (kW)	1.0/1.5	1.0/1.5	1.0/1.5	1.5/2.2	2.2/2.8	2.2/2.8	2.4/3.0
Coolant motor (L/Min)	6	6	6	6	6	6	6
G.W/N.W (kg)	500/440	470/420	550/500	600/550	750/690	750/690	730/670
Packing dimennsion (cm)	94×57×225	85×55×142	103×61×209	100×61×215	110×67×215	110×67×223	110×67×215
