Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > 40mm Drilling Dia. Rocker Driller Machine RD416

40mm Drilling Dia. Rocker Driller Machine RD416

Name: 40mm Drilling Dia. Rocker Driller Machine RD416
Brand: TIMAC
SKU: 140797008
Availability: InStock

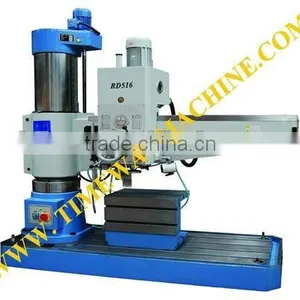

40mm Drilling Dia. Rocker Driller Machine RD416 thumbnail-1

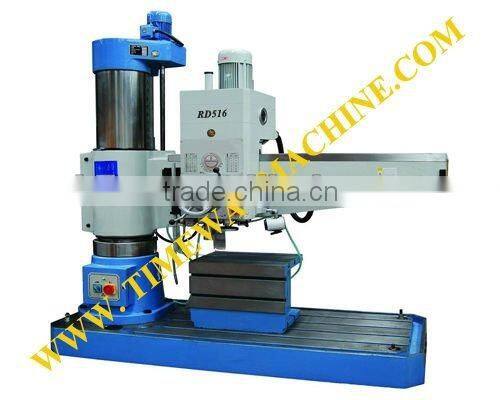

40mm Drilling Dia. Rocker Driller Machine RD416 photo-1

US$ 1,500 - 12,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

Normal

Brand Name:

TIMAC

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not Normal

Brand Name TIMAC

Model Number RD416,RD512,RD516,RD520

Radial Drilling Machine RD416,RD512,RD516,RD520

Feature:

Rocker Driller Machine

1. The radial drilling machine is new series with diversified fuctions of product which has been designed and accomplished referring to international standard ISO in the recent years.

2. In this machine, hydraulic preselection speed and feed change mechanisms are adopted, the spindle head, radial arm and column are clamped by hydraulic clamping mechanisms.

3. The forward, reverse, stop(braking), as well as the setting of spindle in neutral position are all controlled by a single lever, the machine has characteristics features of perfect performance, safe, reliable and easy operation, convenient maintenance, high-accuracy, ample rigidity and long service long.

4. It is used for drilling, counter boring, spot facing, reaming, tapping and boring, widely used in every department of mechaninal machining.

Parameter:

Specification	RD416	RD512	RD516	RD520
Max.Drilling capacity (mm)	40	50	50	50
Distance spindle axis to column generating line (mm)	350-1600	350-1250	350-1600	350-2000
Diameter of column (mm)	350	350	350	350
Spindle taper	MT4	MT5	MT5	MT5
Spindle travel (mm)	315	315	315	315
Spindle speeds range (r/min)	25-2000	25-2000	25-2000	25-2000
Spindle speeds steps	16	16	16	16
Range of Spindle feeds (mm/r)	0.04-3.2	0.04-3.2	0.04-3.2	v
Spindle feeds steps	16	16	16	16
Max.Distance spindle nose to working surface of base (mm)	350-1250	320-1220	320-1220	320-1220
Dimension of worktable (mm)	630×500×500	630×500×500	630×500×500	630×550×500
Dimension of base (mm)	2400×1000×200	2050×1000×200	2400×1000×200	2400×1000×200
Overall Size (mm)	2500×1060×2650	2150×1060×2650	2500×1060×2650	2900×1060×2650
Power of Main motor (KW)	3	4	4	4
G.W/N.W (kg)	3900/3500	3500/3100	3900/3500	3950/3550
Packing dimension (cm)	270×112×258	240×112×252	270×112×258	320×112×258
