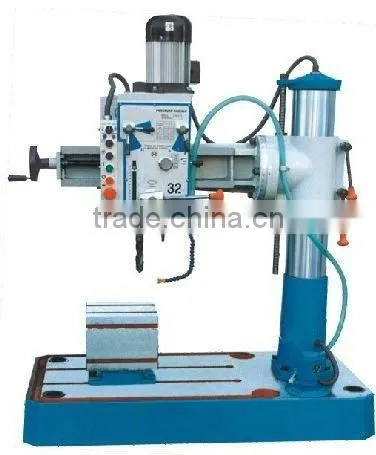

32mm Drilling Capacity Hydraulic Radial Driller Machine

Name: 32mm Drilling Capacity Hydraulic Radial Driller Machine
Brand: TIMAC
SKU: 140797006
Availability: InStock

US$ 1,000 - 2,500 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Brand Name:

TIMAC

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Brand Name TIMAC

Model Number RL307

Specifications

Hydraulic Radial driller Machine
1) Max drilling dia 32mm
2) Taladro Radial

Feature:

Hydraulic Radial driller Machine

1.With wide range of speed,with manual,power feeds.The feed of machnes are very easily engaged and disengaged at any time.

2.The radial arm can rotated and can tilted ± 45°,it reliable and easy job can be done.

3.Main parts are made by machine center whichimportfrom KIA with high precision and efficiency,ensuringreliablity and high quality.

4.The machine with small apperance andmuch function,the machine are widely usedfor drilling, counterboring,reaming,tapping etc.

Parameter:

Specification	Unit	RL307
Max. Drilling capacity	mm	32
Distance spindle axis to column generating line	mm	300~700
Diameter of column	mm	150
Spindle taper		MT3
Spindle travel		150
Spindle speeds range	r/min	100~1600
Spindle speeds steps		8
Spindle feeds	mm/r	0.08,0.14,0.23
Spindle feeds steps		3
Rotary angle of rocker in horizontal plane	°	360
Distance between spindle nose to working surface of base	mm	275~680
Dimension worktable	mm	250×250×250
Dimension of base	mm	1200×625×255
Overall size	mm	1235×625×1230
Motor	w	0.75 or 1.1
G.W./N.W.	Kg	675/580
