Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > 20/25/30 Drilling Dia. Vertical Drilling Machine

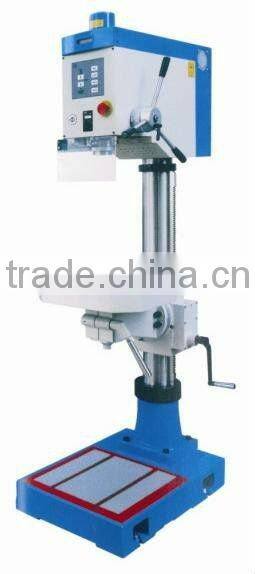

20/25/30 Drilling Dia. Vertical Drilling Machine
US$ 1,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Brand Name:
TIMAC
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
50mm Geared Head Pedestal Drills -- D-50AUS$ 1,000 - 5,000MOQ: 1 Set -
35mm Max.drilling Dia Vertical Drilling Machine DC-35BUS$ 1,000 - 5,000MOQ: 1 Set
-
50mm Max.drilling Dia Vertical Drilling Machine Z-50AUS$ 1,000 - 5,000MOQ: 1 Set
-
32mm Drilling Capacity Hydraulic Radial Driller MachineUS$ 1,000 - 2,500MOQ: 1 Set
-
40mm Drilling Dia. Rocker Driller Machine RD416US$ 1,500 - 12,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Brand Name
TIMAC
Model Number
Z4
Specifications
Vertical Drilling Machine1.Drilling capacity:30mm
2.Table size:440*390
Variable Speed Vertical Drilling Machine D4
Technical Parameter
| Model | Unit | Z2 | Z3 | Z4 |
| Max. drilling capacity | mm | 20 | 25 | 30 |
| Max. tapping capacity | mm | 12 | 14 | 20 |
| Taper of spindle hole | MT2 | MT3 | MT3 | |
| Spindle speed | r.p.m | 100-1500 | 100-1800 | H:200-1800 L:100-900 |
| Distance from spindle axis to column surface | mm | 250 | 280 | 310 |
| Max.distance from spindle nose to worktable | mm | 380 | 460 | 600 |
| Max. distance from spindle nose to base surface | mm | 750 | 930 | 1160 |
| Dimension of workable surface | mm | 320x360 | 400x350 | 440x390 |
| Diameter of column | mm | 90 | 110 | 120 |
| Overall height | mm | 1218 | 1450 | 1805 |
| Output motor | w | 1000 | 1500 | 1500 |
| T slot size | mm | 12 | 14 | 14 |
| Overall size:(LxBxH) | mm | 680x386x1218 | 740x450x1450 | 844x558x1805 |
| Packing size:(LxBxH) | mm | 805x570x1395 | 860x605x1615 | 900x640x2010 |
| N.W./G.W. | kg | 230/300 | 330/400 | 580/660 |
