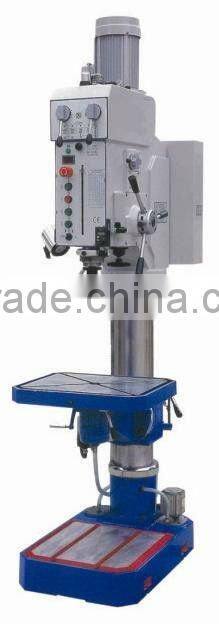

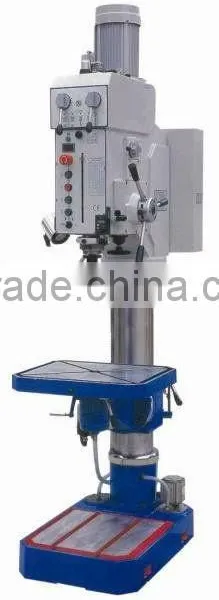

50mm Geared Head Pedestal Drills -- D-50A

Name: 50mm Geared Head Pedestal Drills -- D-50A
Brand: TIMAC
SKU: 140797000
Availability: InStock

US$ 1,000 - 5,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Drilling Speed:

52-1400 r.p.m

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Drilling Speed 52-1400 r.p.m

Brand Name TIMAC

Model Number D-50A

Voltage As per customer request

Power(W) 2.2kw

Dimension(L*W*H) 940x680x2405mm

Weight 675kg

Certification CE norms, ISO9001

Specifications

Vertical Drill Machine
1.Drilling capacity:50mm
2.Taping dia: M27
3. Spindle speed: 52-1400 r.p.m
4. CE norms

Geared Head Pedestal Drills D-50A

Parameter

Model	D-30A	D-32A	D-35A	D-40A	D-50A
Max. Drilling dia.(steel) & taping diameter(mm)	Φ30/M20	Φ32/M20	Φ35/M22	Φ40/M24	Φ50/M27
Max. travel of spindle (mm)	135	150	160	190	200
Throat depth (mm)	260	300	320	340	360
Max. distance from spindle nose to surface of worktable (mm)	670/685	800	585	665	590
Max. distance from spindle nose to surface of base worktable (mm)	1150/1165	1225	1140	1195	1175
Max. travel of spindle box (mm)	180	270
Max. travel of worktable bracket/Manual(Mechanical) (mm)	605/500	550	545	570(450)	530(410)
Swivel angle of worktalbe	±45°		±45°	±45°	±45°
Spindle taper bore (MT)	3	4	4	4	4
Spindle speed steps	12	12	12	12	12
Spindle speed range (r/min)	125-3030	78-2500	125-3030	76-2065	52-1400
Spindle feed steps	3		3	3	4
Spindle feed range (mm/r)	0.1-0.3		0.1-0.3	0.1-0.3	0.1-0.4
Dimension of worktable(mm)	420x350	190	500x420	520x440	580-460
Effective workig area of worktable	335x340	365x415	400x360	405x395	445x435
Diameter of column (mm)	Φ110		Φ120	Φ140	Φ160
Power of motor (kw)	0.85/1.1	1/1.3/1.7	1/1.2	1.5	2.2
Machine dimension (mm)	700x465x2060	780x505x1910	835/510x1730	849x545x2290	940x680x2405
Packing dimension (mm)	870x550x2220	880x620x1980	940x570x2120	1000x650x2220	1170x680x2300
Net weight/gross weight (kg)	340/380	420/465	430/475	565/615	620/675
