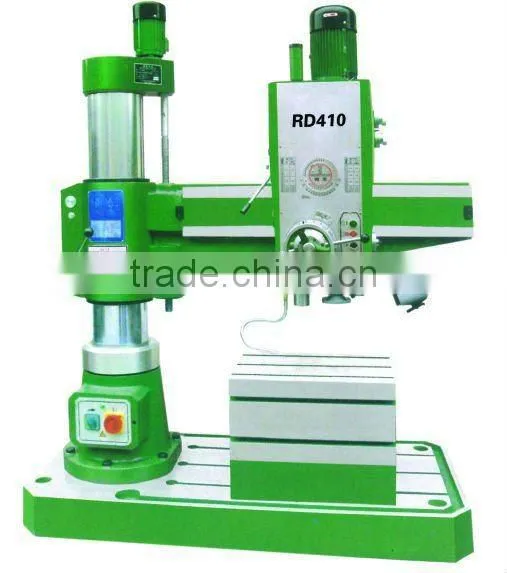

40 Drilling Dia. Hydraulic Arm Radial Drill Press / RD410

Name: 40 Drilling Dia. Hydraulic Arm Radial Drill Press / RD410
Brand: TIMAC
SKU: 140796996
Availability: InStock

US$ 1,500 - 12,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Drilling Speed:

32-2500 r.p.m

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Drilling Speed 32-2500 r.p.m

Brand Name TIMAC

Model Number RD410

Voltage As per customer's request

Power(W) 2.2kw

Dimension(L*W*H) 187 x 97 x 217cm

Weight 1600kg

Certification ISO9001; CE

Parameter:

Model	RD310/RD410	RD416	RD516	RD520	RD620	RD825	RD1030	RD1240
Max.drilling capacity(mm)	32/40	40	50	50	63	80	100	125
Distance spindle axis to column	300-1000	350-1600	350-1600	350-2000	450-2050	500-2500	570-3150	600-4000
DistancEe of column(mm)	240	350	350	350	450	550
Spindle taper	MT4	MT4	MT5	MT5	MT5	MT6	MT6	Metric80
Spindle travel	280	315	315	315	400	450	500	560
Spindle speeds range(r/min)	32-2500	25-2000	254-2000	25-2000	25-1600	16-1250	8-1000	6.3-800
Spindle speeds steps	16	16	16	16	16	16	16	16
Range of spindle feeds	0.10-1.25	0.04-3.2	0.04-3.2	0.04-3.2	0.04-3.2	0.04-3.2	0.06-3.2	0.06-3.2
Spindle feeds steps	8	16	16	16	16	16	16	16
Max.distance spndle nose to working surface of base(mm)	220-1000	350-1250	320-1220	320-1220	400-1600	550-2000	750-2500	750-2500
Dimension of worktable(mm)	600×450×450	630×500×500	630×500×500	630×550×500	960×630×500	1000×800×560	1250×800×560	1250×800×560
Dimension of base(mm)	1710×800×160	2400×1000×200	2400×1000×200	2400×1000×200	2900×1250×250	3530×1400×300
Overall size(mm)	1760×800×2050	2500×1060×2650	2500×1060×2650	2900×1060×2650	3110×1250×3150	3730×1400×3790	4780×1630×4600	5910×2000×5120
Power of main motor	2.2	3	4	4	5.5	7.5	15	18.5
G.W/N.W(kg)	2100/1600	4500/3500	4300/2500	4350/3550	8000/7000	15000/11000	20000	28500
Packing dimension(cm)	187×97×217	270×112×258	270×112×258	320×112×258	347×147×235	416×165×248
