Drilling Milling Machine

Name: Drilling Milling Machine
Brand: TIMAC
SKU: 140796944
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 500 - 4,500 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Brand Name:

TIMAC

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Brand Name TIMAC

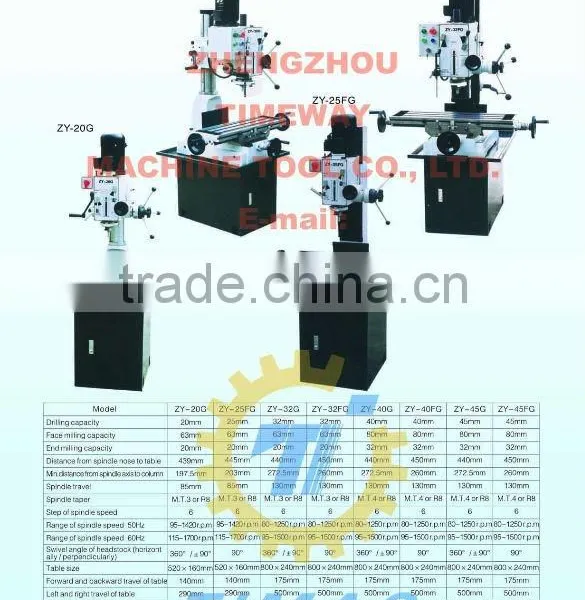

Model Number ZY-20G,ZY-25FG,ZY-32G,ZY-32FG,-40G,ZY-40FG,ZY-45G,ZY-45FG

Specifications

Drilling milling machine
Round column or square column drilling milling machine

Drilling milling machine
Round column or square column drilling milling machine

Model	ZY-20G	ZY-25FG	ZY-32G	ZY-32FG	ZY-40G	ZY-40FG	ZY-45G	ZY-45FG
Drilling capacity	20mm	25mm	32mm	32mm	40mm	40mm	45mm	45mm
Face milling capacity	63mm	63mm	63mm	63mm	80mm	80mm	80mm	80mm
End milling capacity	20mm	20mm	20mm	20mm	32mm	32mm	32mm	32mm
Distance from spindle nose to table	439mm	445mm	440mm	450mm	440mm	450mm	440mm	450mm
Min.distance from spindle axis to column	197.5mm	203mm	272.5mm	260mm	272.5mm	260mm	272.5mm	260mm
Spindle travel	85mm	85mm	130mm	130mm	130mm	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.3 or R8	M.T.3 or R8	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8	M.T.4 or R8	M.T.4 or R8
Step of spindle speed	6	6	6	6	6	6	6	6
Range of spindle speed 50Hz	95-1420 r.p.m	95-1420 r.p.m	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	115-1700 r.p.m	115-1700 r.p.m	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Swivel angle of headstock (horizontally / perpendicularly)	360°/±90°	90°	360°/±90°	90°	360°/±90°	90°	360°/±90°	90°
Table size	520×160mm	520×160mm	800×240mm	800×240mm	800×240mm	800×240mm	800×240mm	800×240mm
Forward and backward travel of table	140mm	140mm	175mm	175mm	175mm	175mm	175mm	175mm
Left and right travel of table	290mm	290mm	500mm	500mm	500mm	500mm	500mm	500mm
Motor power	0.37KW	0.37KW	0.75KW(1HP)	0.75KW(1HP)	1.1KW(1.5HP)	1.1KW(1.5HP)	1.5KW(2HP)	1.5KW(2HP)
Net weight/gross weight	130kg/190kg	180kg/240kg	315kg/365kg	320kg/370kg	318kg/368kg	323kg/373kg	320kg/370kg	325kg/375kg
Packing size	680×750×1000mm	680×750×1000mm	770×880×1160mm	770×880×1160mm	770×880×1160mm	770×880×1160mm	770×880×1160mm	770×880×1160mm
