Radial Drilling Machine

Name: Radial Drilling Machine
Brand: TIMAC
SKU: 140796952
Availability: InStock

US$ 5,000 - 25,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Brand Name:

TIMAC

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Brand Name TIMAC

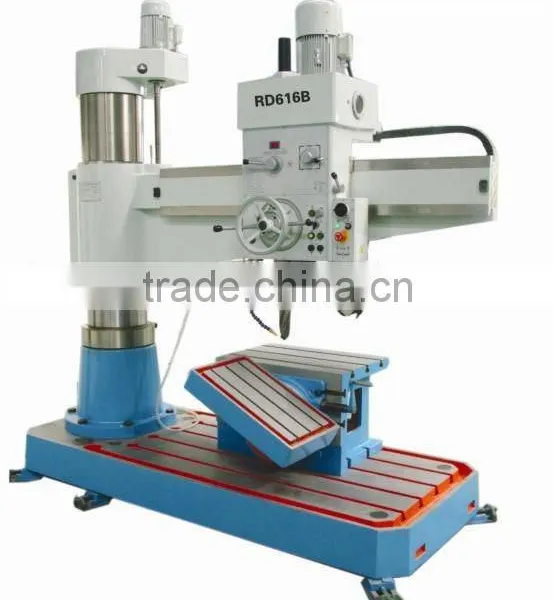

Model Number RD516B, RD616B

Specifications

Heavy duty radial drilling machine
Hydraulic radial drilling machine

Heavy duty radial drilling machine
Hydraulic radial drilling machine

*Hydraulic transmission;

*Hydraulic clamping;

*Hydraulic pre-selection;

*Hydraulic speed exchanging;

Model	RD516B	RD616B
Max. drilling diameter(on 45 steel)	Φ50mm	Φ62mm
Max. drilling diameter(on HT200 cast iron)	72mm	72mm
Max. distance from spindle to generating line of column	350-1600mm	350-1600mm
Distance of horizontal movement for spindle box(manual)	1250mm	1250mm
Max. distance between spindle end to the worktable surface of the base	350-1250mm	350-1250mm
Max. travel of the spindle	315mm	315mm
Spindle taper bore	MT.5	MT.5
Spindle speed steps	Stepless	Stepless
Spindle speed range	38-2000r/min	38-275; 275-2000r/min
Spindle feed steps	8	8
Spindle feed range (mm/r)	0.06-1.00mm/r	0.06-1.00mm/r
Speed of rocker arm up and down movement	1.2m/min	1.2m/min
Rotation angle of rocker arm	±180degree	±180degree
Distance of spindle movement for calibrated dial each revolution	122mm	122mm
Power of main motor (transducer motor )	3.7KW	4KW
Power of motor for rocker arm up and down movement	1.1KW	1.5KW
Power of oil pump motor for spindle box, column and rocker arm clamping	0.75W	0.75W
Weight of machine (without worktakbe)	3500KG	3800KG
Machine dimension (LxWxH)	2490x1000x2598mm	2490x1000x2598mm
