Radial Drilling Machine
US$ 1,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Brand Name:
TIMAC
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
CNC or Not
Normal
Brand Name
TIMAC
Model Number
RMD-40, RMD-40B, RMD-50B
Specifications

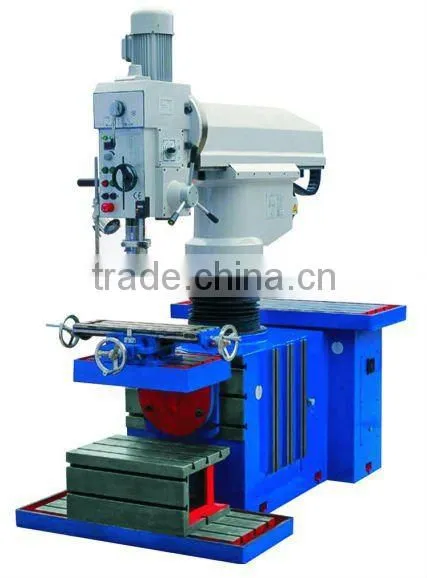

radial drilling machineRadial Drilling Machine
| Model | RMD-40/RMD-40A | RMB-40B | RMD-50B |
| Max. drilling diameter.(steel ) and tapping diameter | φ40/M30mm | φ40/M30mm | φ50/M36mm |
| Max.Milling cutter diameter | 80mm | 80mm | 80mm |
| Max.travel of spindle | 200mm | 200mm | 240mm |
| Distance between column center line to the T solt in the middle of worktable | 640mm | 640mm | 630mm |
| Max.distance between spindle end to the worktable surface. | 675mm | 760mm | 800mm |
| Max.travel of ram | 580mm | 590mm | 665mm |
| Max.travel for the spindle box in up and down position | 400mm | 400mm | 400mm |
| Turnning angle of spindle box to the ram | ±90° | ±90° | ±90° |
| Spindle taper bore | MT4 | MT4 | BT40 |
| Spindle speed steps | 18/stepless | stepless | stepless |
| Spindle speed range(step-less) | 40~2000r/min | 50~2000r/min | 48-2000r/min |
| Spindle feed steps | 4 | 6 | 6 |
| Spindle feed range | 0.08, 0.15, 0.27, 0.35mm/r | 0.08~0.50mm/r | 0.08-0.50mm/r |
| Dimension of worktable | 1050×405 | 1200×505mm | 1350x600mm |
| Diameter of column | φ220mm | φ220mm | φ240mm |
| Power of motor | 2.2KW | 2.2KW | 3.7KW |
| Machine dimension | 2250×1300×2250mm | 1910x1200x2400mm | 2545x1350x2850mm |
| Net weight and gross weight | 2660/2540KG | 2800/2860KG | 2885/3100KG |
