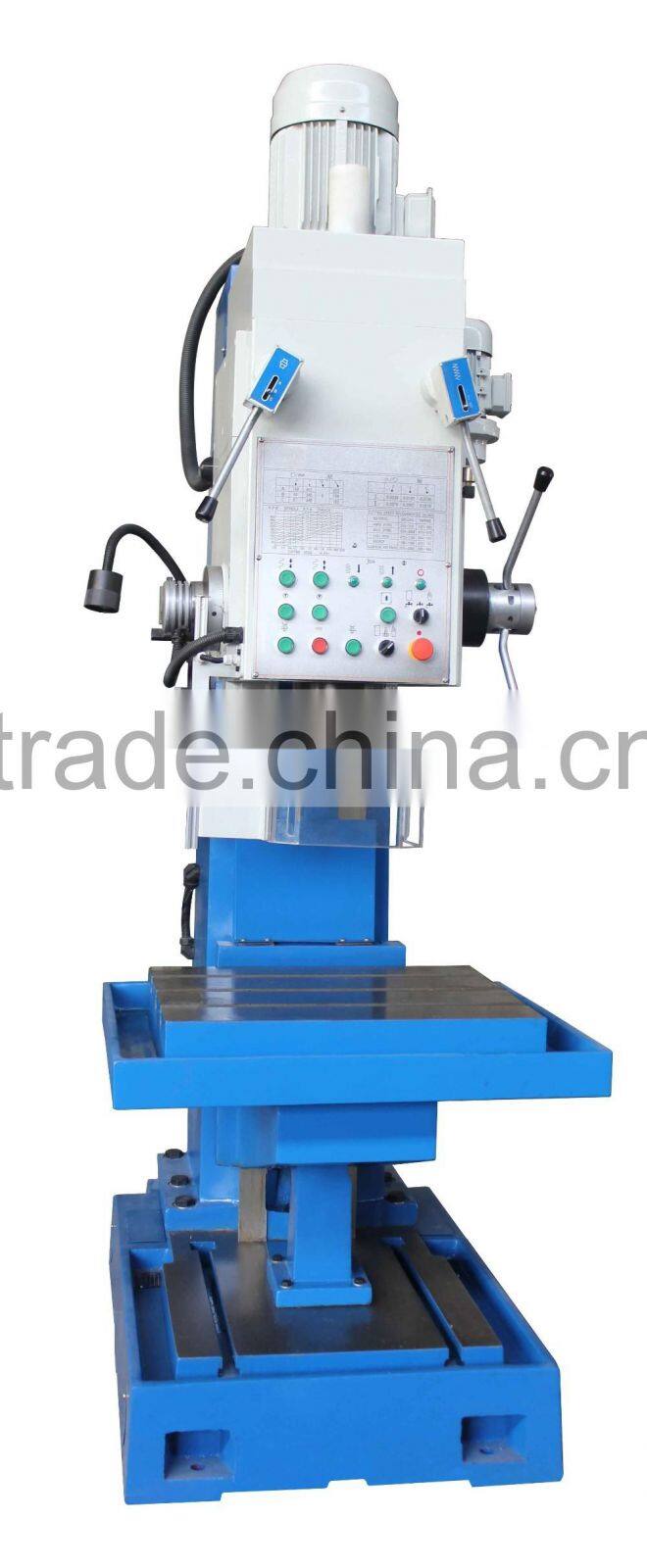

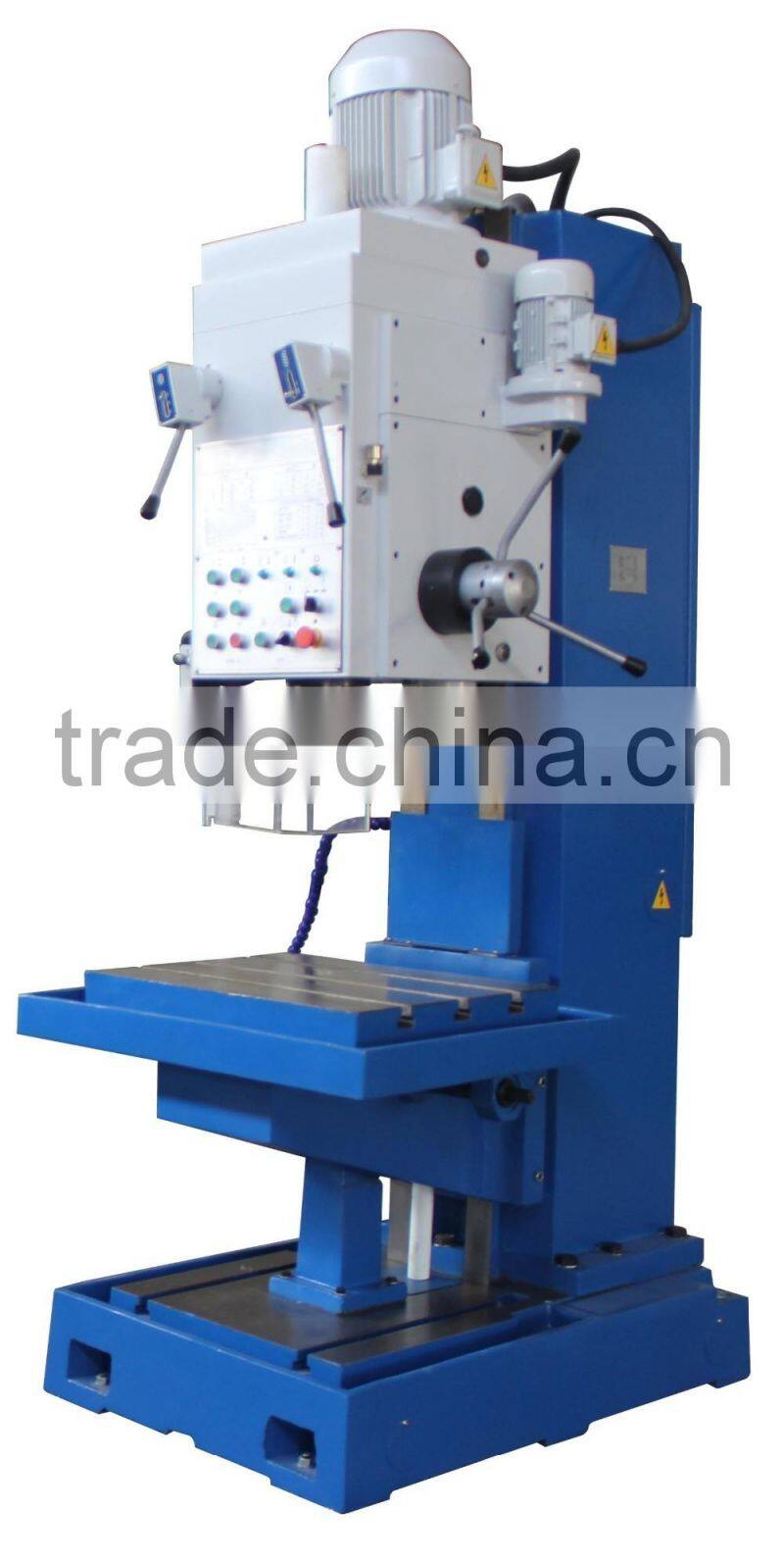

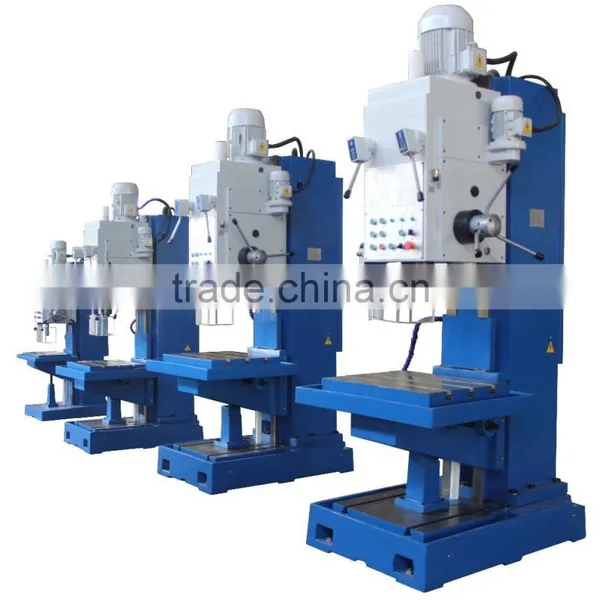

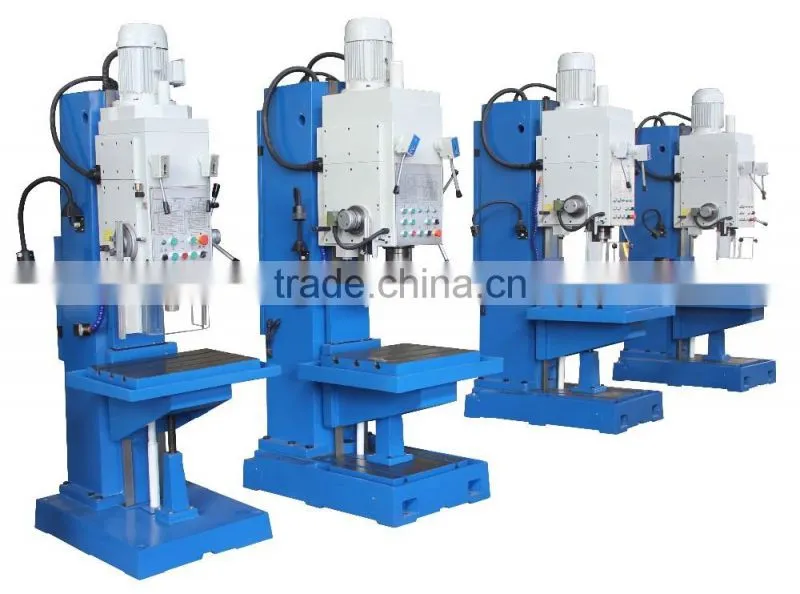

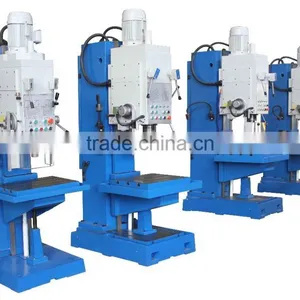

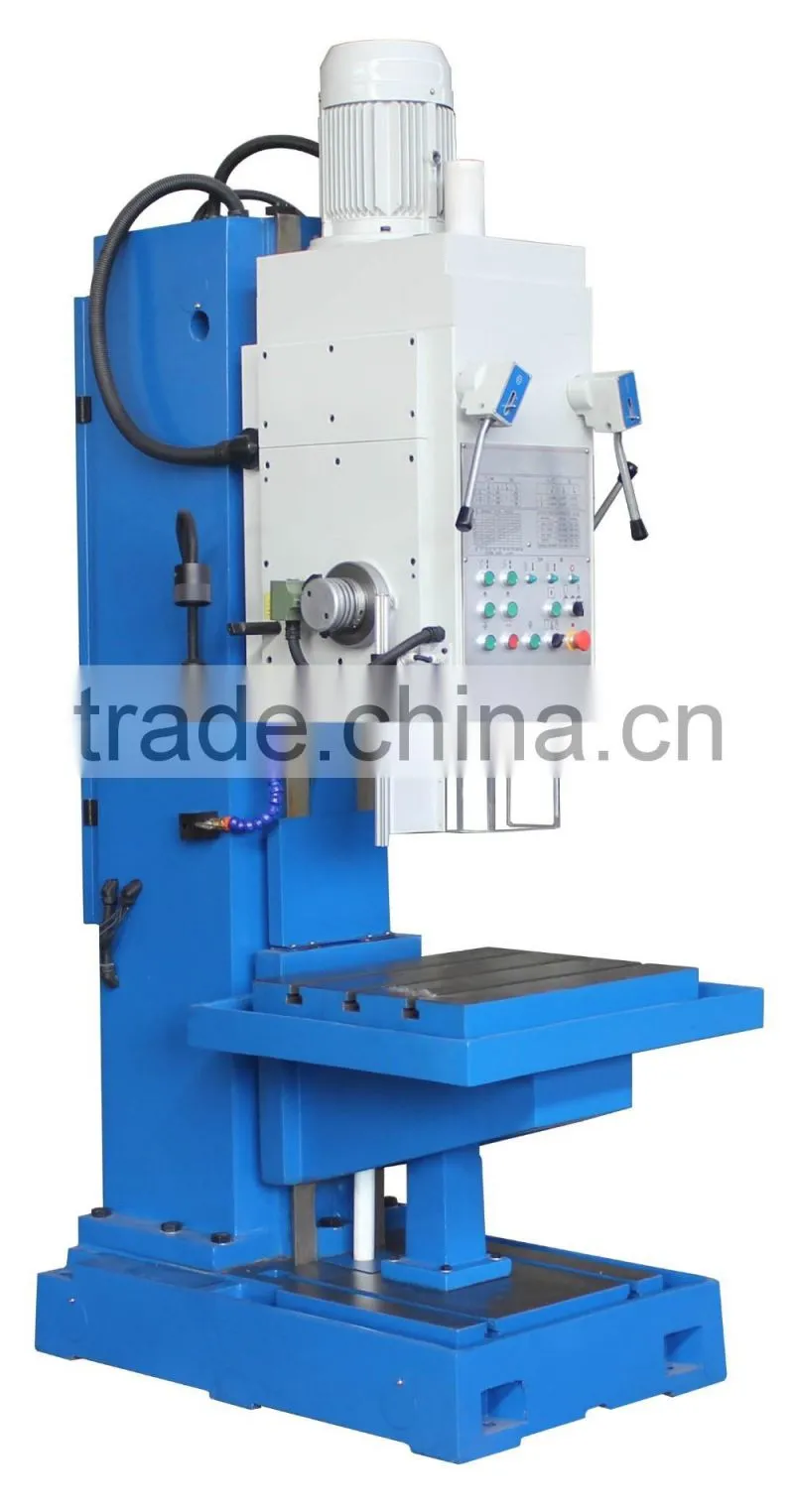

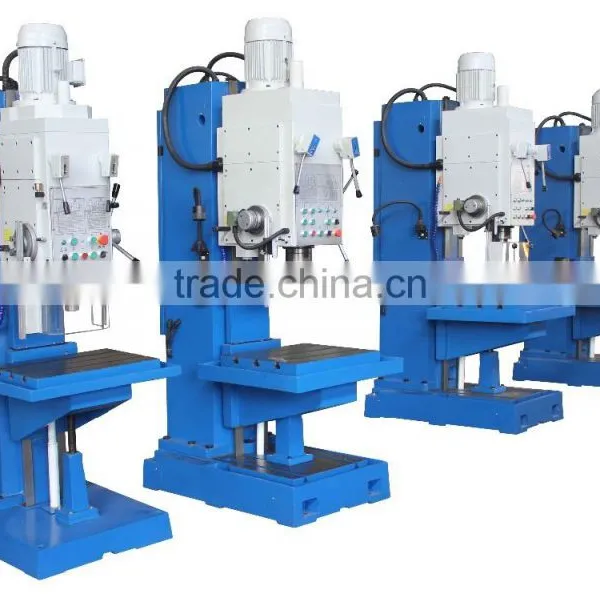

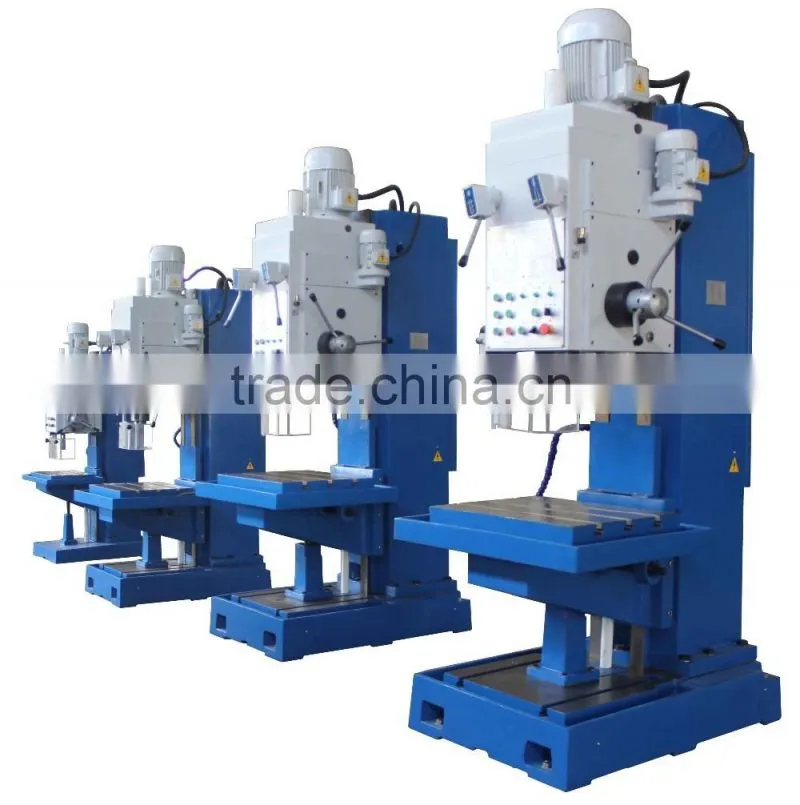

Vertical Knee-Type Box-Column Drilling Machine

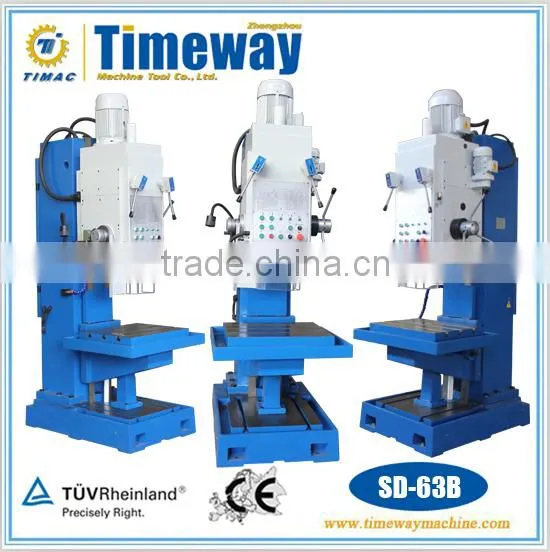

SD63B SD-80C SD-100
Features:
- Superior rigidity for demanding drilling, reaming and thread-cutting tasks.
- Box-column design provides high load capacity, and is torsion proof and rigid.
- Table and drill head can be moved individually for an optimum machining height.
- 9-steps feed and speed gears, with oil-bath lubrication.
- High torque across the entire speed range.
- Thread cutting unit automatically reverses upon reaching the preset depth.
Technical Parameter:
Specification |
Unit |
SD-63B |
SD-80C |
SD-100 |
Drilling capacity in steel |
mm |
63 |
80 |
100 |
Feed force |
N |
30000 |
30000 |
40000 |
Torque |
N.m |
800 |
800 |
1150 |
Spindle taper |
- |
Morse No.5 |
Morse No.6 |
Morse No.6 |
Distance from spindle center to column surface |
mm |
375 |
375 |
480 |
Spindle quill travel |
mm |
250 |
250 |
310 |
Drilling head travel |
mm |
250 |
250 |
300 |
Spindle speed range |
rpm |
40-570(9steps) |
40-570(9steps) |
26-320(6steps) |
Spindle feeds |
mm/r |
0.1-0.78(6steps) |
0.1-0.78(6steps) |
0.096-0.717(6steps) |
Vertical table travel |
mm |
300 |
300 |
300 |
Table setup area |
mm |
650x550 |
650x550 |
760x650 |
T-slot width/number |
mm |
- |
- |
- |
Max. distance from spindle nose to table |
mm |
800 |
800 |
850 |
Main motor power |
kw |
5.5 |
5.5 |
7.5 |
Coolant pump |
W |
90 |
90 |
90 |
Flow rate |
L/min |
25 |
25 |
25 |
Overall dimension(LxWxH) |
mm |
1452x965x2787 |
1452x965x2787 |
1465x970x3170 |
Machine weight |
kg |
2500 |
2500 |
3500 |
Standard Configuration:
- Coolant system
- Tapping feature
- Halogen work lamp
- Operating tools
- Operator manual
Optional Configuration:
- Universal facing and boring head
- Coolant concentrate
- Accessory set MT4(8pieces)
- Reducing sleeve MT5/4
|

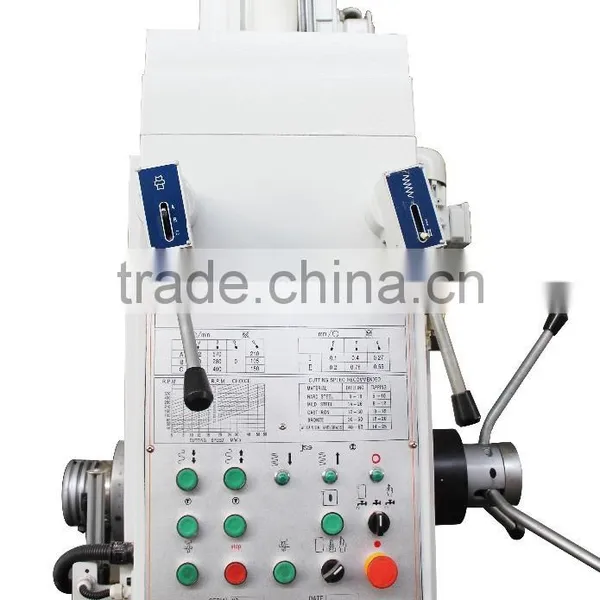

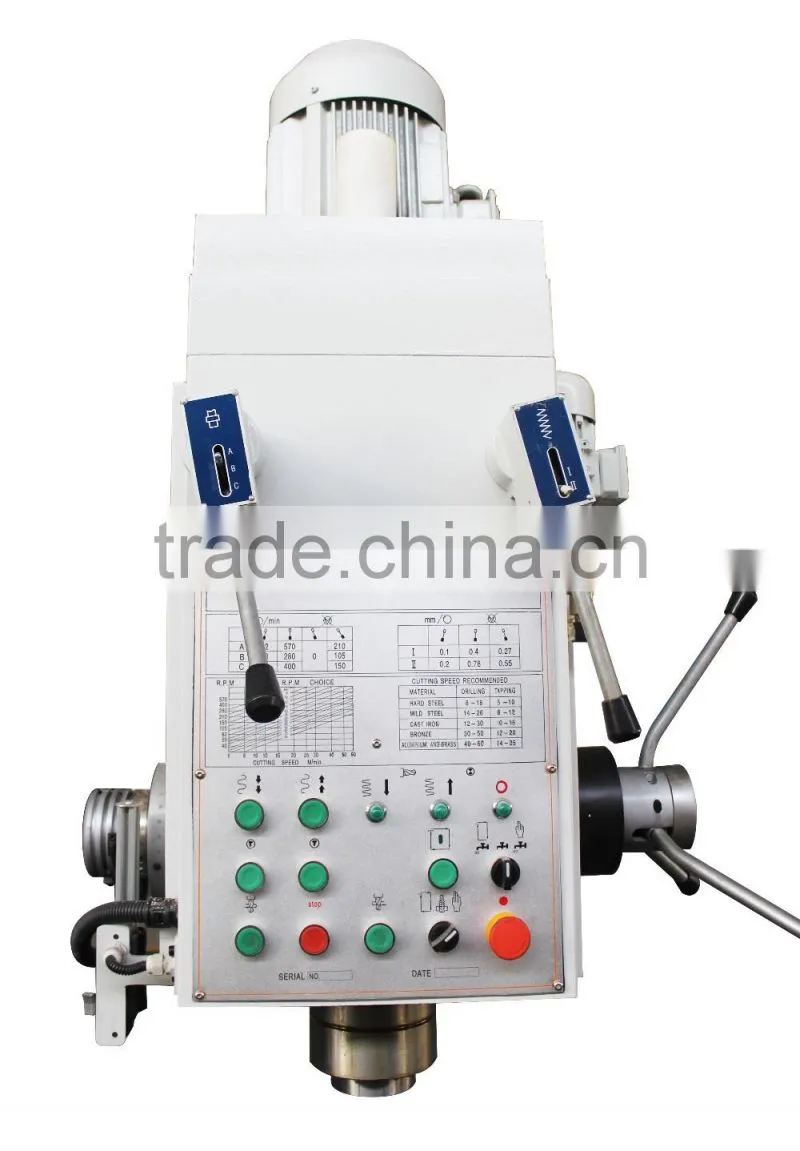

Drilling Box and Manual Speed Exchange

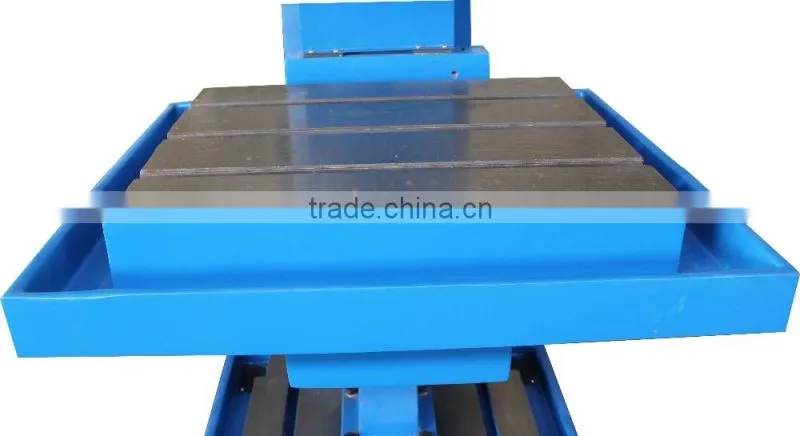

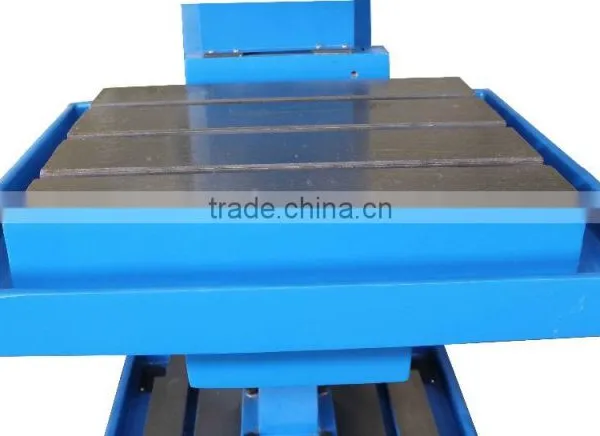

Hardened and Precision-Ground Worktable |

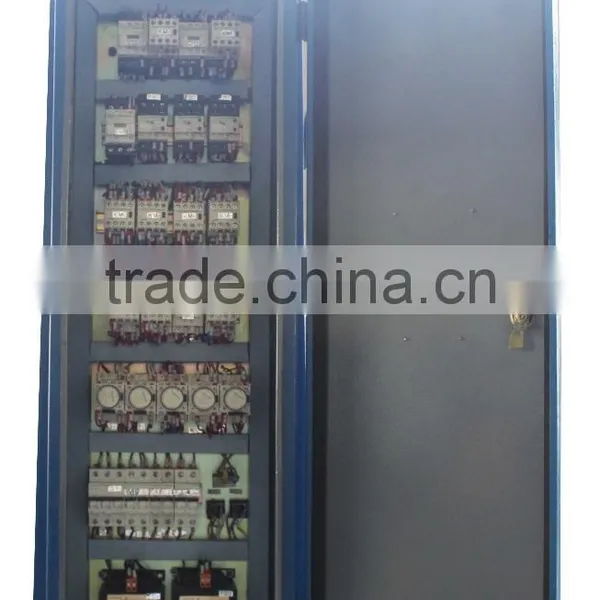

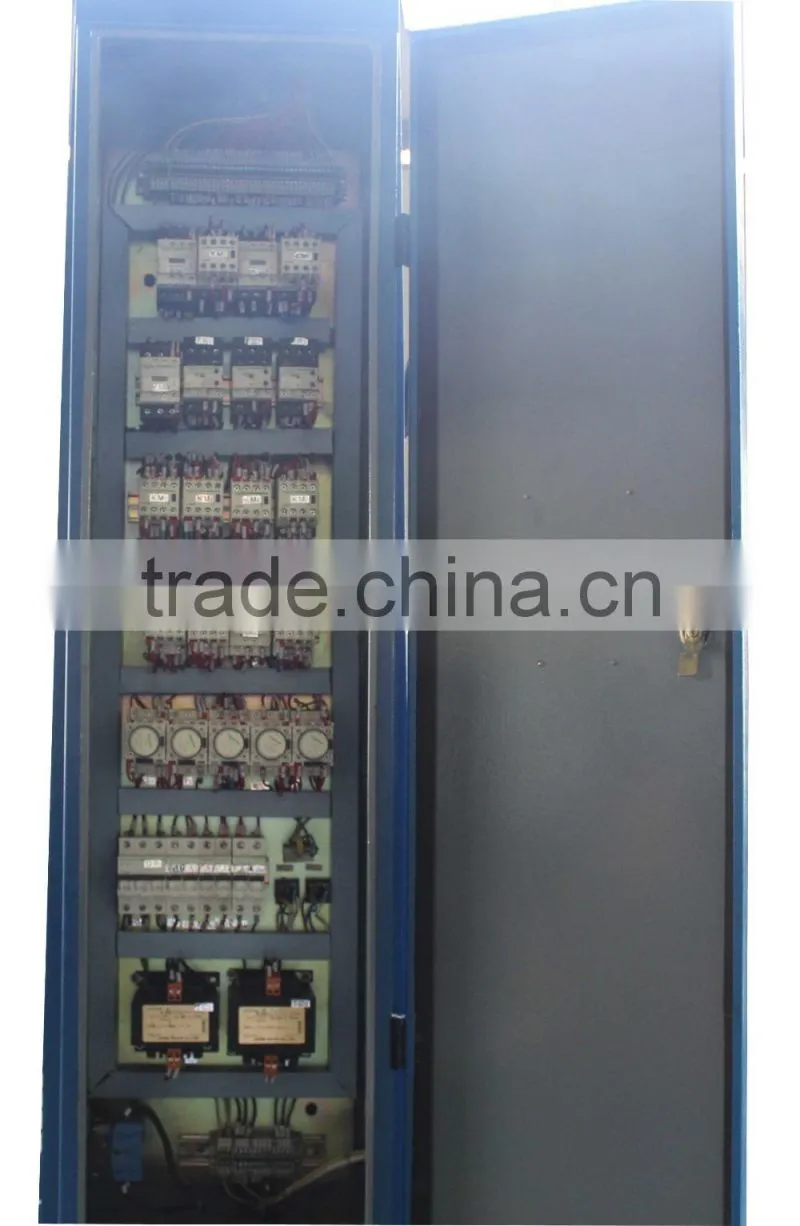

Electric Cabinet and All Schneider Electric Parts |
