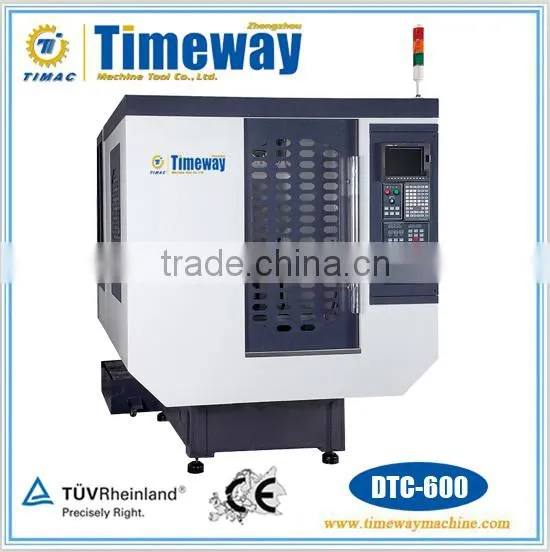

Vertical CNC Drilling and Tapping Center
DTC-500 DTC-600 DTC-700

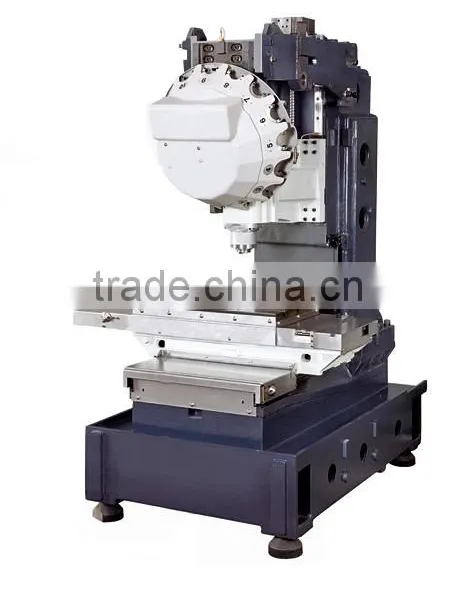

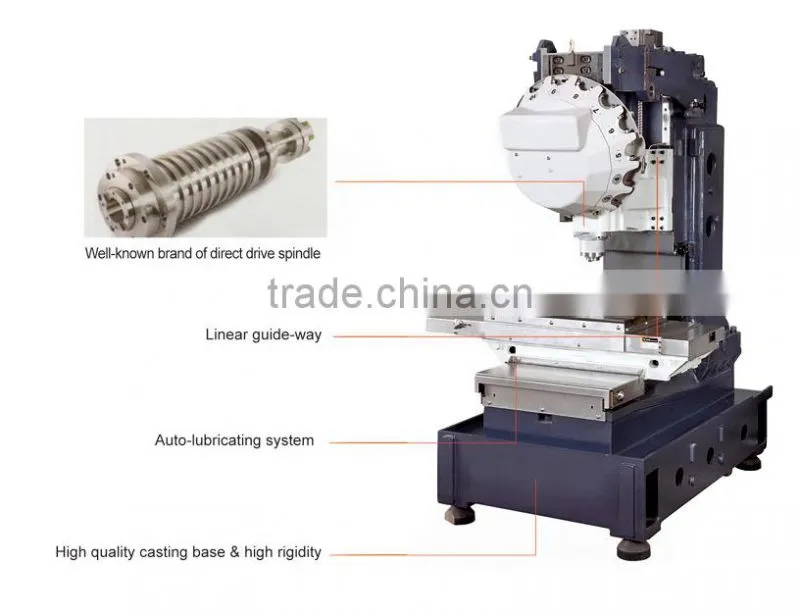

Performance and Feature
1. Direct drive spindle, no belt spindle of noise and vibration problems.
2. Main structure uses the high quality of rice khan, cast iron castings, and the secondary annealing treatment, to ensure that structure of high rigidity, high stability, and permanent to ensure quality.
3. Casting through finite element analysis, the computer calculation and analysis, a reasonable structural strength and strengthened the collocation of floor, provide high rigidity of the machine.
4. Three axis adopt rail support, with lines that can support heavy load, fast moving, to ensure the positioning precision.
Standard Accessories
M70B controller system
Spindle blowing
Coolant system
Automatic lubracating system
Rigid tapping
Umbrella ATC type(16T)
CF card(1GB)
Alarm lamp
Full closed cover
Tool box and manual operation
Optional Accessories
FANUC 0i-MD/Siemens 828D
4th worktable
Spindle oil coolant
Spindle speed 15000/18000/24000rpm
21 pcs ATC
Air condition for eletrical box
Automatic power off
Technical Parameters
| Specifications | Units | DTC-500 | DTC-600 | DTC-700 |
| X-axis travel | mm | 500 | 600 | 700 |
| Y-axis travel | mm | 400 | 400 | 400 |
| Z-axis travel | mm | 300 | 300 | 330 |
| Worktable size | mm | 650*400 | 700*420 | 900*420 |
| Max. loading of worktable | kg | 250 | 350 | 350 |
| T-slot(Number*width*space) | mm | 3*14*100 | 3*14*100 | 3*14*125 |
| Distance from spindle nose to center of worktable | mm | 150-450 | 150-450 | 160-460 |
| Distance from spindle center to column | mm | 420 | 420 | 505 |
| Spindle taper | BT30 | BT30 | BT30 | |
| Spindle speed | rpm | 12000 | 12000 | 12000 |
| Spindle motor power | kw | 3.7/5.5 | 3.7/5.5 | 3.7/5.5 |
| Rapid traverse speed of X/Y/Z axis | m/min | 48/48/48 | 48/48/48 | 48/48/48 |
| Cutting feed rate of X/Y/Z axis | mm/min | 1-10000 | 1-10000 | 1-10000 |
| Capacity of tool magazine | 16 | 16 | 16 | |
| Max. tool weight | kg | 3 | 3 | 3 |
| Max. tool length | mm | 200 | 200 | 200 |
| Tool magazine type | Umbrella type | Umbrella type | Umbrella type | |
| Machine weight | kg | 2300 | 2500 | 2800 |
| Overall size(L*W*H) | mm | 1760*2100*2000 | 1760*2100*2000 | 1960*1910*1950 |
