Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > High-speed CNC Drilling and Tapping Center

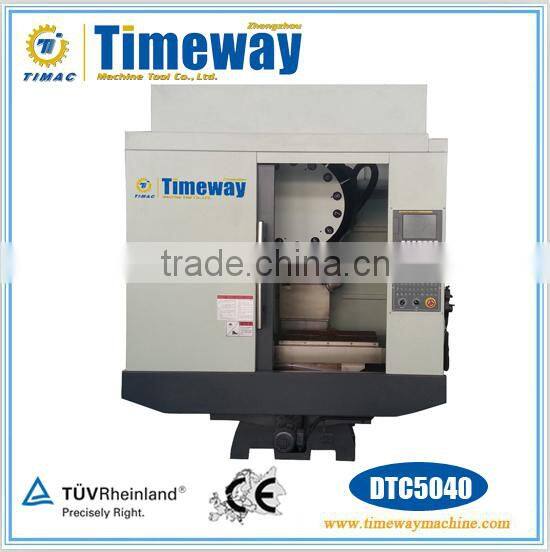

High-speed CNC Drilling and Tapping Center

Name: High-speed CNC Drilling and Tapping Center
Brand: TIMAC
SKU: 140796896
Availability: InStock

High-speed CNC Drilling and Tapping Center thumbnail-1

High-speed CNC Drilling and Tapping Center thumbnail-2

High-speed CNC Drilling and Tapping Center thumbnail-3

High-speed CNC Drilling and Tapping Center photo-1

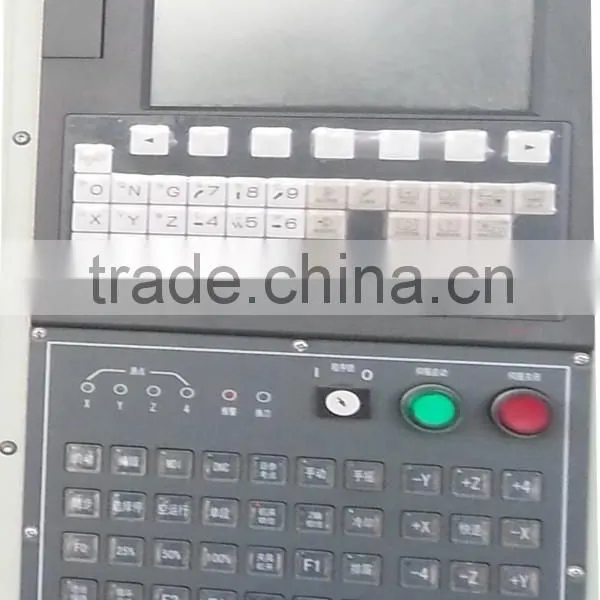

High-speed CNC Drilling and Tapping Center photo-2

High-speed CNC Drilling and Tapping Center photo-3

US$ 10,000 - 100,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

CNC

Drilling Speed:

10000rpm

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

CHINA PORT

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not CNC

Drilling Speed 10000rpm

Brand Name TIMAC

Model Number DTC5040,DTC5140

Voltage 380V/50HZ

Power(W) 3.7/5.5kw

Dimension(L*W*H) 2115*1750*2340mm

Weight 2500kg

Certification CE ISO9001

After-sales Service Provided Engineers available to service machinery overseas

High Speed Drilling and Tapping Center

DTC5040 DTC5140

Main Outlook

Product Description

Features:

1. Precision linear guides for X,Y and Z.

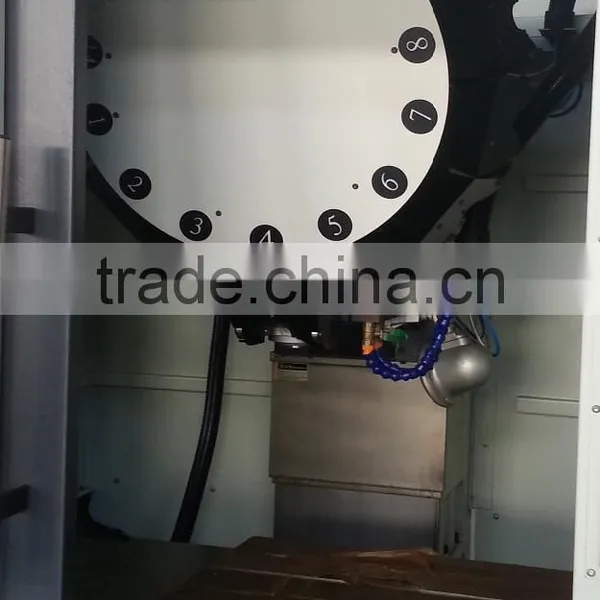

2. Arm_clipping type magazine with rapid tool change.
3. Sufficient coolant supplying system.
4. Totally sealed protection guard.

Specifications:

Models	DTC5040	DTC5140
Travel
X travel	500 mm	510 mm
Y travel	400 mm	400 mm
Z travel	330 mm	310 mm
Distance between spindle center and column guide way	430 mm	400 mm
Distance between spindle end and table	150-480 mm	175-485 mm
Table
Table size	400×650 mm	400×600 mm
Max. table load	250 Kg	250 Kg
T-sold(widthxnumberxspace)	14×3×100mm	14×3×100mm
Spindle
Taper bore of spindle	BT30/Φ95	BT30/Φ95
Spindle speed	12000rpm	10000rpm
Main motor power	3.7/5.5KW	3.7/5.5KW
Cutter removal from spindle	Machine	Machine
Feed
X,Y travel speed	0-60m/min	0-48m/min
Z travel speed	0-60m/min	0-48m/min
X,Y,Z Motor torque	9/9/12Nm	8/8/12Nm
X,Y,Z Motor connection	Direct connection	Direct connection
Repeatabilly(x/y/z)	± 0.003mm	± 0.003mm
Tool changing system
Tool number	Drill & mill:16	Drill & mill:14
Max tool size(with adjacent tool)	Ø60mm	Ø60mm
Max tool size(without adjacent tool)	Ø80 mm	Ø80 mm
Max. tool weight	3kg	3kg
Tool changing time(cut to cut)	1.1s	1.1s
Other
Min. Displacement(x/y/z)	0.001 mm	0.001 mm
Min. Input(x/y/z)	0.001 mm	0.001 mm
Overall dimensions	2300×1580×2380 mm	2115×1750×2340 mm
Net weight	2500Kg	2500Kg

FAQ

1.Trade terms:

FOB, CFR, CIF, EXW, FCA price terms is acceptable.

2.Payment terms:

T/T, L/C, Western Union payment terms is acceptable.

3.Delivery time:

50days....(vary as the machine's different size and complexible).

4.Warranty period:

12 monthes after delivery.(Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts for free. Even beyond the period, we will still supply the replacing parts with cost price).
