Vertical Drilling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Brand Name:
TIMAC
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Universal Radial Drilling MachineUS$ 1,000 - 5,000MOQ: 1 Set -
Radial Drilling Machine RD410, RD416, RD516US$ 5,000 - 25,000MOQ: 1 Set
-
"80,100,125mm"Heavy-duty Radial Drilling MachineNegotiableMOQ: 1 Set
-
BOX-COLUMN TYPE DRILLING MACHINENegotiableMOQ: 1 Set
-
Vertical Drilling MachineNegotiableMOQ: 1 Set
Condition
New
CNC or Not
Normal
Brand Name
TIMAC
Model Number
D-32
Specifications
Vertical drilling machineWith drilling, tapping, reaming function,...

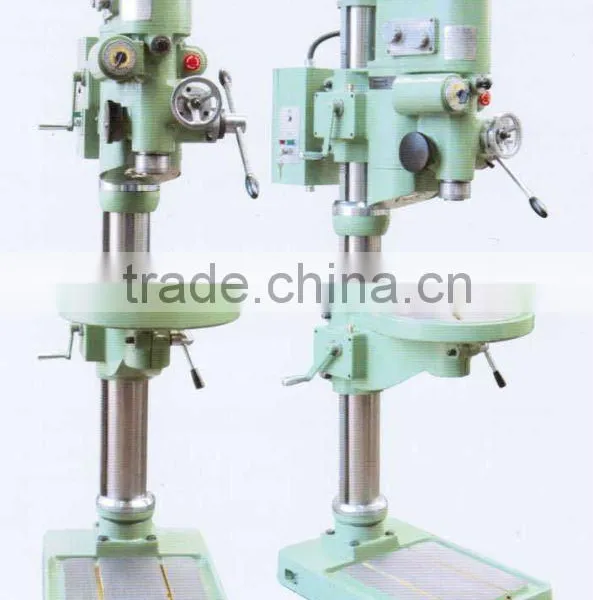

Vertical drilling machine
With drilling, tapping, reaming function,...
This machine is designed for drilling, counterboring, reaming, tapping, spotfacing, etc. The maximun drilling capacity is 32mm on small or middle sized workpieces.
It is widely used in machine works and repair shops for single piece or small lot production, having the features of abundant horsepower and high rigidity when compared with all the others of its kind at home and abroad.
| Model | D-32 | |
| Max. diameter to be drilled | 32 mm | |
| Max. travel of spindle | 150 mm | |
| Distance from the spindle axis to the column | 300 mm | |
| Max. distance from spindle nose to working surface | 800 mm | |
| Max. distance from spindle nose to working surface to baseplate | 1225 mm | |
| Max. travel of spindle box | 270 mm | |
| Max. travel of table | 550 mm | |
| Taper of spindle bore | Morse No.4 | |
| Number of spindle speeds | 12 steps | |
| Range of spindle speeds | 78-105-160-235-315 -400-480-550-840 -1230-1650-2500 r/min | |
| Effective working area of round table | πx190x190 mm2 | |
| YD112 | Power | 1-1.3-1.7 kw |
| 3-speed 3-phase | Voltage | 220, 380, 420 V |
| A.C. motor | Speed | 705-950-1440 r/min |
| Overall dimensions (LXWXH) | 780x505x1910 mm | |
| Net weight | 390 kg | |
Standard accessories:
3-jaw comcentric chuck,
Bar of commecting drill chuck
Short sleeve for taper shank tool
Wedge for taper shank tool
Foundation bolts
Special wrench
Optional accessories:
Quick-change drill chuck
