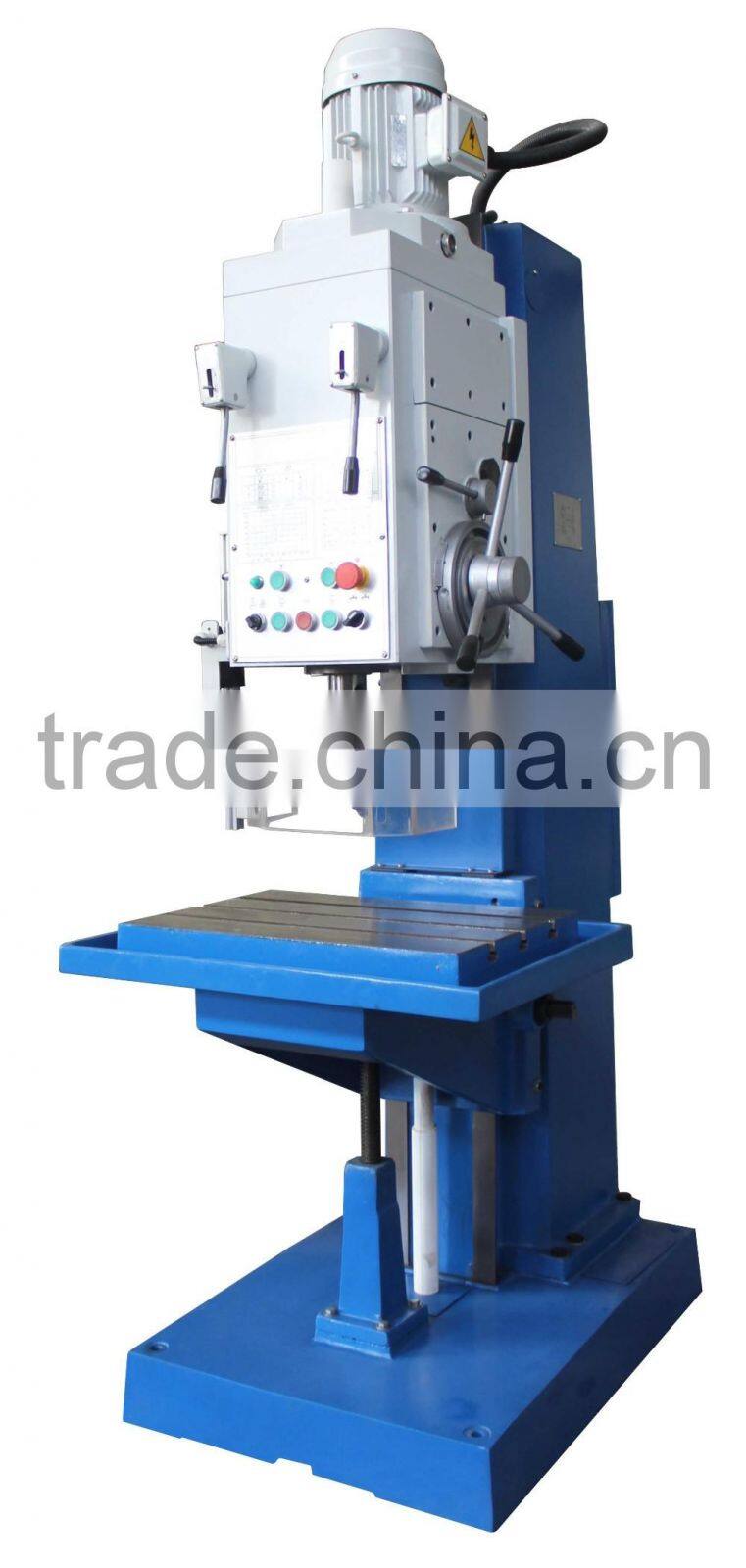

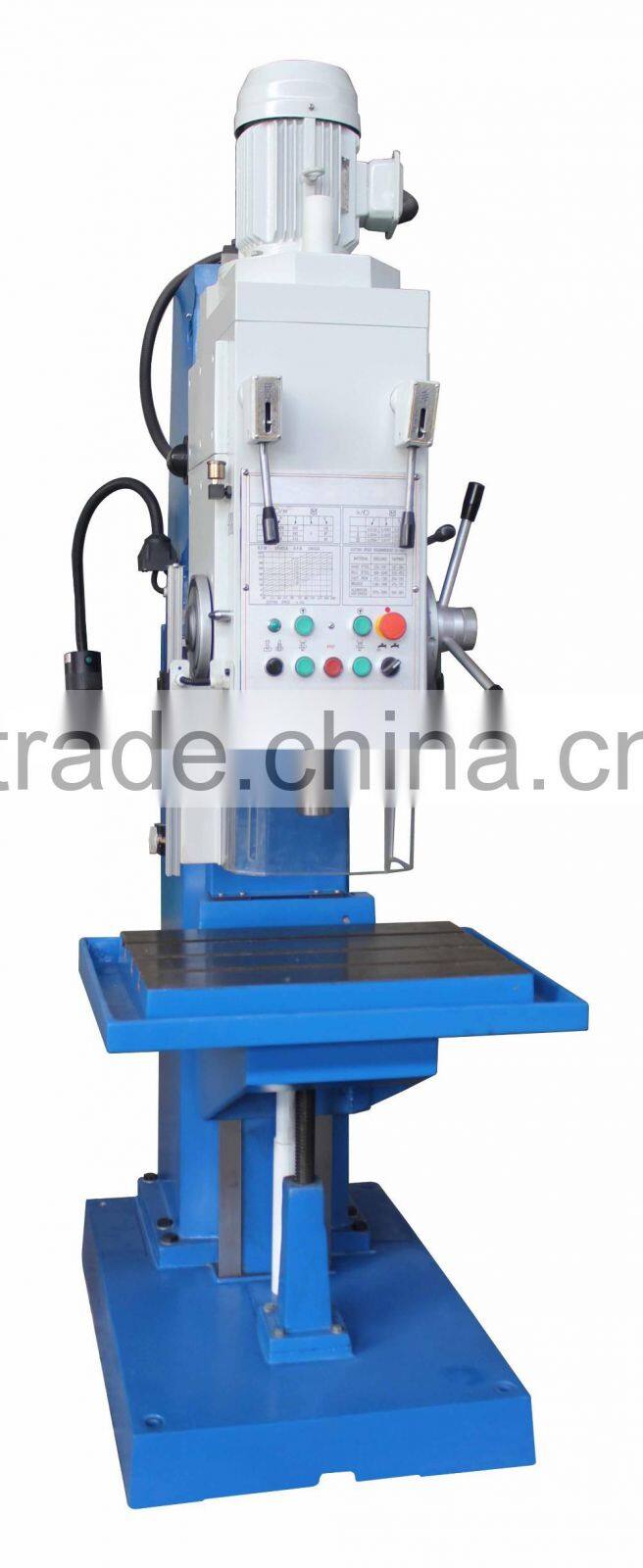

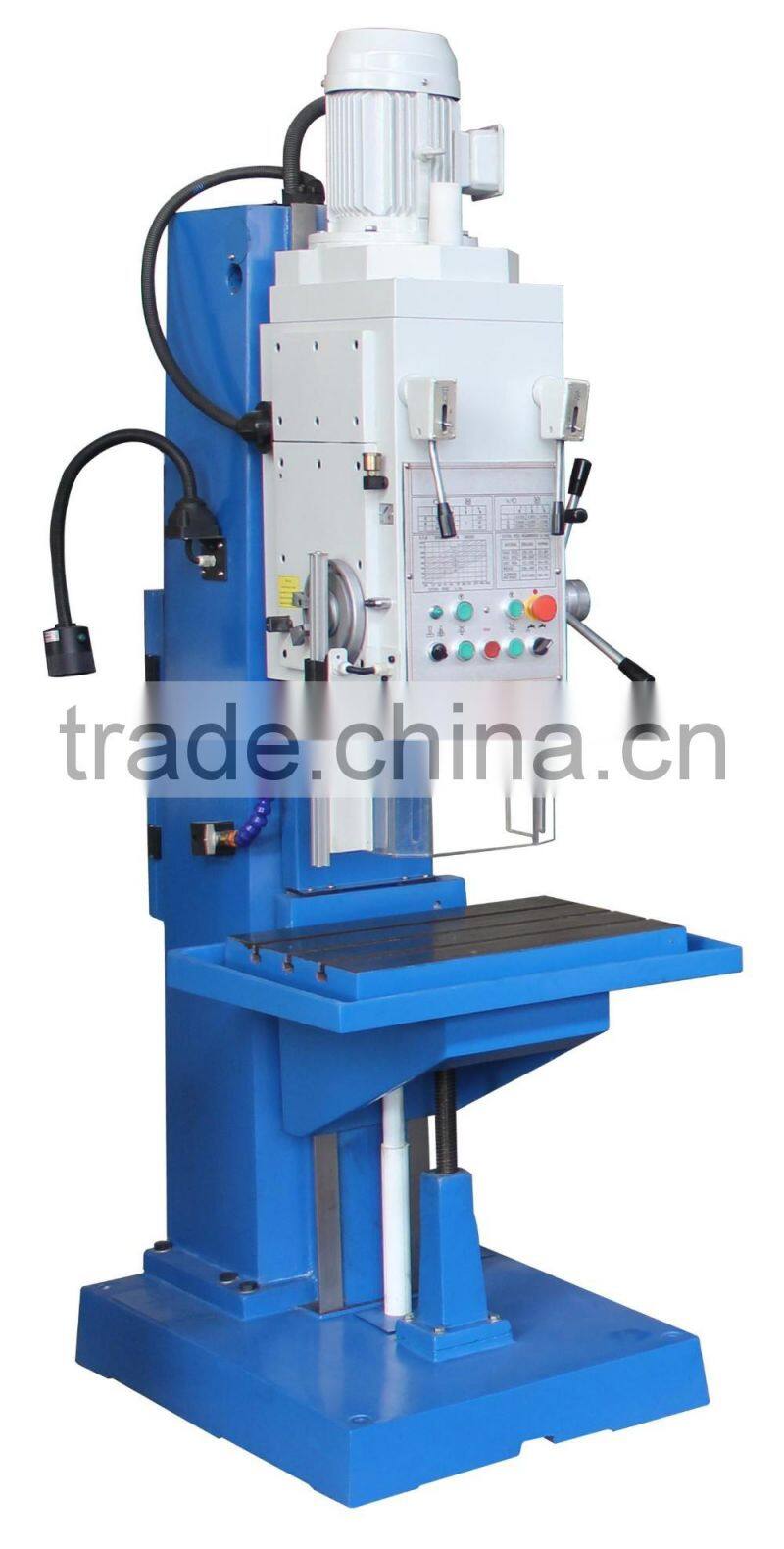

Spinde Box Lifting Box Column Drilling Machine

Name: Spinde Box Lifting Box Column Drilling Machine
Brand: TIMAC
SKU: 140796900
Availability: InStock

US$ 2,000 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Drilling Speed:

0.056-1.8mm/r(9steps)

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Drilling Speed 0.056-1.8mm/r(9steps)

Brand Name TIMAC

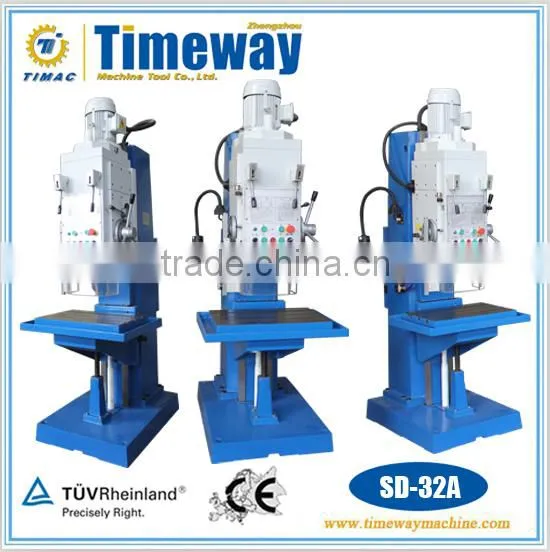

Model Number SD-32A

Voltage 380V/50Hz

Power(W) 2.2kw

Dimension(L*W*H) 962x847x2340mm

Weight 1000kg

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

Knee Type Superior Rigidity Box-Column Drill

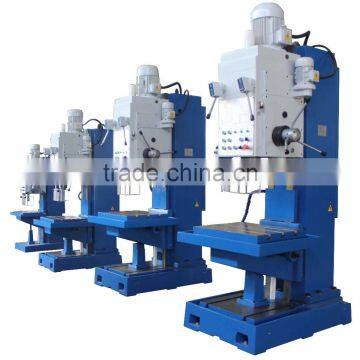

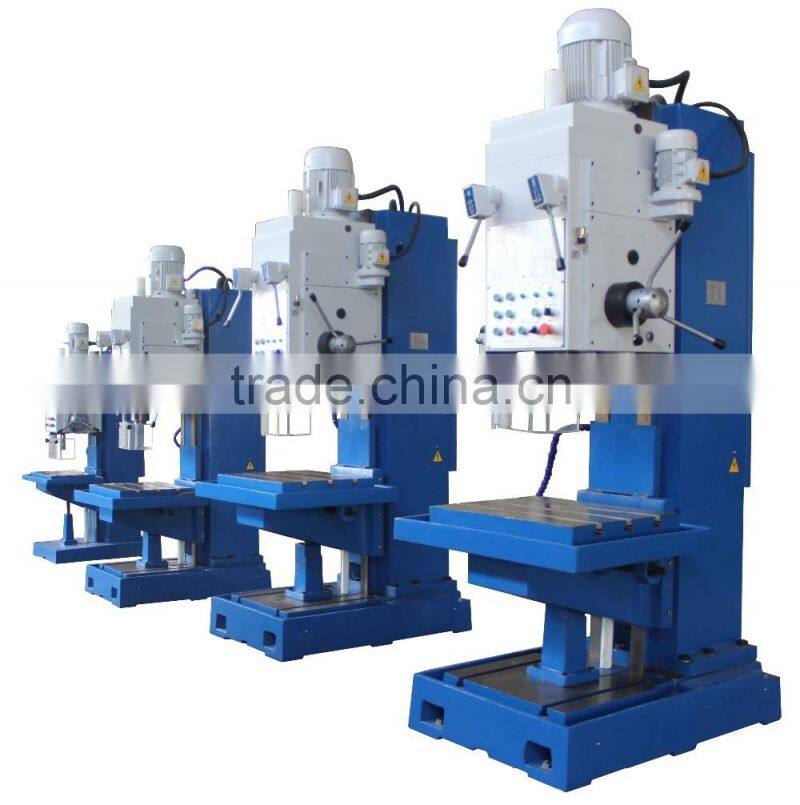

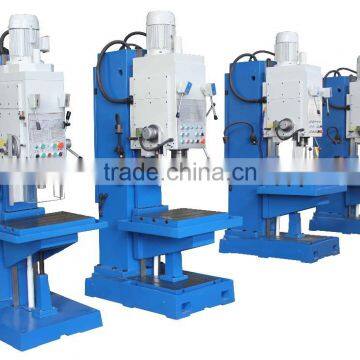

SD-25A SD-32A SD-40B SD-40C SD-50C SD-50D

Main Outlook

Product Description

Features:

Technical Parameter:

Specification	Unit	SD-25A	SD-32A
Drilling capacity in steel	mm	25	32
Feed force	N	9000	9000
Torque	N.m	160	160
Spindle taper	-	Morse No.3	Morse No.4
Distance from spindle center to column surface	mm	280	280
Spindle quill travel	mm	200	200
Drilling head travel	mm	200	200
Spindle speed range	rpm	50-2000(9steps)	50-2000(9steps)
Spindle feeds	mm/r	0.056-1.8(9steps)	0.056-1.8(9steps)
Vertical table travel	mm	310	310
Table setup area	mm	400x530	400x530
T-slot width/number	mm	-	-
Max. distance from spindle nose to table	mm	710	710
Main motor power	kw	2.2	2.2
Coolant pump	W	90	90
Flow rate	L/min	25	25
Overall dimension(LxWxH)	mm	962x847x2300	962x847x2300
Machine weight	kg	950	950

Specification	Unit	SD-40B	SD-40C
Drilling capacity in steel	mm	40	40
Feed force	N	16000	16000
Torque	N.m	350	350
Spindle taper	-	Morse No.4	Morse No.4
Distance from spindle center to column surface	mm	335	335
Spindle quill travel	mm	250	250
Drilling head travel	mm	200	200
Spindle speed range	rpm	31.5-1400(12steps)	31.5-1400(12steps)
Spindle feeds	mm/r	0.056-1.8(9steps)	0.056-1.8(9steps)
Vertical table travel	mm	300	300
Table setup area	mm	480x560	480x560
T-slot width/number	mm	-	-
Max. distance from spindle nose to table	mm	750	750
Main motor power	kw	3	3
Coolant pump	W	90	90
Flow rate	L/min	25	25
Overall dimension(LxWxH)	mm	1040x906x2530	1040x906x2530
Machine weight	kg	1250	1300

Specification	Unit	SD-50D	SD-50C
Drilling capacity in steel	mm	50	50
Feed force	N	16000	16000
Torque	N.m	350	350
Spindle taper	-	Morse No.5	Morse No.5
Distance from spindle center to column surface	mm	335	335
Spindle quill travel	mm	300	250
Drilling head travel	mm	200	200
Spindle speed range	rpm	45-862(9steps)	45-850(9steps)
Spindle feeds	mm/r	0.056-1.8(9steps)	0.056-1.8(9steps)
Vertical table travel	mm	300	300
Table setup area	mm	480x560	480x560
T-slot width/number	mm	-	-
Max. distance from spindle nose to table	mm	755	750
Main motor power	kw	4	4
Coolant pump	W	90	90
Flow rate	L/min	25	25
Overall dimension(LxWxH)	mm	1040x906x2530	1040x905x2530
Machine weight	kg	1350	1300
