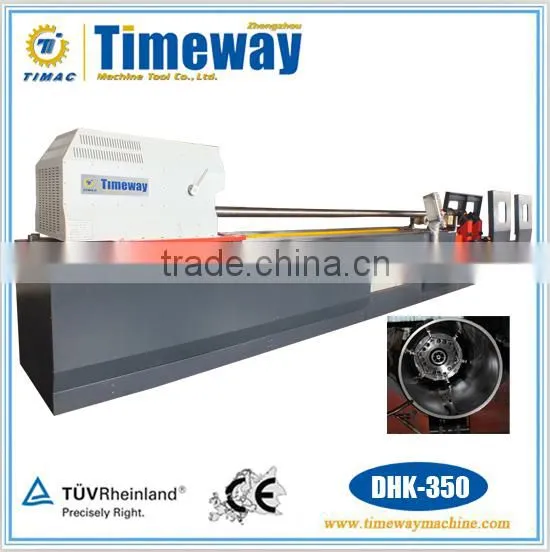

Horizontal Heavy-Duty CNC Cylinder Deep Hole Honing Machine
DHK-350 DHK-500 DHK-800

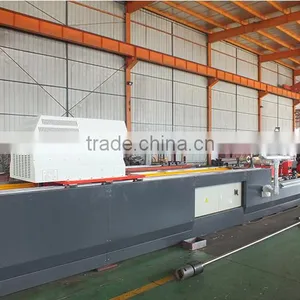

Main Outlook
Summary
Machine Summary
- The series CNC deep hole honing machine is the dedicated machine for honing and polishing of deep hole. Mainly for fine processing of the precision parts, it is an ideal deep hole processing machine with high precision and high efficiency.
- The modified version type of the machine can be designed according to the different demands. Absorbing the advanced experience home and abroad, this machine can realize accurate control of timing, positioning and quantifying in the process of production. With the development of high-performance abrasive and automated honing machine, the honing application range will get wider and wider.
Main Performances
Performance and Features
- The machine adopts the mode of workpiece fixed, honing head rotating and reciprocating. It has a wide appliation, especially for processing of non-rotary workpiece, such as hydraulic cylinder, air cylinder, square body, the workpiece with rotary shaft and flange plate, etc.
- The workpiece is fixed by V-type supporting and chain locking. The machine can be programmed to realize automatic operation, with setting up to honing time, reciprocation frequency and honing distance. It is suitable for mass production or single maintenance production. The machine selects Taiwan Delta control system with human-machine interface touch screen.
- The surface roughness is up to Ra 0.2µm and roundness is less than 0.03mm, the hole tolerance is up to IT7 or above.
- Adopting the special oil for cooling, the work area is almost not deformed and it is up to the higher precision on size and geometry with an excellent surface finish. Honing is the important processing method of precise inner hole and long hole, which has a high efficiency.
- There is the crossing texture on the surface of oilstone, it is good for protection of lubricant film, and avoiding effectively occurring of embedded sand. So the using life is prolonged.

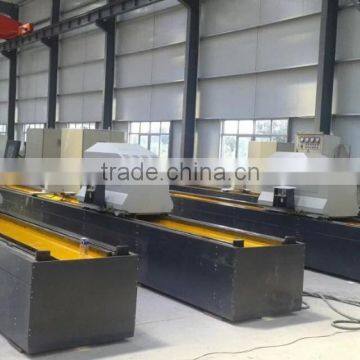

The Actual Part-graph

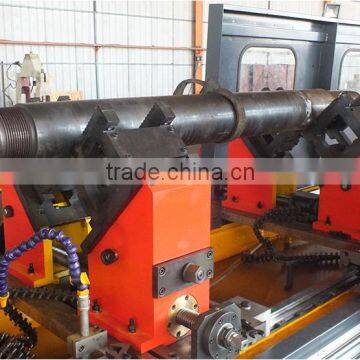

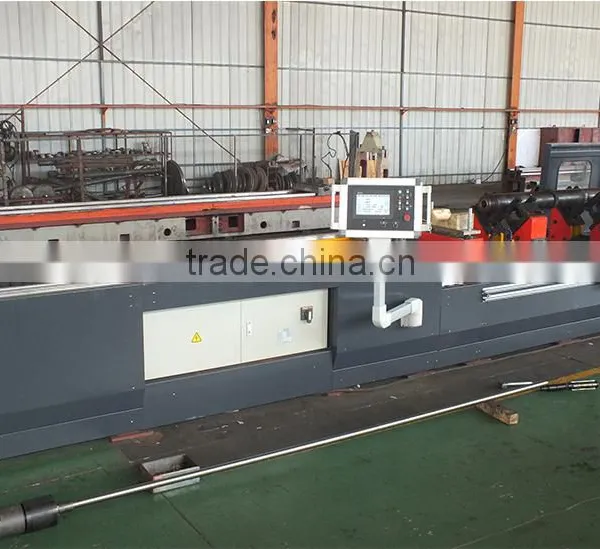

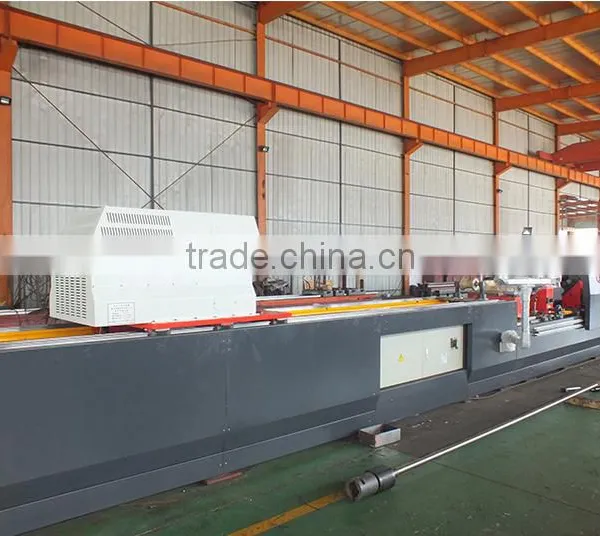

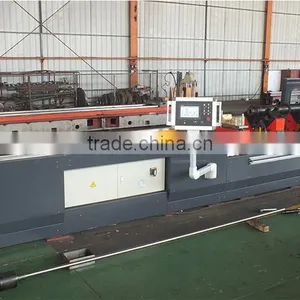

Main Sturcture: Bed body, Honing head box, Electrical cabinet, Operational panel, V-type clamping device, Protection guard, Guide wheel of honing bar, Linear guide rail.
Specifications List
Technical Parameters
| Specifications | Units | DHK-350 | DHK-500 | DHK-800 |
| Honing diameter range | mm | Φ80-Φ350 | Φ100-Φ500 | Φ350-Φ800 |
| Max. honing depth | mm | 1000-15000 | 1000-15000 | 1000-15000 |
| Spindle center height | mm | 350 | 500 | 650 |
| Spindle speed range of honing bar box | r/min | 20-200(Stepless) | 10-250(Stepless) | 20-250(Stepless) |
| Workpiece clamping dia. range | mm | Φ100-Φ420 | Φ100-Φ650 | Φ400-Φ1000 |
| Carriage reciprocating speed range | m/min | 1-20(Stepless) | 1-20(Stepless) | 1-20(Stepless) |
| Cooling pump flow | L/min | 100 | 150 | 200, AB 50 |
| Oil tank volume of cooling system | L | 300 | 300 | 500 |
| Honing head expansion pressure | MPa | 0.3-4(Variable) | 0.3-4(Variable) | 0.3-4(Variable) |
| Spindle motor power of honing bar box | kw | 11(AC servo) | 11(AC servo) | 15(AC servo) |
| Reciprocating motor power | kw | 5.5(AC servo) | 4.5(AC servo) | 5.5(AC servo) |
Clamping and expansion motor power of honing head | kw | 0.75(AC servo) | 0.75(AC servo) | 0.75(AC servo) |
| Cooling pump motor power | kw | 2.2 | 2.2 | 2.2 |

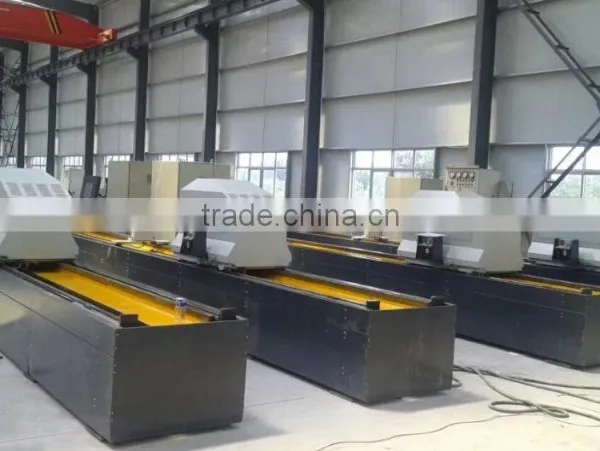

Detailed Images
Packaging & Shipping
- Firstly packed by waterproof cloth and then in wooden case.
- Few parts may need to be taken down and be packed in wooden case.
- According to customer's different require, wo can adopt different packaging.
Whether CNC deep hole honing machine or CNC deep hole drilling and boring machine or CNC deep hole skiving roller burnishing machine, we all use the same standard Packagings.
