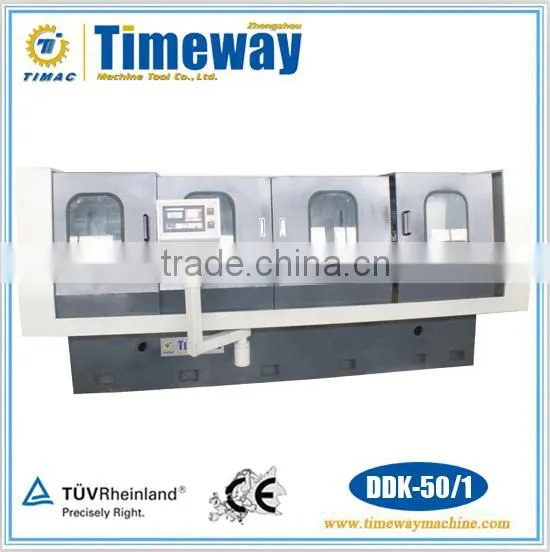

CNC Deep Hole Gun Drillig Machine (Single Spindle)
DDK-50/1 DDK-60/1
Performance and Features:
The series CNC deep hole drill machine is the dedicated drilling machine with high efficiency, high precision and high automation.
When drilling the hole with the diameter of Φ8-30mm, It adopts the type of external chip removal (gun-drill method), through one-off drilling process; When drilling the hole with the diameter of Φ30-50mm, it adopts the type of BTA internal chip removal.
It can finish several procedures including drilling, expanding and reaming, which is generally conducted by different machines in the conventional process. This machine achieves the excellent machining accuracy and surface finish.
The machine adopts all rotation of workpiece and tool while the tool is feeding. It can also fix the workpiece and make the tool rotating and feeding.
The machine adopts CNC system and has automatic cycle function. and it can achieve single action and automatic cycle action.
The machine can process center hole and eccentric hole. So it is specially suitable for mass production. The different holes are available to be processed by this machine including through hole, blind hole and step hole.
Technical Parameters:
| Specifications | Unit | DDK-50/1 | DDK-60/1 |
| Drilling dia. range | mm | 8-50 | 8-60 |
| Max. drilling depth of workpiece | mm | 500, 1000, 1500, 2000 | 500, 1000, 1500, 2000 |
| Max. length of the workpiece | mm | 500, 1000, 1500, 2000 | 500, 1000, 1500, 2000 |
| Headstock spindle speed range | r/min | 60-1000 | 60-1000 |
| Drill box spindle speed range (stepless) | r/min | 100-2000 | 100-2000 |
| Feed speed range (stepless) | mm/min | 10-500 | 10-500 |
| Workpiece clamping diameter range | mm | 300 | 300 |
| Feed rapid speed | m/min | 2 | 2 |
| Feed motor torque | N.m | 18 | 18 |
| Headstock motor power | kw | 15 | 15 |
| Drill bar box feeding motor power (stepless) | kw | 15 | 15 |
| Work pressure of cooling system (adjustable) | MPa | 1-5 | 1-5 |
| Cooling system flow (adjustable) | L/min | 6-100 (1 group) 100 (1 group) | 6-100 (1 group) 100 (1 group) |
| Drilling diameter-length ratio | 1:100 | 1:100 | |
| Machine total power | kw | 50 | 50 |
| Coolant fitering precision | µm | 20 | 20 |
| CNC system | SIEMENS or other CNC system | ||
Notes: The headstock is optional. If without headstock, you can save costs; If with headstock, you can higher processing efficiency.
DDK-50/1 and DDK-60/1 machine tools are equipped with single drilling bar.

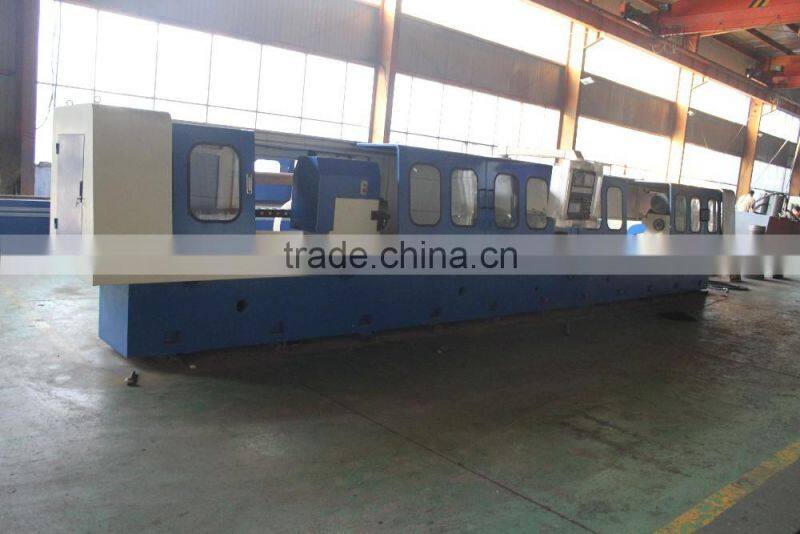

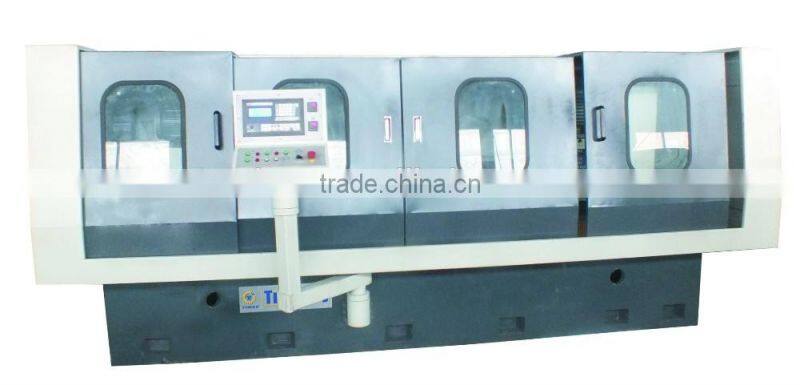

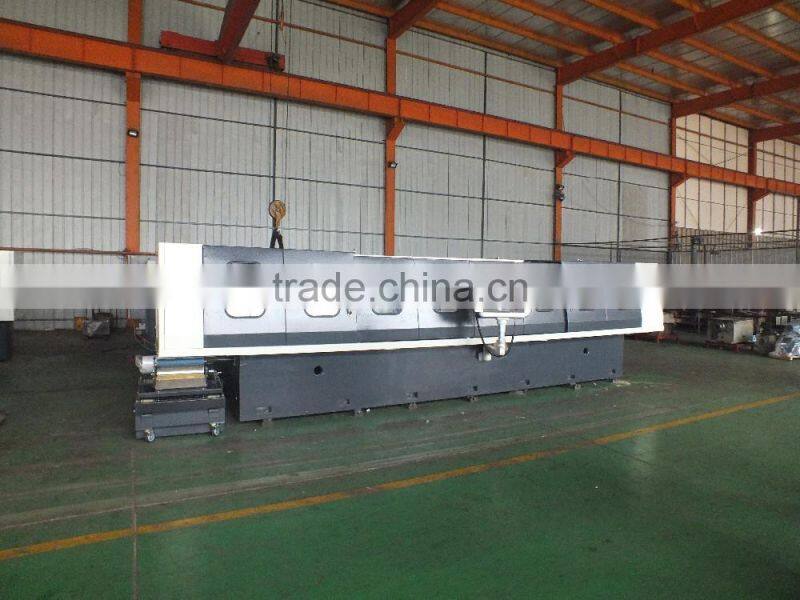

Actual Figure of Single Spindle CNC Deep Hole Gun Drill

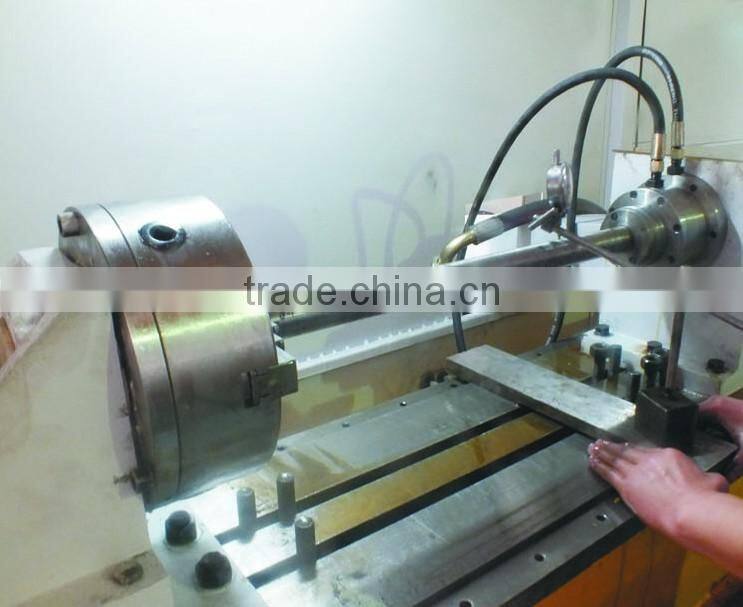

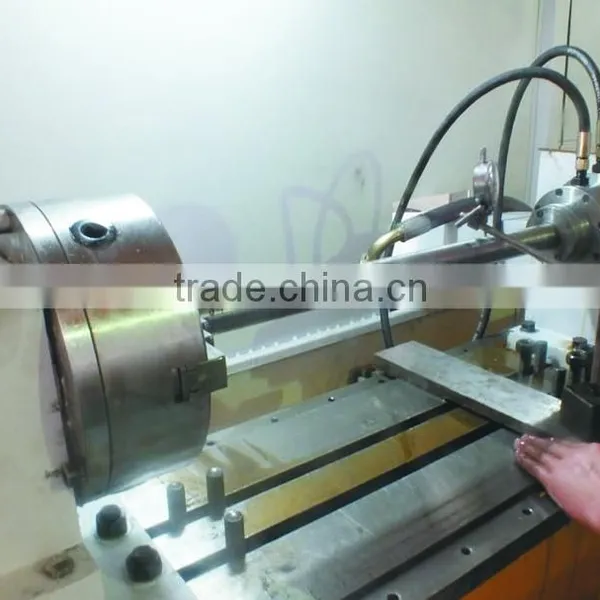

The Real Figure
| |
| |
Packaging and Shipping:
- Firstly packed by waterproof cloth and then in wooden case.
- Few parts may need to be taken down and be packed in wooden case.
- According to customer's different require, wo can adopt different packaging.
Whether CNC deep hole honing machine or CNC deep hole drilling and boring machine or CNC deep hole skiving roller burnishing machine, we all use the same standard Packagings.
