Specifications
1. Vertical milling machine;2. Table size 300x1250mm;
3. Milling head can swivel 45 degree;
4. Optional slotting head;

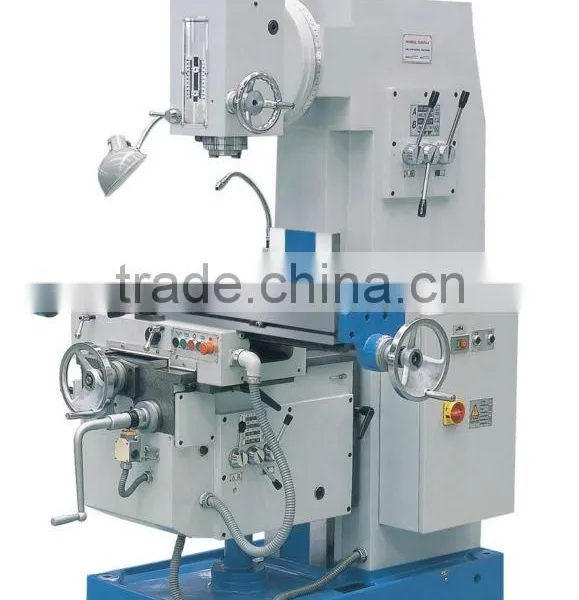

Vertical Knee- Type Milling Machine
Features:
* The Vertical Knee-type Milling Machine is used for milling steel, cast and colored metal. Vertical milling head can be swiveled by 45° to mill plane, inclined and groove, drilling, boring etc.. Spindle quill can be moved in vertical. It can mill all kind of complex parts with various attachments.
* The machine can equipped with digital display device according to request.
* It can be equipped with slotting head, which further enlarged its processing scope.
* The guide ways are rectangular which make the contact area larger. The longitudinal, cross and vertical movements of the table can both be operated by hand and power, also can be moved rapidly. Working table and slide ways are hardened which ensure high accuracy. The machine is well suited for milling parts of autocycle, sartorius, electric tool. It can be milled by high-speed steel cutter and horniness steel cutter.
Standard Accessories:
Complete coolant system, 2 sets arbor support, Halogen machine lamp, Automatic central lubrication system, Cutter arbor φ27, Foundation bolts and nuts, etc.
Optional Accessories:
2/3 axis DRO, Machine Vice, Dividing head, Rotary table, Milling chuck, Slotting head.
| Specification | Unit | VMN300C |
| Table size | mm | 300x1250 |
| Max. table load bearing | kg | 250 |
| T-slots (NxWxD) | mm | 3x14x63 |
| Longitudinal travel of worktable | mm | 750 |
| Cross travel of worktable | mm | 265 |
| Vertical travel of worktable | mm | 410 |
| Distance between table center to vertical guide way | mm | 152-322 |
| Max. rotary angle of vertical milling head | ±45° | |
| Distance from spindle nose to worktable | mm | 60-470 |
| Distance from spindle center to column | mm | 290 |
| Diameter of spindle hole | mm | φ20 |
| Arbor diameter | mm | φ27 |
| Spindle speed steps | 12 | |
| Quill travel | mm | 70 |
| Spindle hole taper | 7:24 40# | |
| Spindle speed ranges | r/min | 35-1600 |
| Feed speed steps | 12 | |
| Feed speed ranges: Longitudinal X | mm/min | 15-800 |
| Cross Y | mm/min | 15-800 |
| Vertical Z | mm/min | 6-270 |
| Rapid feed ranges(Longitudinal/ Cross/Vertical) | mm/min | 2100/2100/880 |
| Main motor power, speed | kw | 4, 1420rpm |
| Feed motor power, speed | kw | 0.75, 1460rpm |
| Cooling pump power, speed | kw | 0.12, 2760rpm |
| Cooling pump capacity | L/min | 25 |
| Overall size | mm | 1650x1540x1920 |
| Packing box size | mm | 1670x1580x2040 |
| Net weight | Kg | 1750 |
