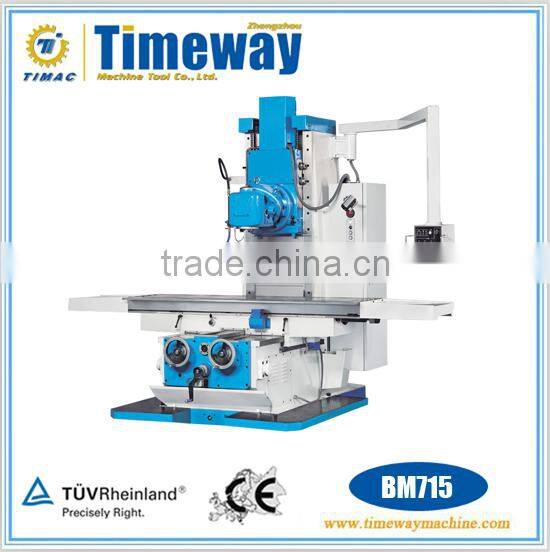

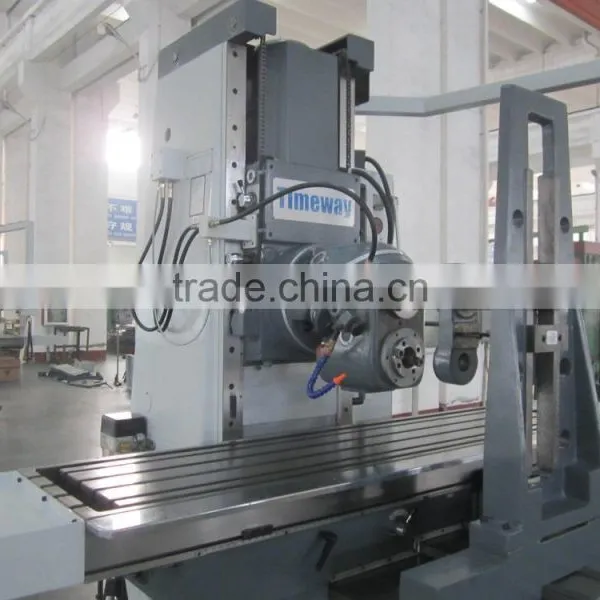

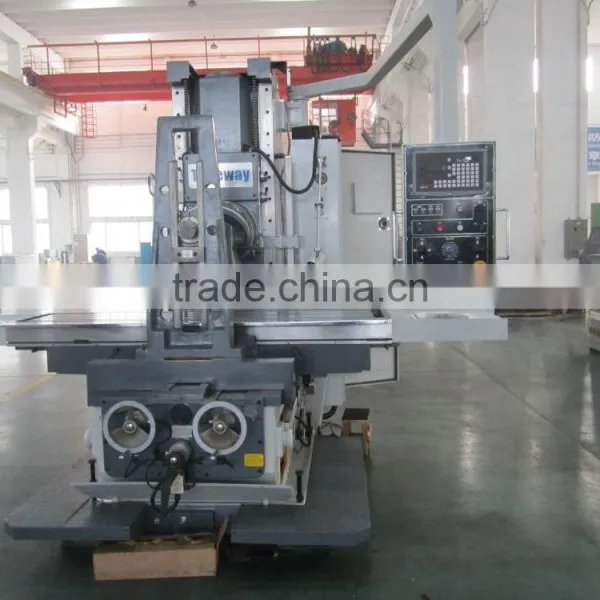

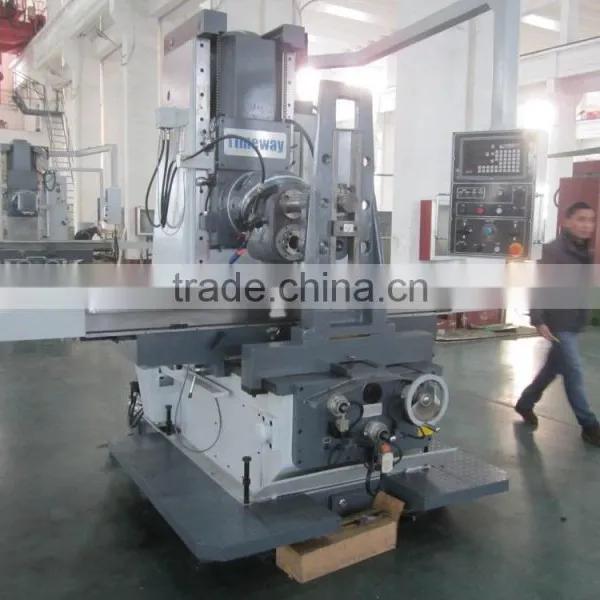

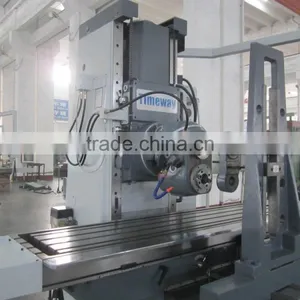

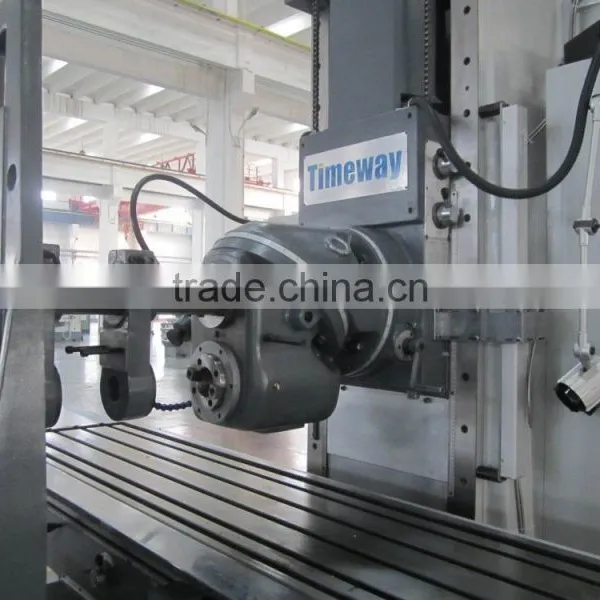

Bed type universal milling machine (BM715)
Features:
Large machine bed, wide column, plus high intrinsic weight - Power package for machining of large parts and heavy-duty chip removal capacity.
1. An extremely rigid, large-sized box-column design, made of premium cast-iron, provides a solid base for optimum work results.
2. Extra wide guideways ensure maximum stability and precision at high loads.
3. Extra long table travel distance (1500mm) and large table setup area (2100 x 500 mm) allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition.
4. Wide spindle speed range from 40 to 1600 rpm.
5. Infinitely variable linear and cross feed.

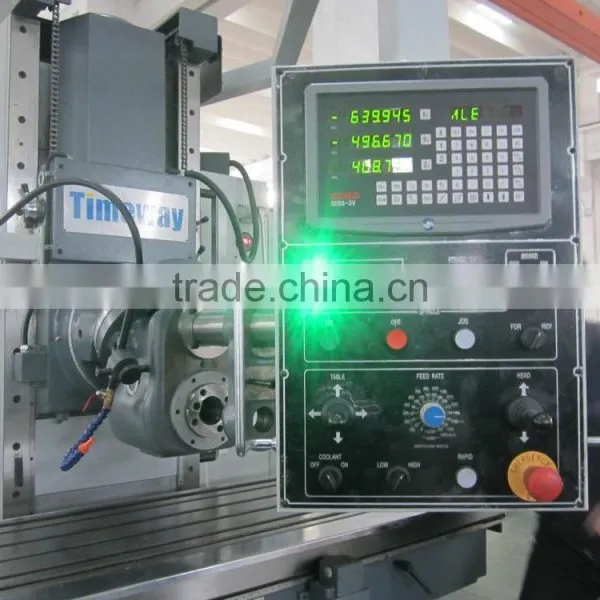

6. Control panel on a long extending arm that can be ideally positioned by the operator.
| Specification | Unit | BM715 | |
| Table | |||
| Working surface (L×W) | mm | 2100×500 | |
| T-slot (W×No.) | mm×piece | 20×4 | |
| Max. travel | Longitudinal | mm | 1500 |
| Cross | mm | 670 | |
| Long & cross power feed | Change no. | stepless | |
| Change range | mm/min | 20~1800 | |
| Long & cross rapid feed | mm/min | 3500 | |
| Head | |||
| Travel (from table surface) | Vertical | mm | 0~670 |
| Horizontal | mm | 8~708 | |
| Vertical power feed | Change no. | No step | |
| Change range | mm/min | 10~900 | |
| Vertical rapid feed | mm/min | 1750 | |
| Spindle | |||
| Distance from spindle axis to guideway of column | mm | 610 | |
| Spindle revolution | Change No. | 12 steps | |
| Change range | r.p.m. | (60HZ)40-1600 (50HZ)35-1345 | |
| Taper of spindle | 7:24 | ||
| Motor | |||
| Spindle drive motor | kW | 7.5 | |
| Feed motor | kW (AC) | 2 | |
| Cooling pump motor | W | 550 | |
| Lubricant pump motor | W | 120 | |
| Necessary floor space | mm | 4925×2380 | |
| Machine net weight | Kg | 7300 | |
