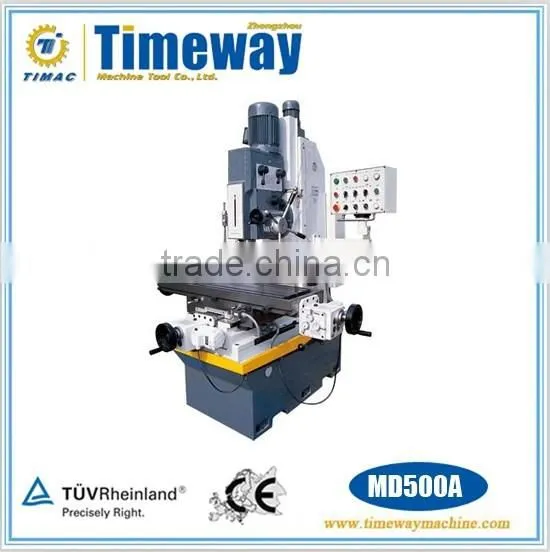

MD500A Milling and drilling machine
- 100 Set / Sets per Month
- China port
- T/T Credit Card PayPal
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial CNC Milling Machine, production, Machine Center for steel, stainless
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | TIMAC |
Model Number: | MD500A | Type: | Vertical | CNC or Not: | Normal |
Voltage: | Customer Requirement | Power(W): | 4kw | Dimension(L*W*H): | 1730x1730x2300 |
Weight: | 1750KG | Certification: | CE ISO | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
MD500A Milling and drilling machine
Key Features:
1. Rectangular table guideways with high stability
2. Automatic spindle feed
3. Motorized lifting and lowering of head-stock
4. Headstock swivels +/- 45 degrees.
5. Hardened and ground table surface.
Specification | Unit | MD500A |
Table size | mm | 1220x360 |
Table travel | mm | 600x360 |
Spindle taper |
| ISO40 |
Distance from spindle nose to table surface | mm | 120-620 |
Max.drilling dua. | mm | 50 |
Max.end milling width | mm | 125 |
Max.vertical milling dia. | mm | 32 |
Spindle speed range | r.p.m | 94-2256 (16steps) |
Automatic spindle feed speed | mm/rev | 0.1, 0.15, 0.3 |
Overall dimension | mm | 1730x1730x2300 |
Spindle motor power | kw | 1.5/2.4 |
G.W. | kg | 1750 |
Standard accessories
Mill chuck & collets,
draw bar,
machine vise,
horizontal mill arbor,
coolant system,
work lamp,
table elevating motor,
convergent panel,
wrench,
spanner,
middle sleeve,
elevating rotary handle,
oil collecting plate,
operation manual(English edition)
