Help CenterEconomical Gear Chamfering Machine With PLC (Gear Rounding Machine)
Related Products
-
Universal Horizontal Screw Rod MillerUS$ 10,000 - 100,000MOQ: 1 Set -
Heavy-Duty Gear Hobbing Machine for Max. Workpiece Diameter 63"US$ 10,000 - 100,000MOQ: 1 Set
-
Economical Semi-automatic Gear Hobbing Machine With High-efficiencyUS$ 10,000 - 100,000MOQ: 1 Set
-
Less No. of Teeth and Large Module Gear Hobbing MachineUS$ 10,000 - 200,000MOQ: 1 Set
-
2000mm Heavy-Duty Gear Hobbing Machine (Optional :Two-axis CNC)US$ 50,000 - 130,000MOQ: 1 Set

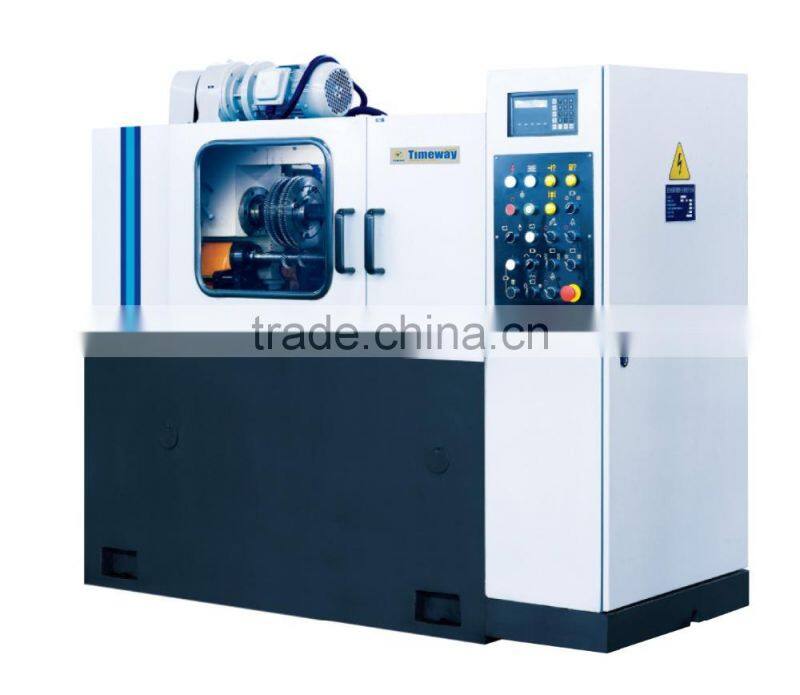

Economical Gear Chamfering Machine With PLC

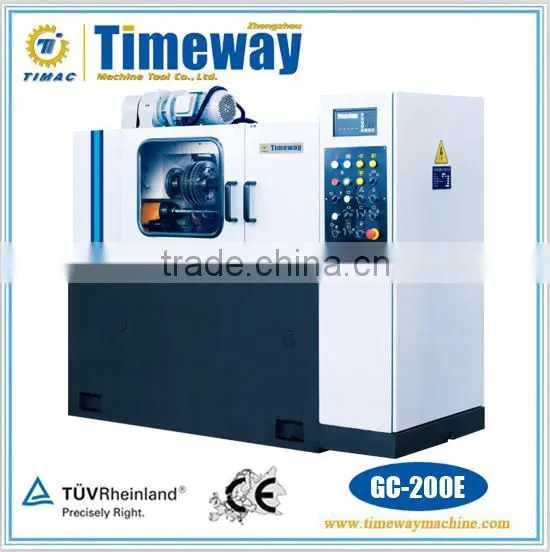

GC-200E
Machine Summary
Based on the principle of cold-extrusion method, the machine has two kinds of work modes, manual operation and auto cycle. The former is suited for adjusting the machine, and the later is suited for working. PLC FXIN-40MR-001 from MITSUBISHI, Japan, is adopted. All processes except manual loading and unloading are automatically controlled by program under auto cycle. Several working programs are preset for user to select for different type of workpieces.
This machine is suited for manufacturers such as automobile, tractor, machine tool, and gear production. It is designed for rounding tooth end of cylindrical disc-like spur and helical gears, shaft spur and helical gears, cluster gears, and sprockets in large-scale production.
Technical Parameters
| Specifications | Units | GC-200E |
| Max. workpiece dia. | mm | 200 |
| Max. module | mm | 6 |
| Max. rounding width | mm | 1 |
| Tool speed | rpm | 130-200 |
| Max. diameter of rounding tool | mm | Φ240 |
| Diameter of deburring tool | mm | 100-150 |
| Working time for one workpiece | s | 15 |
| Face width of individual workpiece | mm | 7-200 |
| Center distance from rounding tool to workpiece | mm | 120-210 |
| Center distance from deburring tool to workpiece | mm | 90-170 |
| Distance between the left and right centers | mm | 0-435 |
| Overall dimensions(L*W*H) | mm | 1970*1470*1760 |
| Main machine weight | kg | 2500 |
| No. of cases | 1cases in total |
