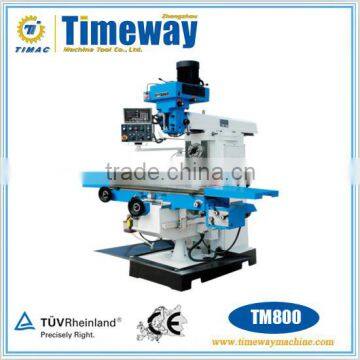

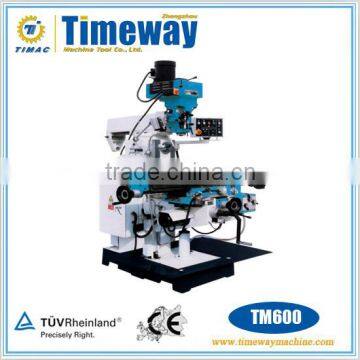

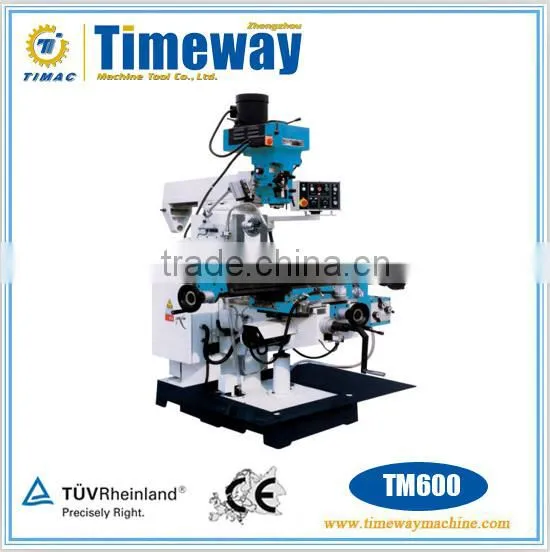

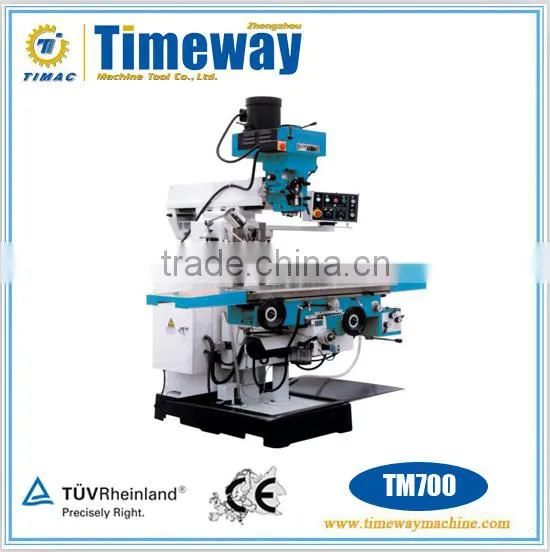

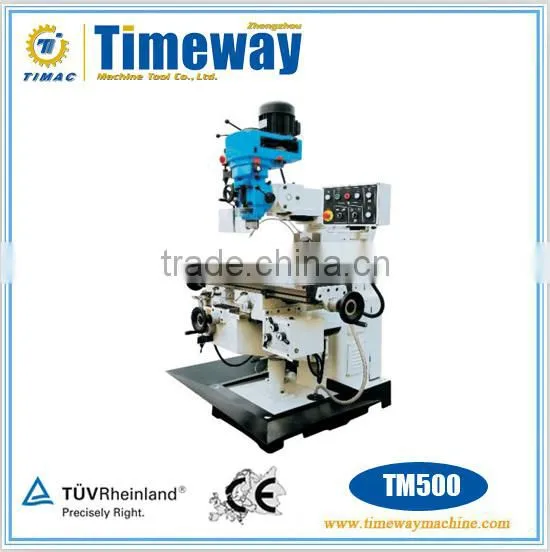

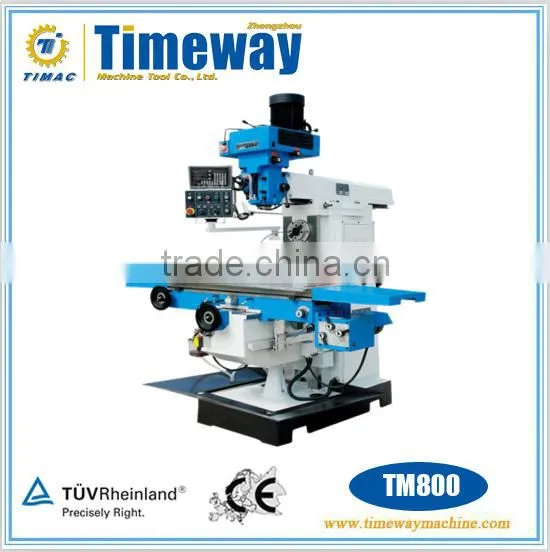

Universal Radial Arm Milling Machine

Name: Universal Radial Arm Milling Machine
Brand: TIMAC
SKU: 140796678
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

TM500, TM600, TM700, TM800

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number TM500, TM600, TM700, TM800

Type Universal

CNC or Not Normal

Voltage as customer's request

Power(W) 2.2(V), 2.2(H)

Dimension(L*W*H) 1700*1500*2150

Weight 1450/1600kg

Certification CE & ISO

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

H& V Head Turret Milling Machine For Sale Made in China

Product Description

Features:

1.Hardened and ground table surface;

2.Automatic feeds on X,Y axes, motoriaed rise and fall of table on Z axis;

3.Spindle sleeve can tap, qutomatic feed with 3 speeeds;

4.Headstock swivels ±90º from right to left, tilt ±45º from fore to back(TM500);

5.Drill depth stop with display of measurement;

6.Rectangular column guide way with high stability(TM600,TM700,TM800).

Parameter:

Specification	Unit	TM500	TM600	TM700	TM800
Spindle taper		ISO40(V),ISO40(H)			ISO40(V), ISO50(H)
Diameter of quill	mm	95	120
Distance from spindle to table	mm	90-370	90-490		135-535
Distance from horizontal spindle to table	mm	0-280	0-400		230
Distance from spindle to column	mm	200-700
Spindle speed	rpm	16steps80-5440(v), 12steps40-1300(H)	16steps70-7200(v), 12steps40-1300(H)		16steps70-7200(v), 12steps60-1800(H)
Spindle travel	mm	127	145
Quill feed	mm	(3steps)0.15, 0.08,0.25	(3steps)0.4, 0.08,0.15
Max. driliing capacity of auto-feeding	mm	10
Head swivel(from right to left)		±90º
Head tilt(fore to back)		±45º	------	-------	------
Table size	mm	1250×320			1250×360
Table travel (Longitudinal/Cross/Vertical)	mm	600/300/280	600/300/400	800/300/400	1000/320/400
X,Y axes feed speed	mm/min	22-555
X,Y axes rapid feed speed	mm/min	1080
Z axis rapid elevate speed	mm/min	590
Z axis rapid elevate motor power	w	750			1100
Max. weight of workpiece	kg	300			400
T-slot(No./width/distance)	mm	3/14/70			3/18/80
Main motor	kw	2.2(v),2.2(H)	3.75(v),2.2(H)		5.5(v),4(H)
X,Y axes auto-feeding drive motor	w	750
Coolant pump power	w	40			90
Overall dimension(L×W×H)	mm	1700×1500 ×2150	1780×1500×2270		2220×1790 ×2360
Net/Gross weight	kg	1450/1600	1550/1650	1650/1750	2450/2650
